4-10 WorkCentre C2424 Service Manual
Test Name Description Results
Test Data Capture Performs the built-in optical
test procedure to determine
if the system can capture
scan dats, the calibration
device, the lamp, optics and
electronics are functional.
OK or Fail.
Test Cal Motion Commands the DADF
subsystem to move the
calibration strip into the
scanning window.
OK or Fail.
Monitor Sensors Paper or no paper.
Exercise feed
motion
Exercises the transport
rollers in the DADF. Monitors
the paper present sensor.
You can manually excercise
the sensor flags and verify
the results.
OK or Fail.
There should not be media
present to perform this test.
Exercise Lamp Cycles the DADF lamp on,
then off. The lamp is then
left ON.
OK or Fail.
The lamp state must be
manually observed.
Reset Doc Handler This test power cycles the
IIT unit (MEP, Scanner,
DADF).
Ready or Not Ready
Main Menu --> Control Panel Menu
Test Name Description Results
Report FW Version Reports the current firmware version.
Monitor Buttons Reports each button
pressed.
Manually press each button.
Pressed and released.
Exercise Display Cycles the display to verify
backlight pixels and
operation.
All dark = No Backlight
All light = Backlight ON
Exercise LEDs Exercises each LED (Top to
bottom and left to right).
ON, Blink, or OFF.

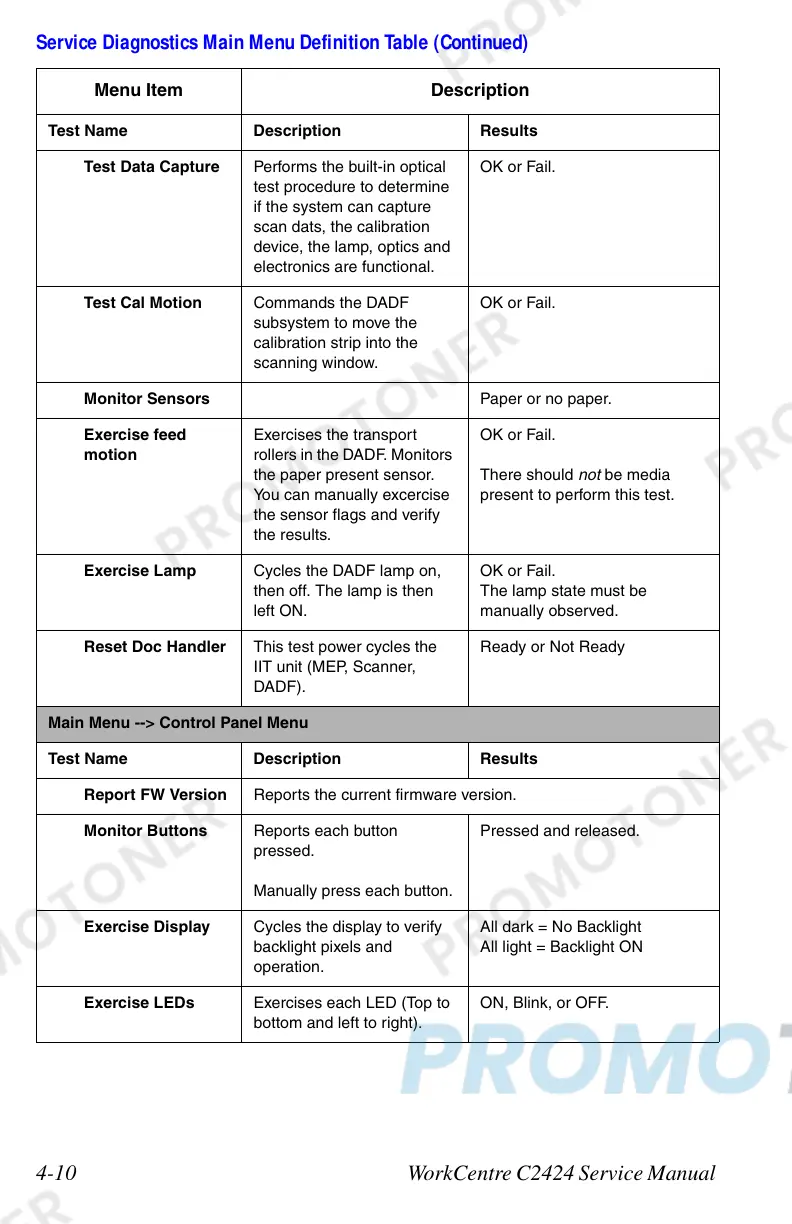

Service Diagnostics Main Menu Definition Table (Continued)
Menu Item Description
