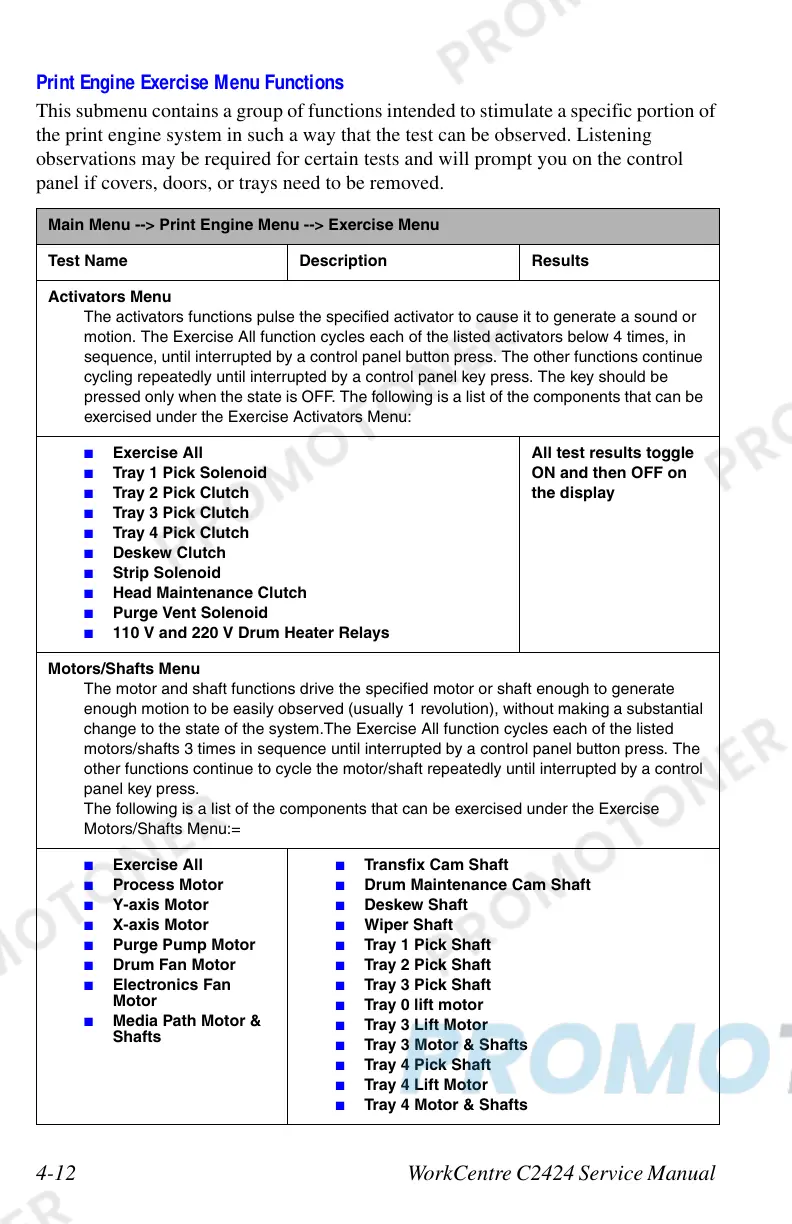

4-12 WorkCentre C2424 Service Manual
Print Engine Exercise Menu Functions
This submenu contains a group of functions intended to stimulate a specific portion of
the print engine system in such a way that the test can be observed. Listening
observations may be required for certain tests and will prompt you on the control
panel if covers, doors, or trays need to be removed.
Main Menu --> Print Engine Menu --> Exercise Menu
Test Name Description Results
Activators Menu
The activators functions pulse the specified activator to cause it to generate a sound or
motion. The Exercise All function cycles each of the listed activators below 4 times, in
sequence, until interrupted by a control panel button press. The other functions continue
cycling repeatedly until interrupted by a control panel key press. The key should be
pressed only when the state is OFF. The following is a list of the components that can be
exercised under the Exercise Activators Menu:
■ Exercise All
■ Tray 1 Pick Solenoid
■ Tray 2 Pick Clutch
■ Tray 3 Pick Clutch
■ Tray 4 Pick Clutch
■ Deskew Clutch
■ Strip Solenoid
■ Head Maintenance Clutch
■ Purge Vent Solenoid
■ 110 V and 220 V Drum Heater Relays
All test results toggle
ON and then OFF on
the display
Motors/Shafts Menu
The motor and shaft functions drive the specified motor or shaft enough to generate
enough motion to be easily observed (usually 1 revolution), without making a substantial
change to the state of the system.The Exercise All function cycles each of the listed
motors/shafts 3 times in sequence until interrupted by a control panel button press. The
other functions continue to cycle the motor/shaft repeatedly until interrupted by a control
panel key press.
The following is a list of the components that can be exercised under the Exercise
Motors/Shafts Menu:=
■ Exercise All
■ Process Motor
■ Y-axis Motor
■ X-axis Motor
■ Purge Pump Motor
■ Drum Fan Motor
■ Electronics Fan
Motor
■ Media Path Motor &
Shafts
■ Transfix Cam Shaft
■ Drum Maintenance Cam Shaft
■ Deskew Shaft
■ Wiper Shaft
■ Tray 1 Pick Shaft
■ Tray 2 Pick Shaft
■ Tray 3 Pick Shaft
■ Tray 0 lift motor
■ Tray 3 Lift Motor
■ Tray 3 Motor & Shafts
■ Tray 4 Pick Shaft
■ Tray 4 Lift Motor
■ Tray 4 Motor & Shafts
