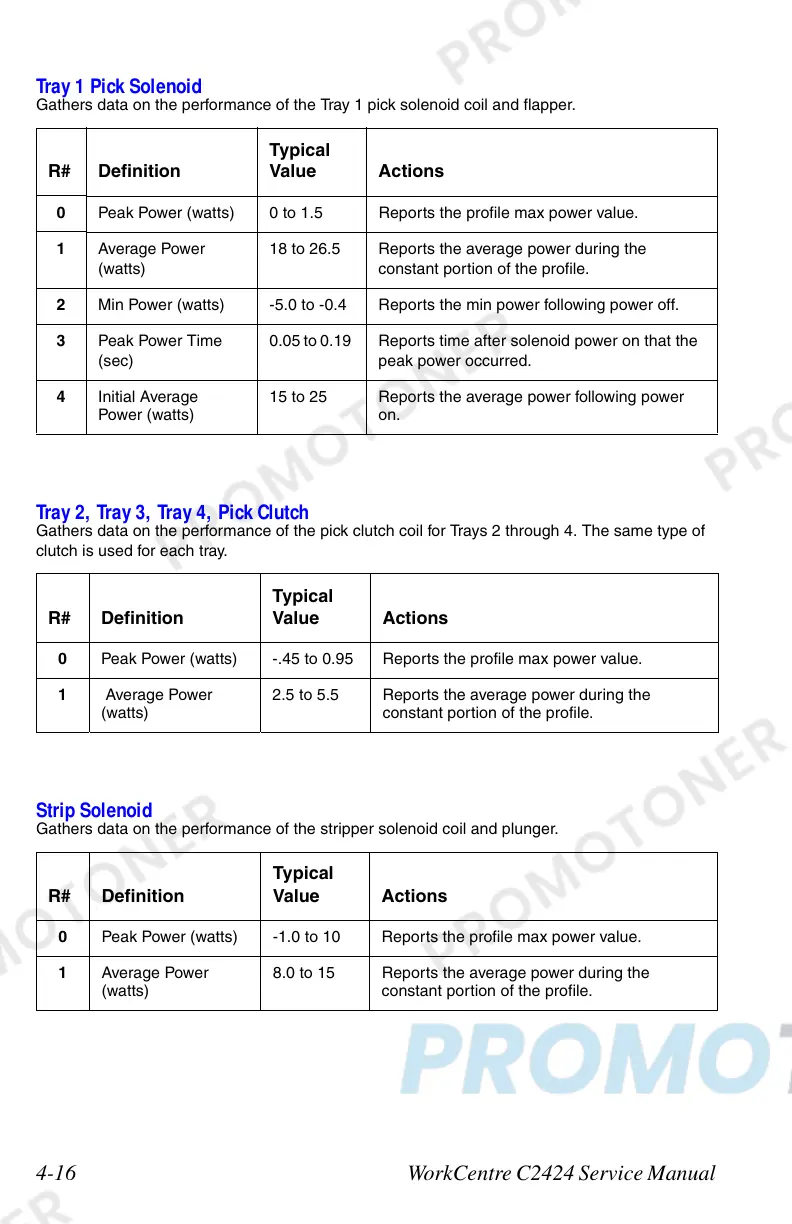

4-16 WorkCentre C2424 Service Manual
Tray 1 Pick Solenoid
Gathers data on the performance of the Tray 1 pick solenoid coil and flapper.
R# Definition
Typical
Value Actions
0 Peak Power (watts) 0 to 1.5 Reports the profile max power value.
1 Average Power
(watts)
18 to 26.5 Reports the average power during the
constant portion of the profile.
2 Min Power (watts) -5.0 to -0.4 Reports the min power following power off.
3 Peak Power Time
(sec)
0.05 to 0.19 Reports time after solenoid power on that the
peak power occurred.
4 Initial Average
Power (watts)
15 to 25 Reports the average power following power
on.
Tray 2, Tray 3, Tray 4, Pick Clutch
Gathers data on the performance of the pick clutch coil for Trays 2 through 4. The same type of
clutch is used for each tray.
R# Definition
Typical
Value Actions
0 Peak Power (watts) -.45 to 0.95 Reports the profile max power value.
1 Average Power
(watts)
2.5 to 5.5 Reports the average power during the
constant portion of the profile.
Strip Solenoid
Gathers data on the performance of the stripper solenoid coil and plunger.
R# Definition
Typical
Value Actions
0 Peak Power (watts) -1.0 to 10 Reports the profile max power value.
1 Average Power
(watts)
8.0 to 15 Reports the average power during the
constant portion of the profile.
