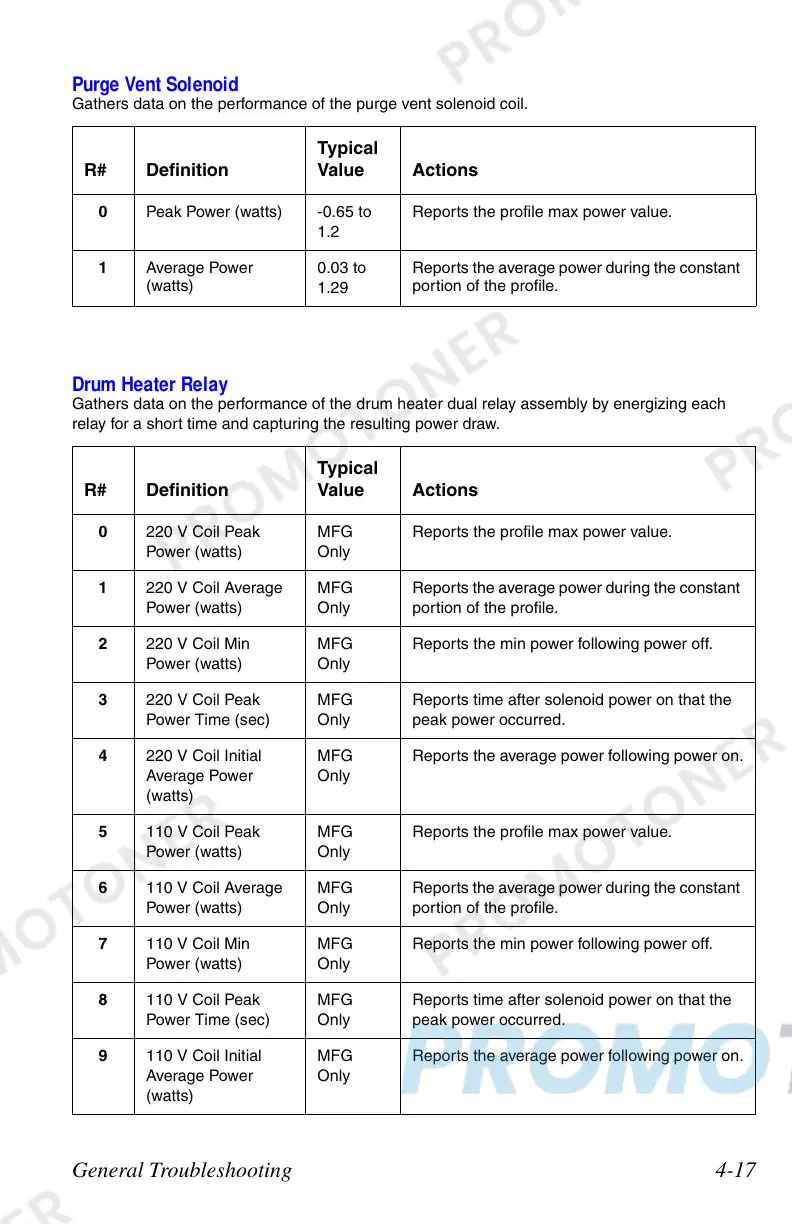

General Troubleshooting 4-17
Purge Vent Solenoid
Gathers data on the performance of the purge vent solenoid coil.
R# Definition
Typical
Value Actions
0 Peak Power (watts) -0.65 to
1.2
Reports the profile max power value.
1 Average Power
(watts)
0.03 to
1.29
Reports the average power during the constant
portion of the profile.
Drum Heater Relay
Gathers data on the performance of the drum heater dual relay assembly by energizing each
relay for a short time and capturing the resulting power draw.
R# Definition
Typical
Value Actions
0 220 V Coil Peak
Power (watts)
MFG
Only
Reports the profile max power value.
1 220 V Coil Average
Power (watts)
MFG
Only
Reports the average power during the constant
portion of the profile.
2 220 V Coil Min
Power (watts)
MFG
Only
Reports the min power following power off.
3 220 V Coil Peak
Power Time (sec)
MFG
Only
Reports time after solenoid power on that the
peak power occurred.
4 220 V Coil Initial
Average Power
(watts)
MFG
Only
Reports the average power following power on.
5 110 V Coil Peak
Power (watts)
MFG
Only
Reports the profile max power value.
6 110 V Coil Average
Power (watts)
MFG
Only
Reports the average power during the constant
portion of the profile.
7 110 V Coil Min
Power (watts)
MFG
Only
Reports the min power following power off.
8 110 V Coil Peak
Power Time (sec)
MFG
Only
Reports time after solenoid power on that the
peak power occurred.
9 110 V Coil Initial
Average Power
(watts)
MFG
Only
Reports the average power following power on.
