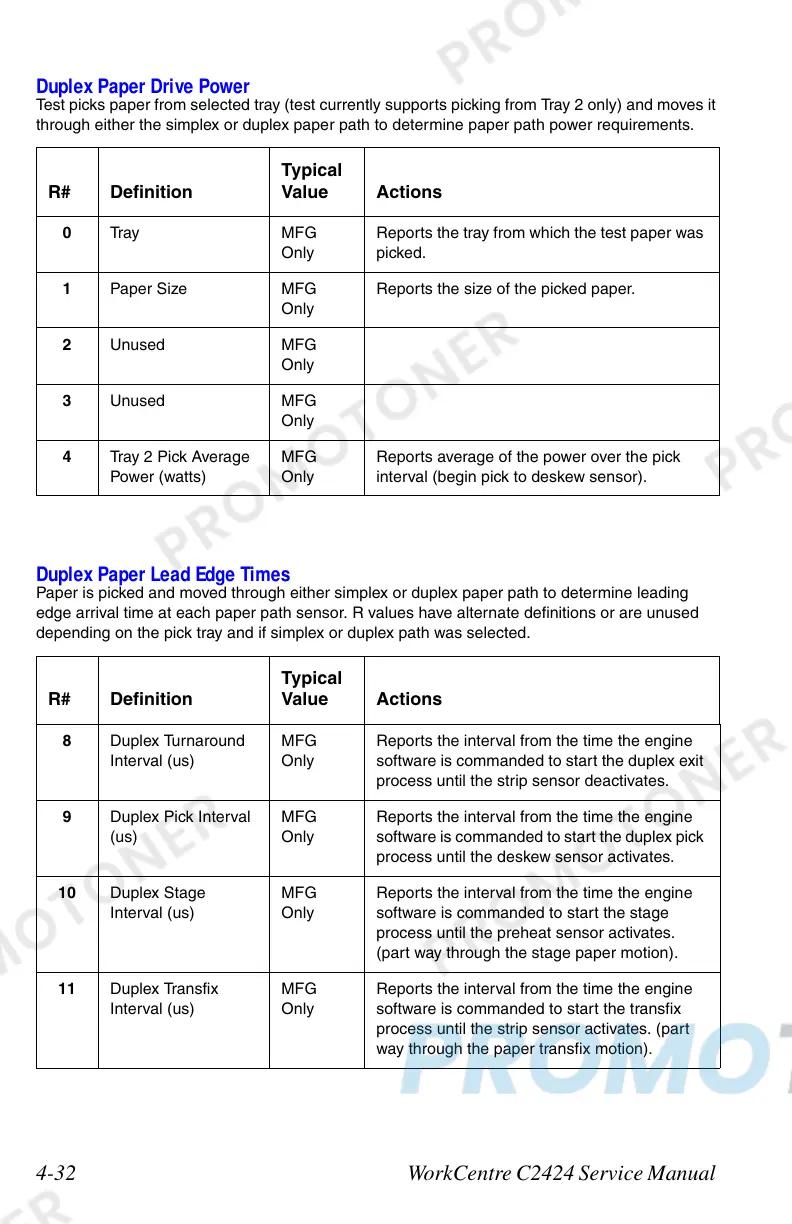

4-32 WorkCentre C2424 Service Manual
Duplex Paper Drive Power
Test picks paper from selected tray (test currently supports picking from Tray 2 only) and moves it
through either the simplex or duplex paper path to determine paper path power requirements.
R# Definition
Typical
Value Actions
0 Tray MF G
Only
Reports the tray from which the test paper was
picked.
1 Paper Size MFG
Only
Reports the size of the picked paper.
2 Unused MFG
Only
3 Unused MFG
Only
4 Tray 2 Pick Average
Power (watts)
MFG
Only
Reports average of the power over the pick
interval (begin pick to deskew sensor).
Duplex Paper Lead Edge Times
Paper is picked and moved through either simplex or duplex paper path to determine leading
edge arrival time at each paper path sensor. R values have alternate definitions or are unused
depending on the pick tray and if simplex or duplex path was selected.
R# Definition
Typical
Value Actions
8 Duplex Turnaround
Interval (us)
MFG
Only
Reports the interval from the time the engine
software is commanded to start the duplex exit
process until the strip sensor deactivates.
9 Duplex Pick Interval
(us)
MFG
Only
Reports the interval from the time the engine
software is commanded to start the duplex pick
process until the deskew sensor activates.
10 Duplex Stage
Interval (us)
MFG
Only
Reports the interval from the time the engine
software is commanded to start the stage
process until the preheat sensor activates.
(part way through the stage paper motion).
11 Duplex Transfix
Interval (us)
MFG
Only
Reports the interval from the time the engine
software is commanded to start the transfix
process until the strip sensor activates. (part
way through the paper transfix motion).
