General Troubleshooting 4-31
1 Paper Size MFG
Only
Reports size of the picked paper.
Tray 4 Pick
2 Tray 4 Pick Bounce
Interval (us)
MFG
Only
Reports the interval during which the Tray 4
Pick sensor bounces following the passage of
the paper trailing edge.
Tray 3 Pick
3 Tray 3 Pick Bounce
Interval (us)
MFG
Only
Reports the interval during which the Tray 3
pick sensor bounces following the passage of
the paper trailing edge.
Tray 2 Pick
2 unused MFG
Only
3 unused MFG
Only
Tray 1 Pick
2 unused MFG
Only
3 unused MFG
Only
Common
4 Deskew Bounce
Interval (us)
MFG
Only
Reports the interval during which the Deskew
sensor bounces following the passage of the
paper trailing edge.
5 Preheat Bounce
Interval (us)
MFG
Only
Reports the interval during which the Preheat
sensor bounces following the passage of the
paper trailing edge.
6 Strip Bounce
Interval (us)
MFG
Only
Reports the interval during which the Strip
sensor bounces following the passage of the
paper trailing edge.
7 Exit Bounce Interval
(us)
MFG
Only
Reports the interval during which the exit
sensor bounces following the passage of the
paper trailing edge.

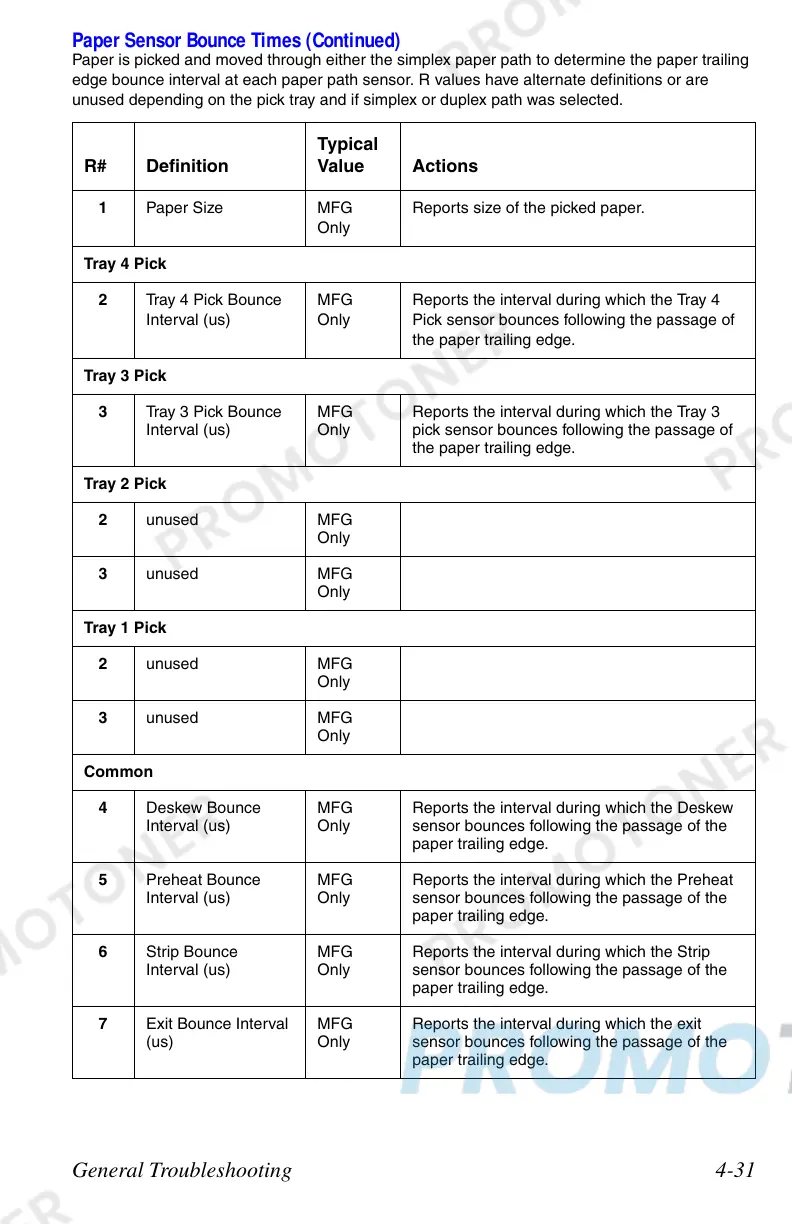

Paper Sensor Bounce Times (Continued)
Paper is picked and moved through either the simplex paper path to determine the paper trailing
edge bounce interval at each paper path sensor. R values have alternate definitions or are
unused depending on the pick tray and if simplex or duplex path was selected.
R# Definition
Typical
Value Actions
