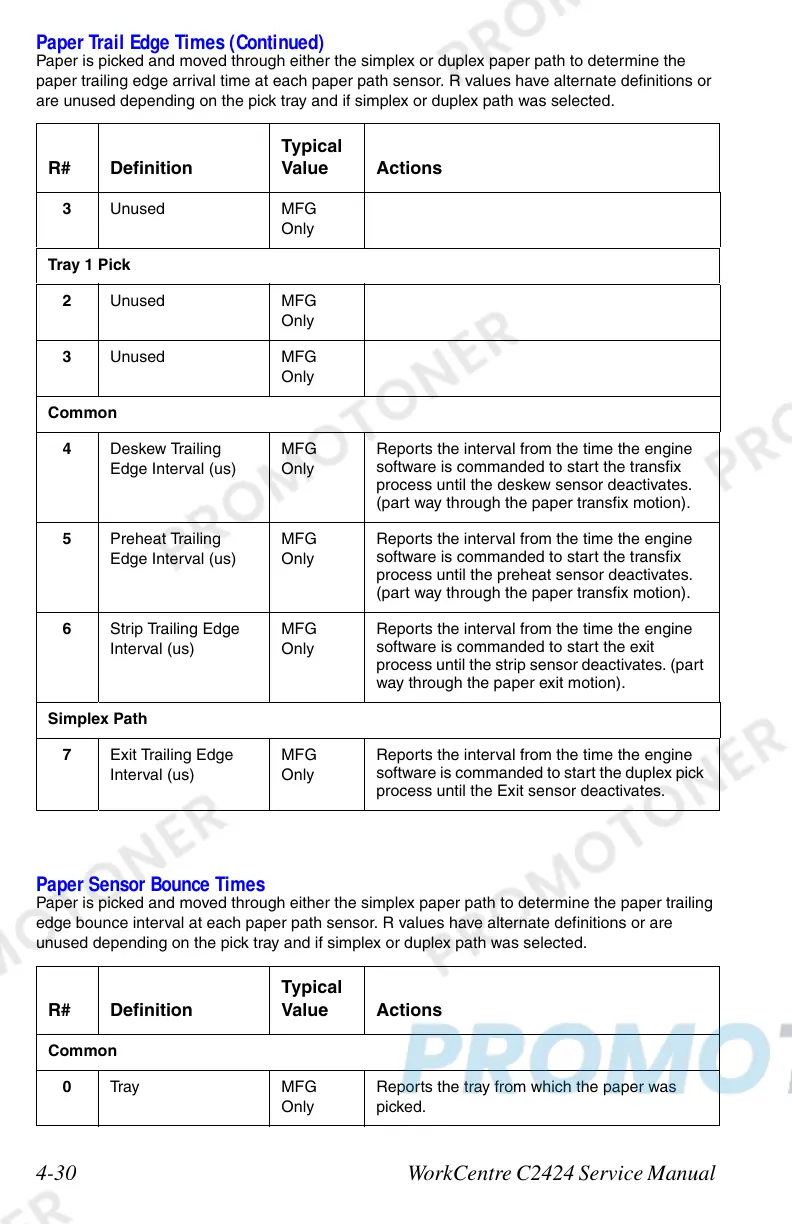

4-30 WorkCentre C2424 Service Manual
3 Unused MFG
Only
Tray 1 Pick
2 Unused MFG
Only
3 Unused MFG
Only
Common
4 Deskew Trailing
Edge Interval (us)
MFG
Only
Reports the interval from the time the engine
software is commanded to start the transfix
process until the deskew sensor deactivates.
(part way through the paper transfix motion).
5 Preheat Trailing
Edge Interval (us)
MFG
Only
Reports the interval from the time the engine
software is commanded to start the transfix
process until the preheat sensor deactivates.
(part way through the paper transfix motion).
6 Strip Trailing Edge
Interval (us)
MFG
Only
Reports the interval from the time the engine
software is commanded to start the exit
process until the strip sensor deactivates. (part
way through the paper exit motion).
Simplex Path
7 Exit Trailing Edge
Interval (us)
MFG
Only
Reports the interval from the time the engine
software is commanded to start the duplex pick
process until the Exit sensor deactivates.
Paper Sensor Bounce Times
Paper is picked and moved through either the simplex paper path to determine the paper trailing
edge bounce interval at each paper path sensor. R values have alternate definitions or are
unused depending on the pick tray and if simplex or duplex path was selected.
R# Definition
Typical
Value Actions
Common
0 Tray MF G
Only
Reports the tray from which the paper was
picked.
Paper Trail Edge Times (Continued)
Paper is picked and moved through either the simplex or duplex paper path to determine the
paper trailing edge arrival time at each paper path sensor. R values have alternate definitions or
are unused depending on the pick tray and if simplex or duplex path was selected.
R# Definition
Typical
Value Actions
