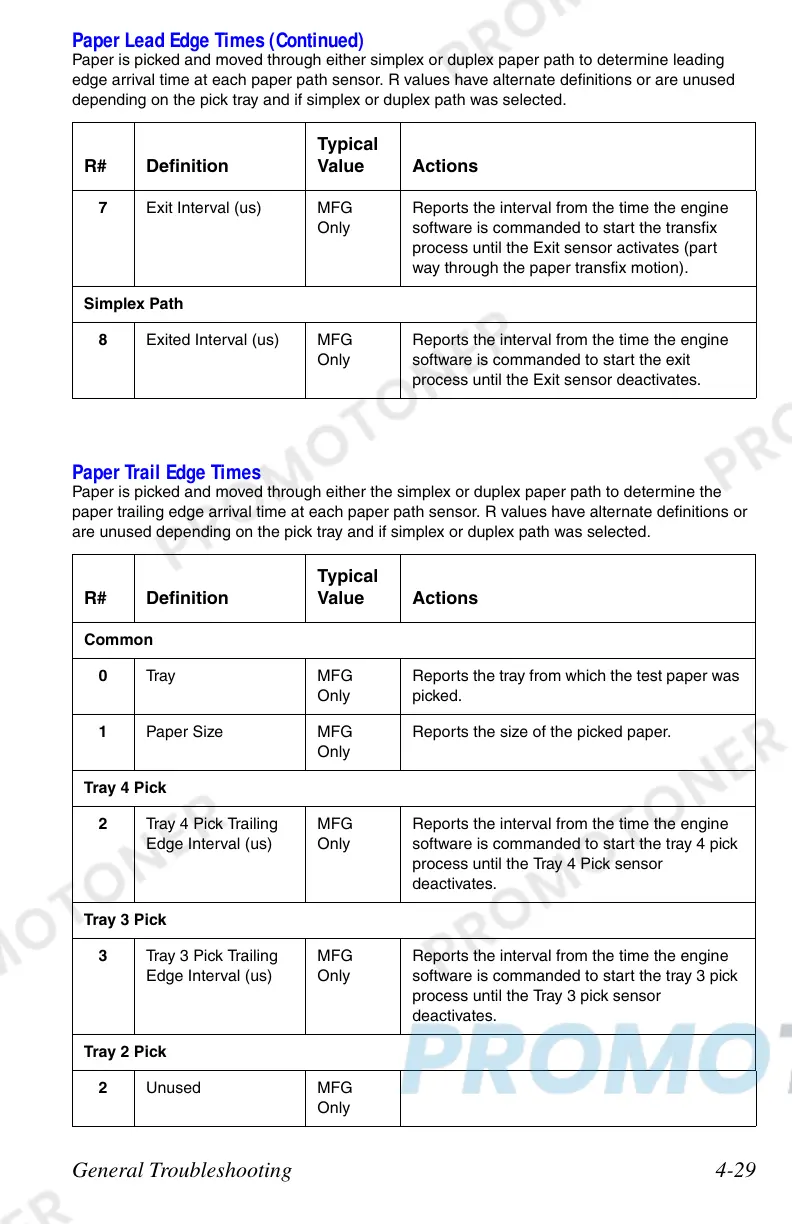

General Troubleshooting 4-29
7 Exit Interval (us) MFG
Only
Reports the interval from the time the engine
software is commanded to start the transfix
process until the Exit sensor activates (part
way through the paper transfix motion).
Simplex Path
8 Exited Interval (us) MFG
Only
Reports the interval from the time the engine
software is commanded to start the exit
process until the Exit sensor deactivates.
Paper Trail Edge Times
Paper is picked and moved through either the simplex or duplex paper path to determine the
paper trailing edge arrival time at each paper path sensor. R values have alternate definitions or
are unused depending on the pick tray and if simplex or duplex path was selected.
R# Definition
Typical
Value Actions
Common
0 Tray MF G
Only
Reports the tray from which the test paper was
picked.
1 Paper Size MFG
Only
Reports the size of the picked paper.
Tray 4 Pick
2 Tray 4 Pick Trailing
Edge Interval (us)
MFG
Only
Reports the interval from the time the engine
software is commanded to start the tray 4 pick
process until the Tray 4 Pick sensor
deactivates.
Tray 3 Pick
3 Tray 3 Pick Trailing
Edge Interval (us)
MFG
Only
Reports the interval from the time the engine
software is commanded to start the tray 3 pick
process until the Tray 3 pick sensor
deactivates.
Tray 2 Pick
2 Unused MFG
Only
Paper Lead Edge Times (Continued)
Paper is picked and moved through either simplex or duplex paper path to determine leading
edge arrival time at each paper path sensor. R values have alternate definitions or are unused
depending on the pick tray and if simplex or duplex path was selected.
R# Definition
Typical
Value Actions
To Next Page
