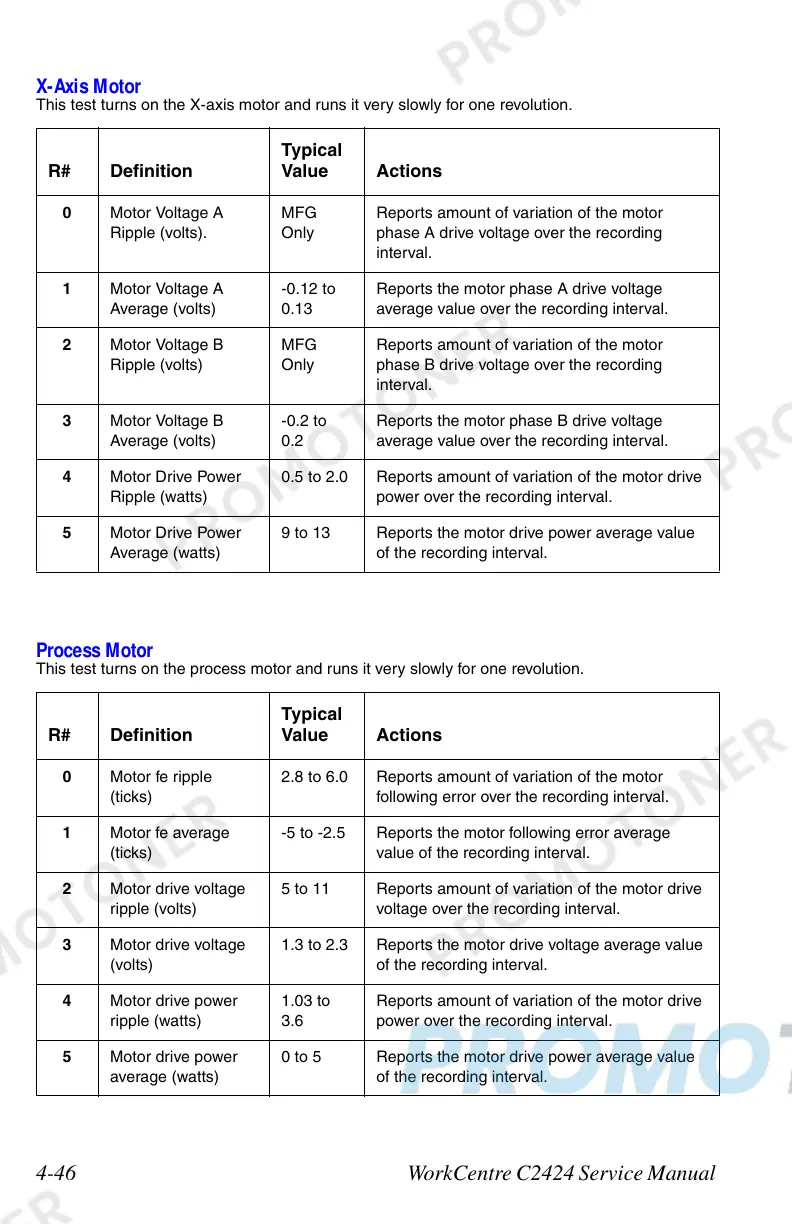

4-46 WorkCentre C2424 Service Manual
X-Axis Motor
This test turns on the X-axis motor and runs it very slowly for one revolution.
R# Definition
Typical
Value Actions
0 Motor Voltage A
Ripple (volts).
MFG
Only
Reports amount of variation of the motor
phase A drive voltage over the recording
interval.
1 Motor Voltage A
Average (volts)
-0.12 to
0.13
Reports the motor phase A drive voltage
average value over the recording interval.
2 Motor Voltage B
Ripple (volts)
MFG
Only
Reports amount of variation of the motor
phase B drive voltage over the recording
interval.
3 Motor Voltage B
Average (volts)
-0.2 to
0.2
Reports the motor phase B drive voltage
average value over the recording interval.
4 Motor Drive Power
Ripple (watts)
0.5 to 2.0 Reports amount of variation of the motor drive
power over the recording interval.
5 Motor Drive Power
Average (watts)
9 to 13 Reports the motor drive power average value
of the recording interval.
Process Motor
This test turns on the process motor and runs it very slowly for one revolution.
R# Definition
Typical
Value Actions
0 Motor fe ripple
(ticks)
2.8 to 6.0 Reports amount of variation of the motor
following error over the recording interval.
1 Motor fe average
(ticks)
-5 to -2.5 Reports the motor following error average
value of the recording interval.
2 Motor drive voltage
ripple (volts)
5 to 11 Reports amount of variation of the motor drive
voltage over the recording interval.
3 Motor drive voltage
(volts)
1.3 to 2.3 Reports the motor drive voltage average value
of the recording interval.
4 Motor drive power
ripple (watts)
1.03 to
3.6
Reports amount of variation of the motor drive
power over the recording interval.
5 Motor drive power
average (watts)
0 to 5 Reports the motor drive power average value
of the recording interval.
