General Troubleshooting 4-47

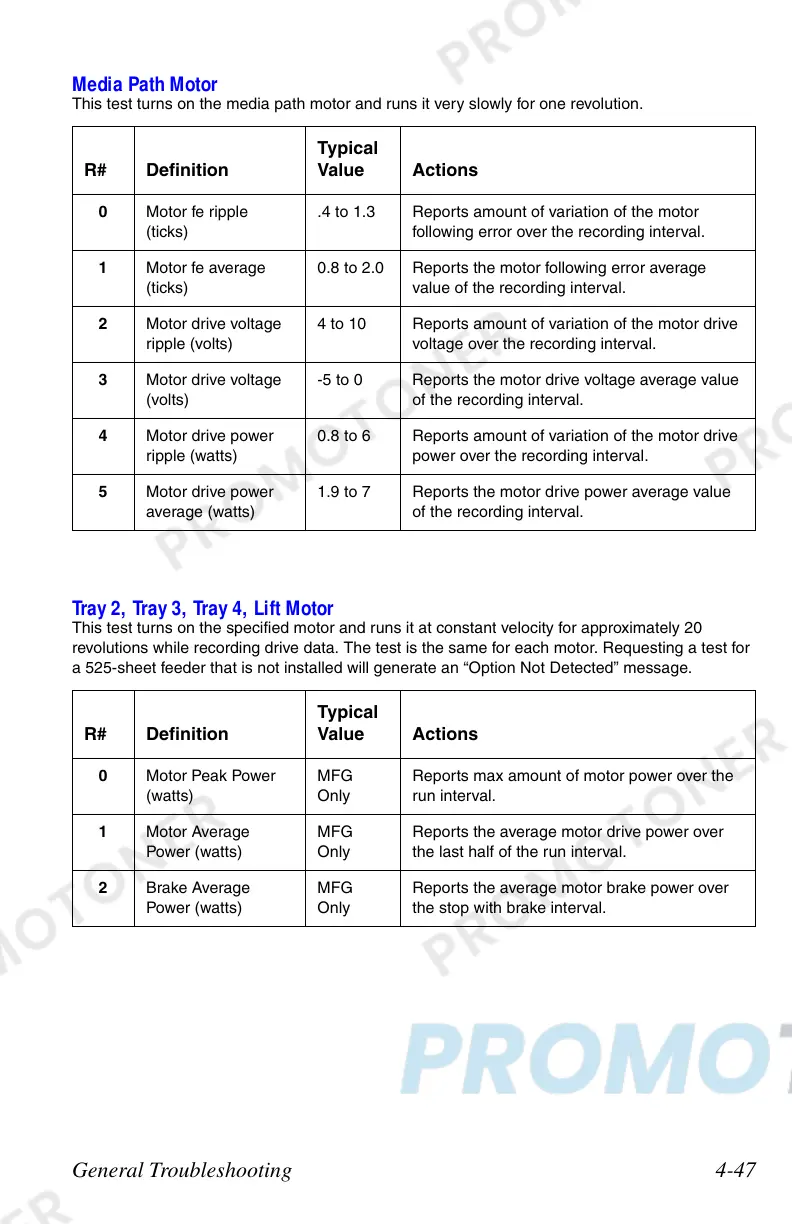

Media Path Motor
This test turns on the media path motor and runs it very slowly for one revolution.
R# Definition
Typical
Value Actions
0 Motor fe ripple
(ticks)
.4 to 1.3 Reports amount of variation of the motor
following error over the recording interval.
1 Motor fe average
(ticks)
0.8 to 2.0 Reports the motor following error average
value of the recording interval.
2 Motor drive voltage
ripple (volts)
4 to 10 Reports amount of variation of the motor drive
voltage over the recording interval.
3 Motor drive voltage
(volts)
-5 to 0 Reports the motor drive voltage average value
of the recording interval.
4 Motor drive power
ripple (watts)
0.8 to 6 Reports amount of variation of the motor drive
power over the recording interval.
5 Motor drive power
average (watts)
1.9 to 7 Reports the motor drive power average value
of the recording interval.
Tray 2, Tray 3, Tray 4, Lift Motor
This test turns on the specified motor and runs it at constant velocity for approximately 20
revolutions while recording drive data. The test is the same for each motor. Requesting a test for
a 525-sheet feeder that is not installed will generate an “Option Not Detected” message.
R# Definition
Typical
Value Actions
0 Motor Peak Power
(watts)
MFG
Only
Reports max amount of motor power over the
run interval.
1 Motor Average
Power (watts)
MFG
Only
Reports the average motor drive power over
the last half of the run interval.
2 Brake Average
Power (watts)
MFG
Only
Reports the average motor brake power over
the stop with brake interval.
