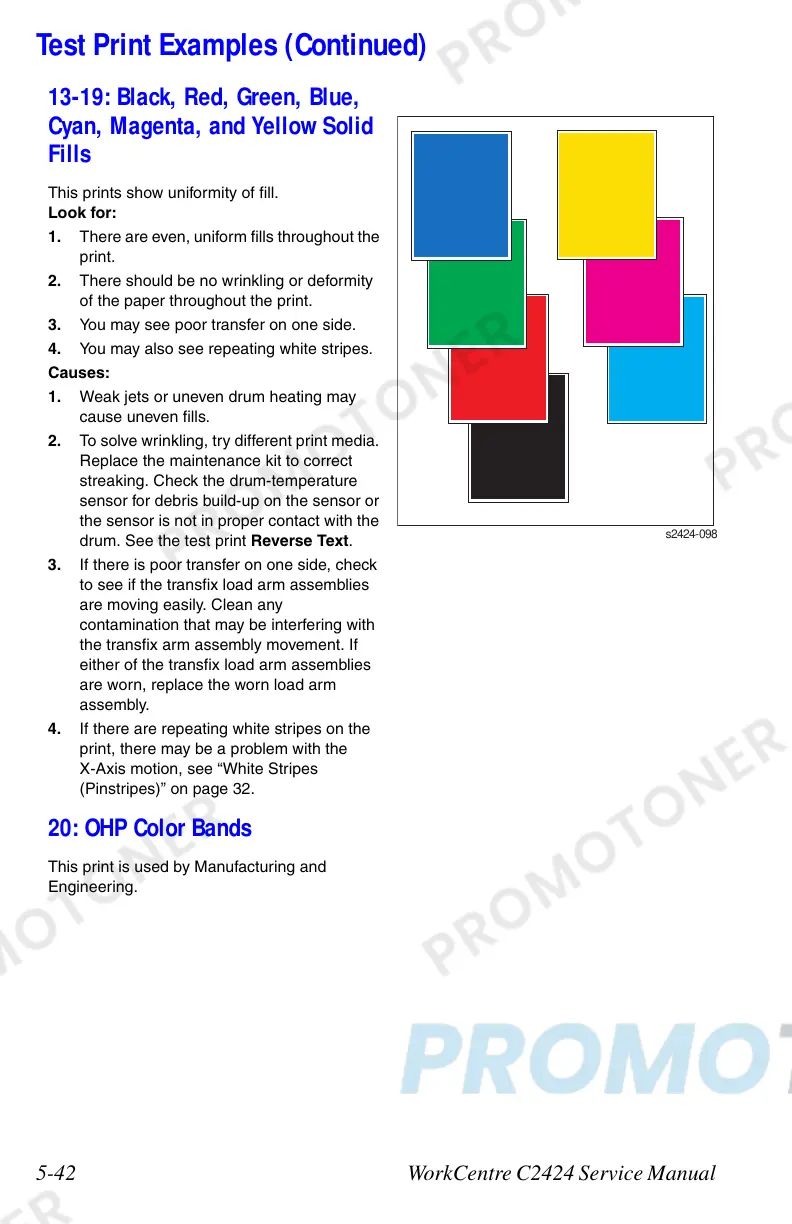

5-42 WorkCentre C2424 Service Manual
13-19: Black, Red, Green, Blue,
Cyan, Magenta, and Yellow Solid
Fills
This prints show uniformity of fill.
Look for:
1. There are even, uniform fills throughout the
print.
2. There should be no wrinkling or deformity
of the paper throughout the print.
3. You may see poor transfer on one side.
4. You may also see repeating white stripes.
Causes:
1. Weak jets or uneven drum heating may
cause uneven fills.
2. To solve wrinkling, try different print media.
Replace the maintenance kit to correct
streaking. Check the drum-temperature
sensor for debris build-up on the sensor or
the sensor is not in proper contact with the
drum. See the test print Reverse Text.
3. If there is poor transfer on one side, check
to see if the transfix load arm assemblies
are moving easily. Clean any
contamination that may be interfering with
the transfix arm assembly movement. If
either of the transfix load arm assemblies
are worn, replace the worn load arm
assembly.
4. If there are repeating white stripes on the
print, there may be a problem with the
X-Axis motion, see “White Stripes
(Pinstripes)” on page 32.
20: OHP Color Bands
This print is used by Manufacturing and
Engineering.
Test Print Examples (Continued)
