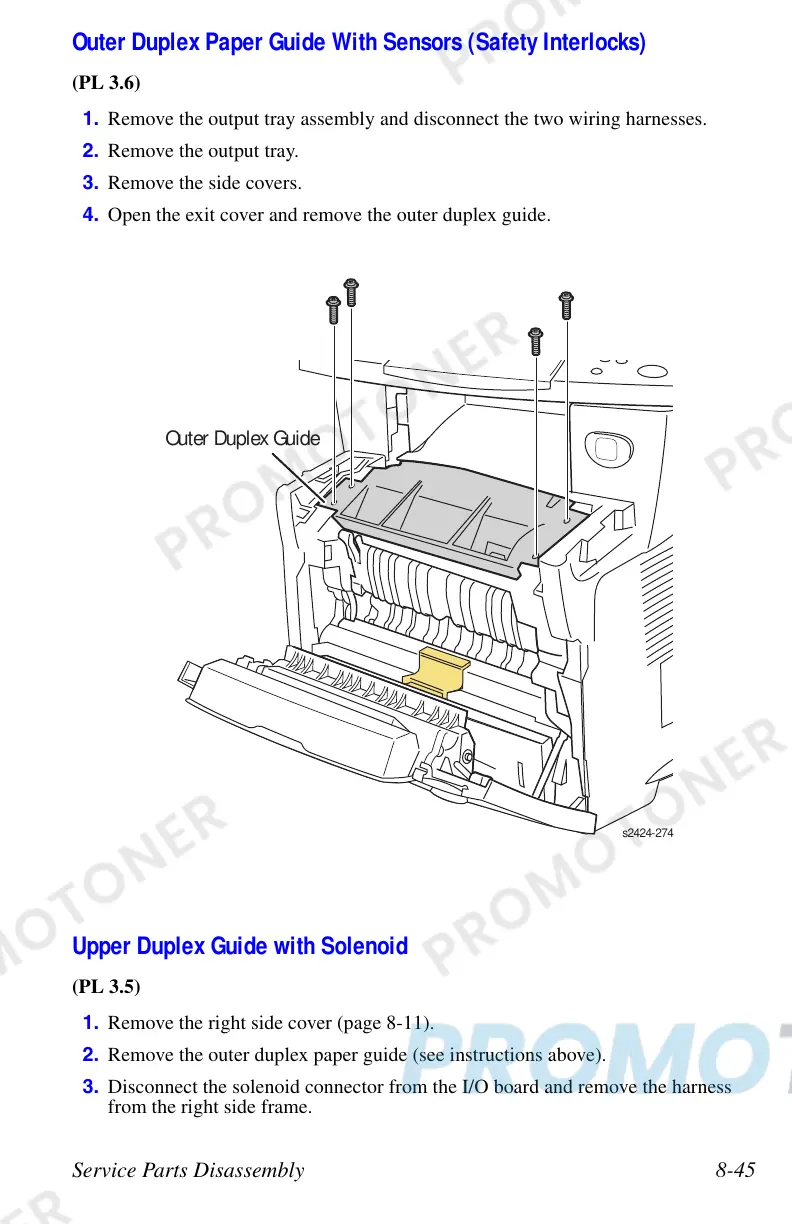

Service Parts Disassembly 8-45
Outer Duplex Paper Guide With Sensors (Safety Interlocks)
(PL 3.6)
1. Remove the output tray assembly and disconnect the two wiring harnesses.
2. Remove the output tray.
3. Remove the side covers.
4. Open the exit cover and remove the outer duplex guide.
Upper Duplex Guide with Solenoid
(PL 3.5)
1. Remove the right side cover (page 8-11).
2. Remove the outer duplex paper guide (see instructions above).
3. Disconnect the solenoid connector from the I/O board and remove the harness
from the right side frame.
s2424-2
Outer Duplex Guide
To Next Page
