8-46 WorkCentre C2424 Service Manual

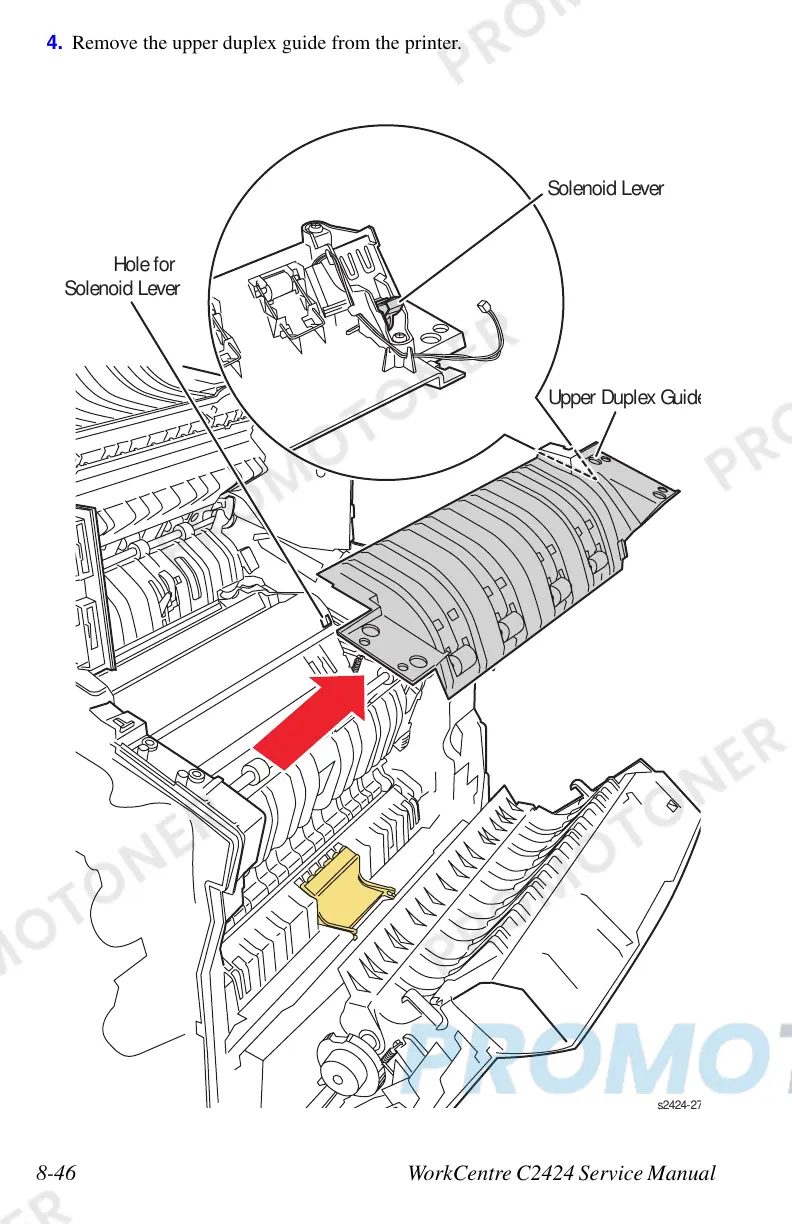

4. Remove the upper duplex guide from the printer.

s2424-

275

Hole for

olenoid Lever

Solenoid Lever

Upper Duplex Gu

ide
