J180 (26) Printhead driver ECB Main Processor ECB J130 (26)
J1AC Power Supply ECB Inkload ECB J2 (5)
J2 (2) Relay ECB Power Supply ECB J4AC (4)
J2 (5) Inkload ECB Power Supply ECB J1AC
J210 (30) Printhead driver ECB Wave Amp ECB J630 (30)
J240 (30) Printhead driver ECB Wave Amp ECB J670 (30)
J250 (2) I/O ECB Strip solenoid (2)
J280 (2) Power Control ECB Y-axis motor (2)
J2AC (7) Power Supply ECB Printhead Res/Jetstack
heaters
J380 (1) Main ECB Transport motor (positive)
J390 (4) Hard Drive ECB Power Control ECB J820 (4)
J390 (1) Main ECB Transport motor (negative)
J390 (34) Power Control ECB Main ECB (8)
Main tray elevator plate (2)
Main tray pick clutch (2)
MPT Solenoid (3)
Deskew Clutch (2)
Purge pump (6)
Main fan (2)
Media motor and encoder (7)
Media path motor fan (2)
J400 (8)
J3AC (3) Power Supply ECB Auxiliary
J400 (14) I/O ECB Main tray paper opto (3)
Main paper height opto (3)
Pre-heater ECB 6)
Relay ECB (2)
J860
J1
J400 (16) Power Control ECB (16) X-axis motor (4)
Drun Fan (2)
Y-axis pos encoder (4)
Process motor w/encoder (6)
J480 (30) Power Control ECB Power Supply ECB JDC1
J4AC (4) Power Supply ECB Relay ECB J2 (2)
J580 (80) Hard Drive ECB Main Processor ECB J860 (80)
J600 (6) I/O ECB Add paper tray (6)

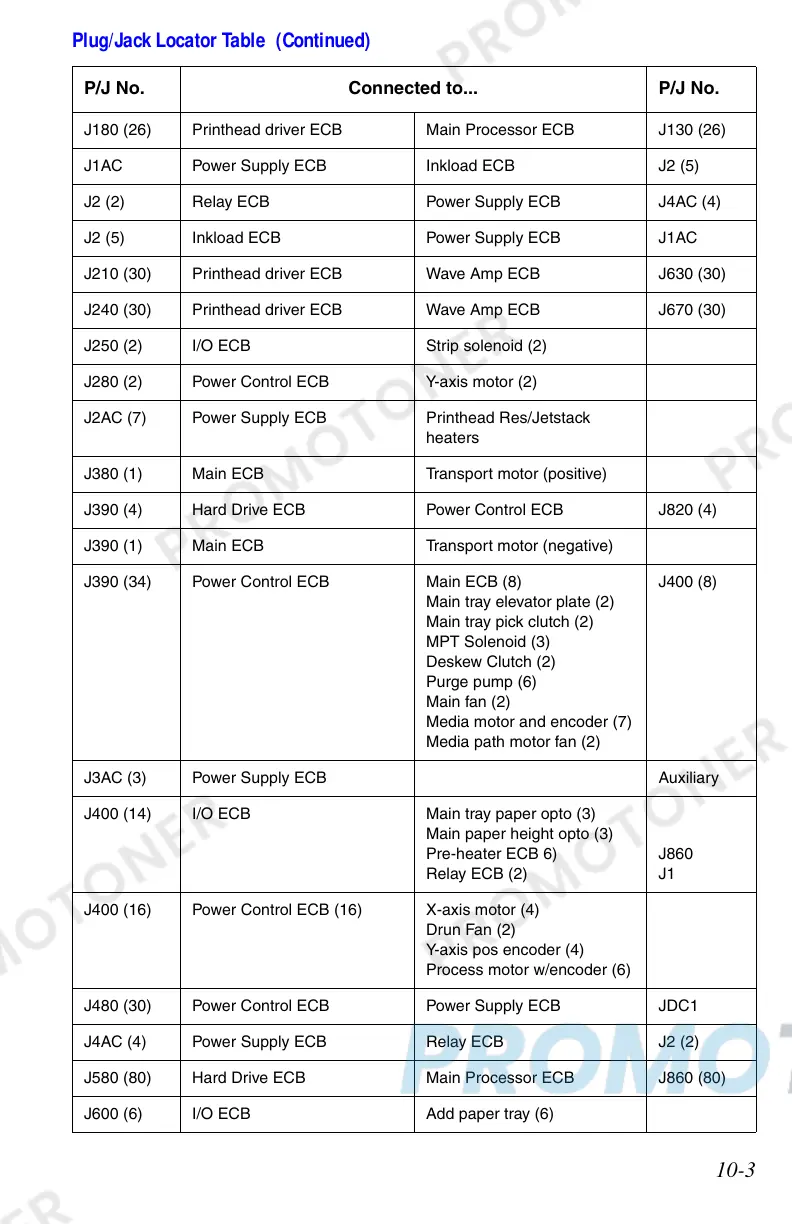

Plug/Jack Locator Table (Continued)
P/J No. Connected to... P/J No.
