10-4 WorkCentre C2424 Service Manual
J610 (5) I/O ECB Media Present (MPT)
sensors (5)
J630 (30) Wave Amp ECB Printhead driver ECB J210 (30)
J670 (30) Wave Amp ECB Printhead driver ECB J240 (30)
J680 (8) I/O ECB Strip/Exit Bib opto (6)
Power HM clutch (2
J790 (14) Power Control ECB Wave Amp ECB J0800 (14)
J800 Ethernet RCV/XMT ribbon
cable
I/O ECB J840
J720 (2) Pre-Heat ECB Paper pre-heater
J820 (4) Power Control ECB Hard Drive ECB J390
J840 I/O ECB Ethernet RCV/XMT ribbon
cable
J800
J860 Pre-heat ECB I/O ECB J400
J860 (2) I/O ECB Maintenance kit missing
sensor (2)
J860 (80) Main Processor ECB Hard Drive ECB J580 (80)
J870 (2) I/O ECB Drum print thermister(2)
J910 (10) I/O ECB Inkload ECB J1 (10)
JDC1 Power Supply ECB Power Control ECB J480 (30)

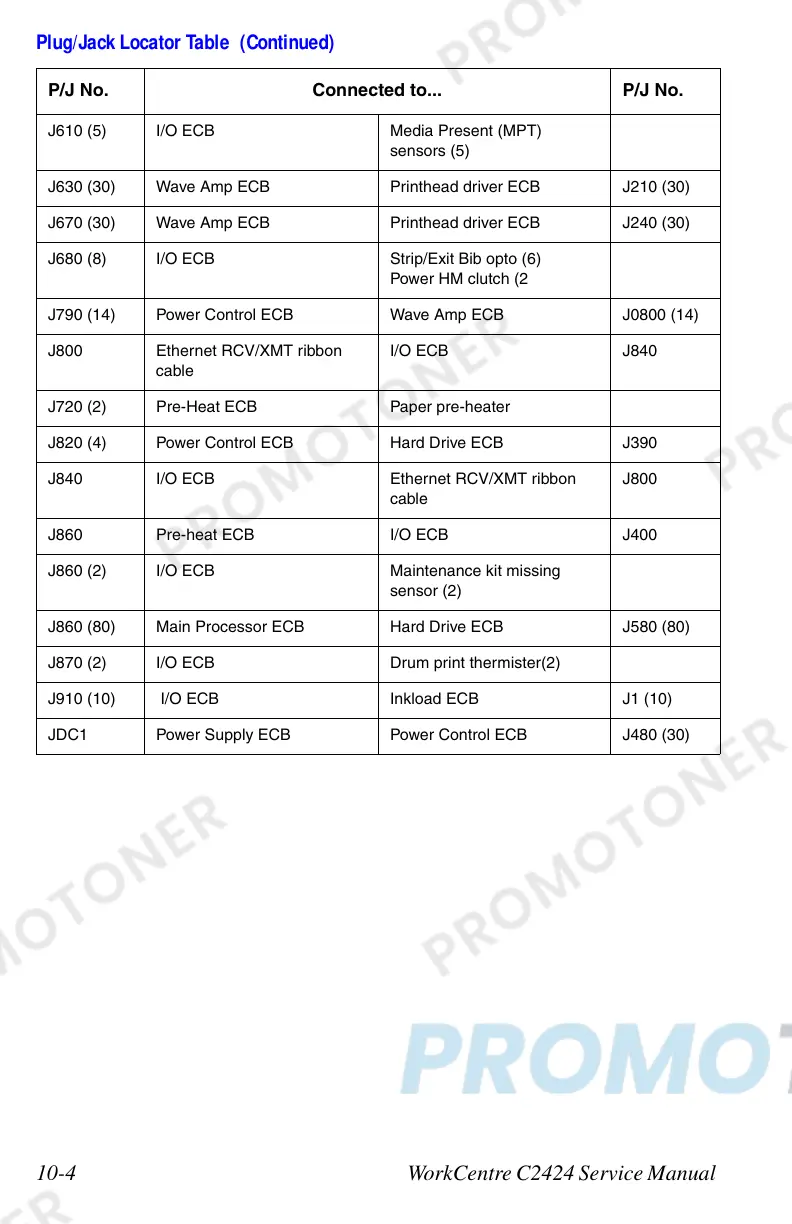

Plug/Jack Locator Table (Continued)
P/J No. Connected to... P/J No.
