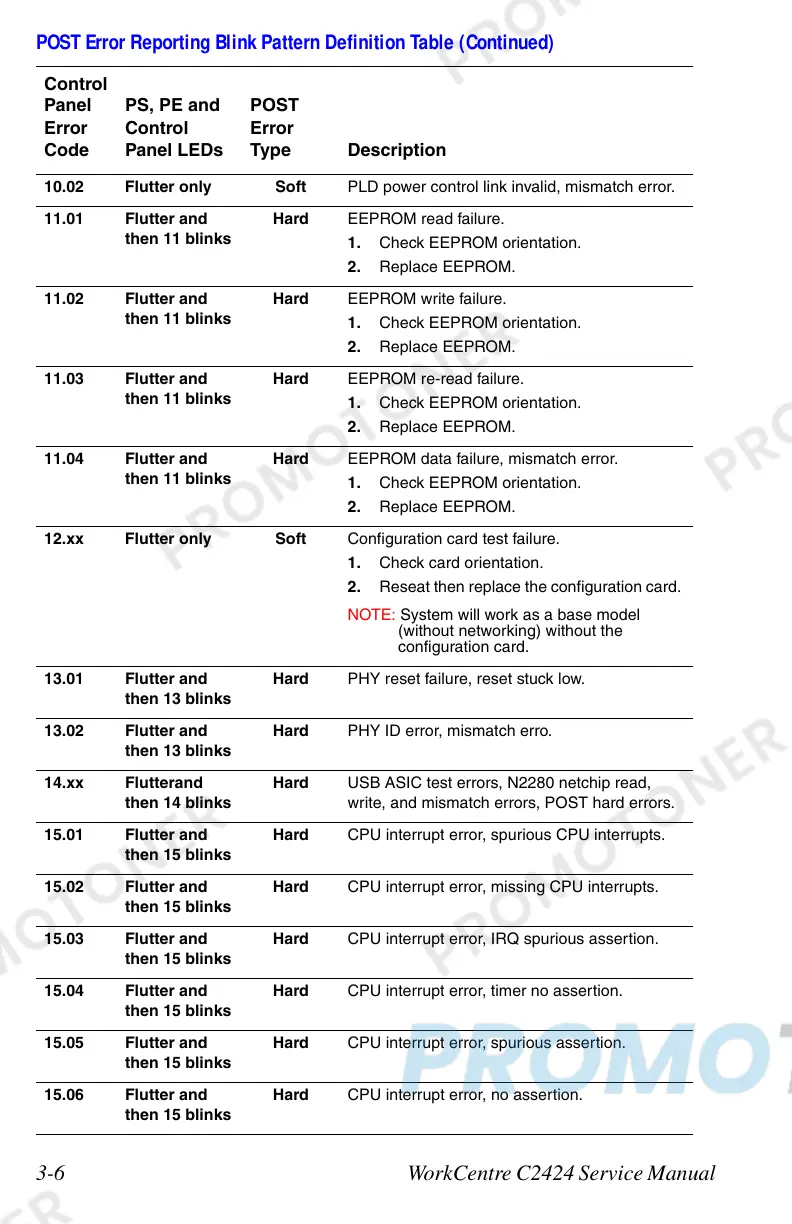

3-6 WorkCentre C2424 Service Manual
10.02 Flutter only Soft PLD power control link invalid, mismatch error.
11.01 Flutter and
then 11 blinks
Hard EEPROM read failure.
1. Check EEPROM orientation.
2. Replace EEPROM.
11.02 Flutter and
then 11 blinks
Hard EEPROM write failure.
1. Check EEPROM orientation.
2. Replace EEPROM.
11.03 Flutter and
then 11 blinks
Hard EEPROM re-read failure.
1. Check EEPROM orientation.
2. Replace EEPROM.
11.04 Flutter and
then 11 blinks
Hard EEPROM data failure, mismatch error.
1. Check EEPROM orientation.
2. Replace EEPROM.
12.xx Flutter only Soft Configuration card test failure.
1. Check card orientation.
2. Reseat then replace the configuration card.
NOTE: System will work as a base model
(without networking) without the
configuration card.
13.01 Flutter and
then 13 blinks
Hard PHY reset failure, reset stuck low.
13.02 Flutter and
then 13 blinks
Hard PHY ID error, mismatch erro.
14.xx Flutterand
then 14 blinks
Hard USB ASIC test errors, N2280 netchip read,
write, and mismatch errors, POST hard errors.
15.01 Flutter and
then 15 blinks
Hard CPU interrupt error, spurious CPU interrupts.
15.02 Flutter and
then 15 blinks
Hard CPU interrupt error, missing CPU interrupts.
15.03 Flutter and
then 15 blinks
Hard CPU interrupt error, IRQ spurious assertion.
15.04 Flutter and
then 15 blinks
Hard CPU interrupt error, timer no assertion.
15.05 Flutter and
then 15 blinks
Hard CPU interrupt error, spurious assertion.
15.06 Flutter and
then 15 blinks
Hard CPU interrupt error, no assertion.
POST Error Reporting Blink Pattern Definition Table (Continued)
Control
Panel
Error
Code
PS, PE and
Control
Panel LEDs
POST
Error
Type Description
