Yamaha 30D - DISASSEMBLY

6-3
E
LOWR
DISASSEMBLY
●

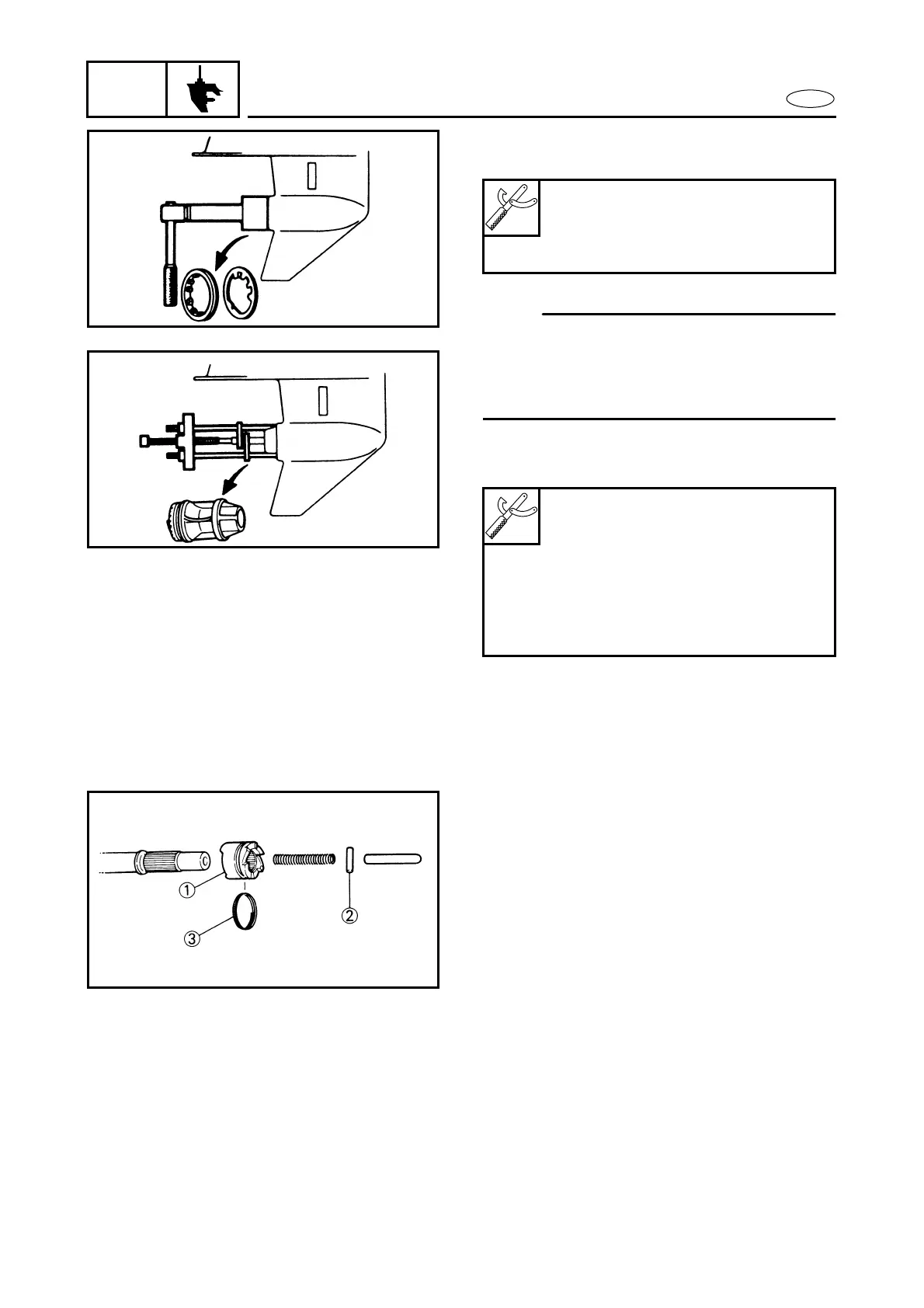

Ring-nut and claw-washer
Using special service tool.
NOTE:
To remove a ring-nut: straighten the lobe of
the claw-washer by use of a screwdriver,
then attach and turn the special service
tool.
●
Bearing-housing
Using special service tool.
Ring nut wrench:
YB-6075/90890-06509
Extension ring nut wrench:
90890-06513
Bearing housing puller:
YB-6234/90890-06503
Universal puller:
YB-6117
Stopper guide plate:
90890-06501
Center bolt:
90890-06504
● Propeller shaft assembly
●
Cross-pin ring, cross-pin and clutch-
dog
1 Clutch dog
2 Cross pin
3 Cross pin ring
