7-10

BRKT

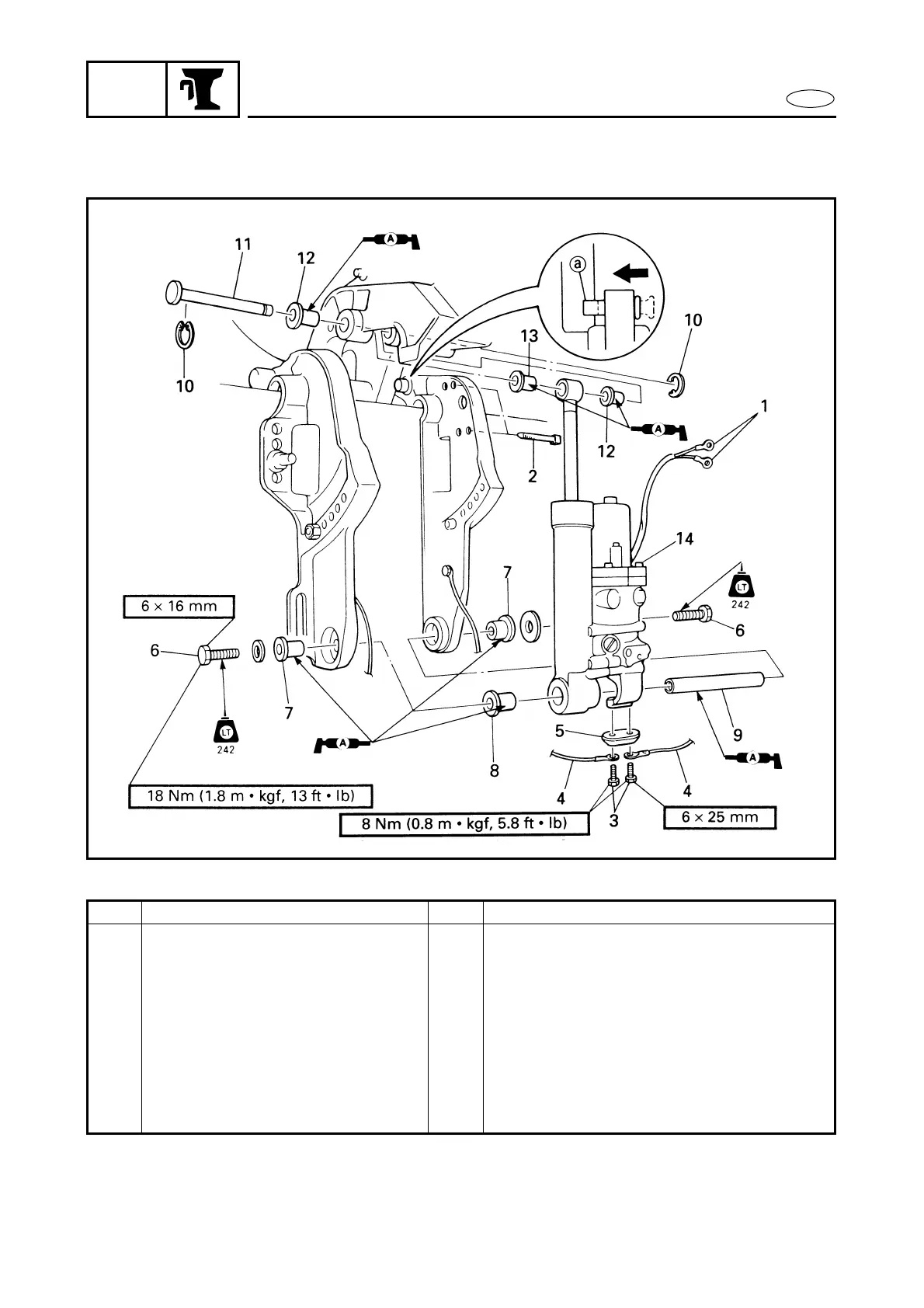

POWER TRIM AND TILT (PTT) UNIT

EXPLODED DIAGRAM

Step Procedure/Part name Q’ty Service points

7 Bushing 1

8 Bushing 2

9 Shaft 1

10 Circlip 2

11 Shaft pin 1

12 Bushing 2

13 Bushing 1

14 PTT unit 1

Reverse the removal steps for installation.
