7-15

BRKT

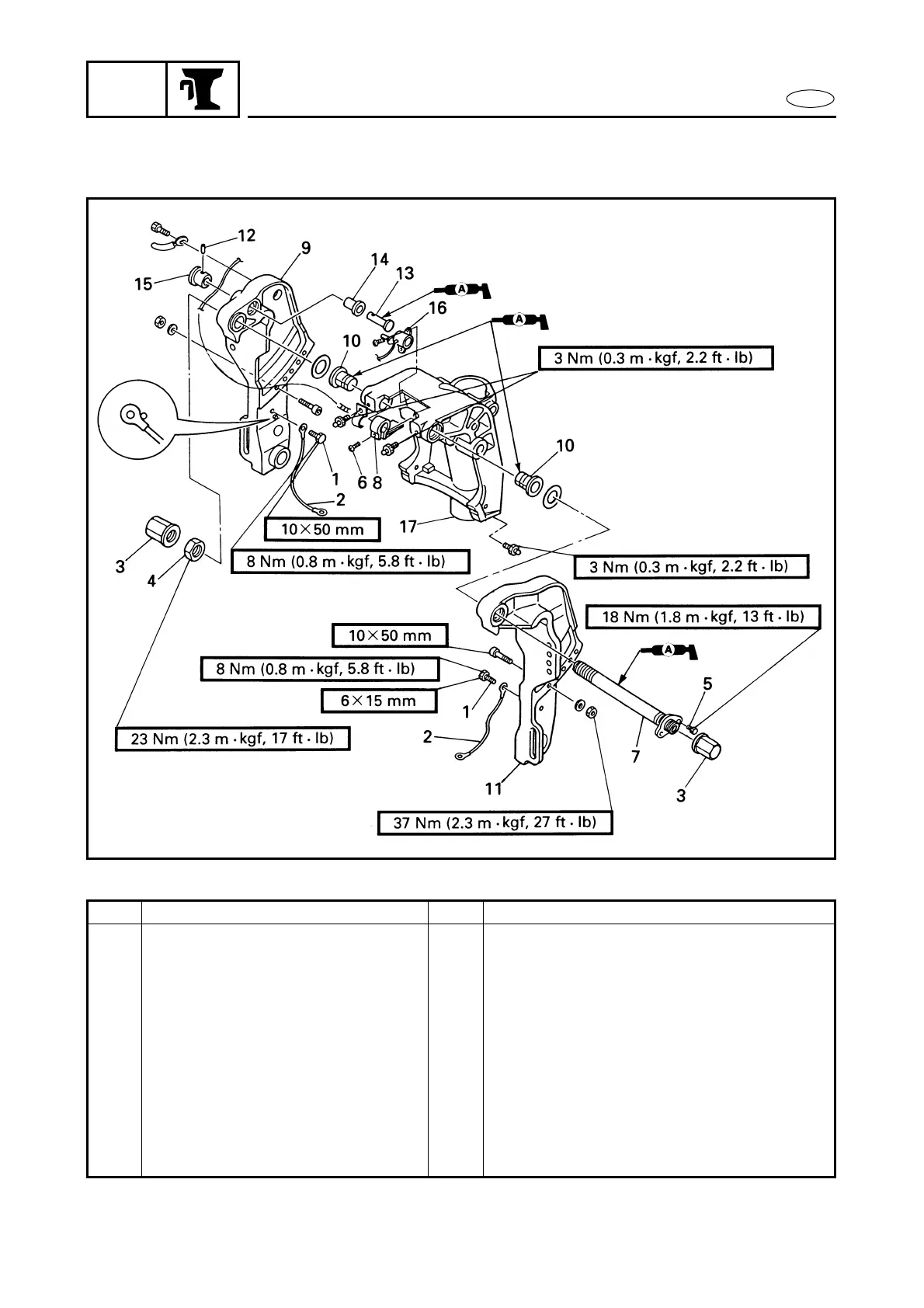

CLAMP BRACKET

EXPLODED DIAGRAM

Step Procedure/Part name Q’ty Service points

9 Right clamp bracket 1

10 Bushing 2

11 Left clamp bracket 1

12 Spring pin 1

13 Tilt lock shaft 1

14 Bushing 1

15 Tilt lock knob 1

16 Trim sensor 1

17 Swivel bracket assembly 1

Reverse the disassembly steps for instal-

lation.
