Yamaha 30D - Page 282

To Next Page

To Previous Page

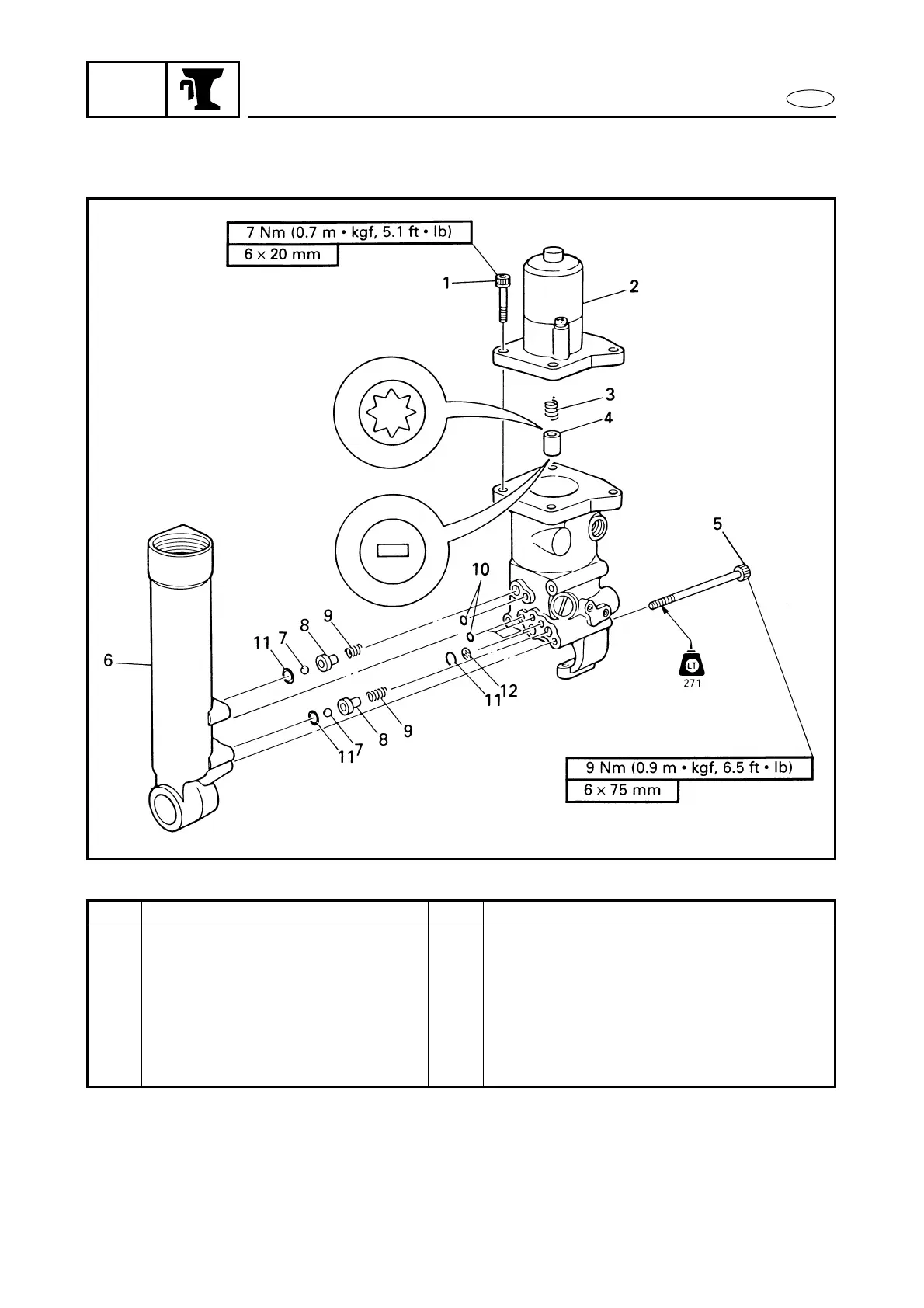

7-25

BRKT

PTT MOTOR, PUMP HOUSING,

AND TILT CYLINDER

EXPLODED DIAGRAM

Step Procedure/Part name Q’ty Service points

7 Ball 2

8 Plunger 2

9 Spring 2

10 O-ring 4 5.5 × 1.5 mm

11 O-ring 3 10.7 × 1.5 mm

12 Screen 1

Reverse the removal steps for installation.
