BRKT

SERVO-TK-MOTOR

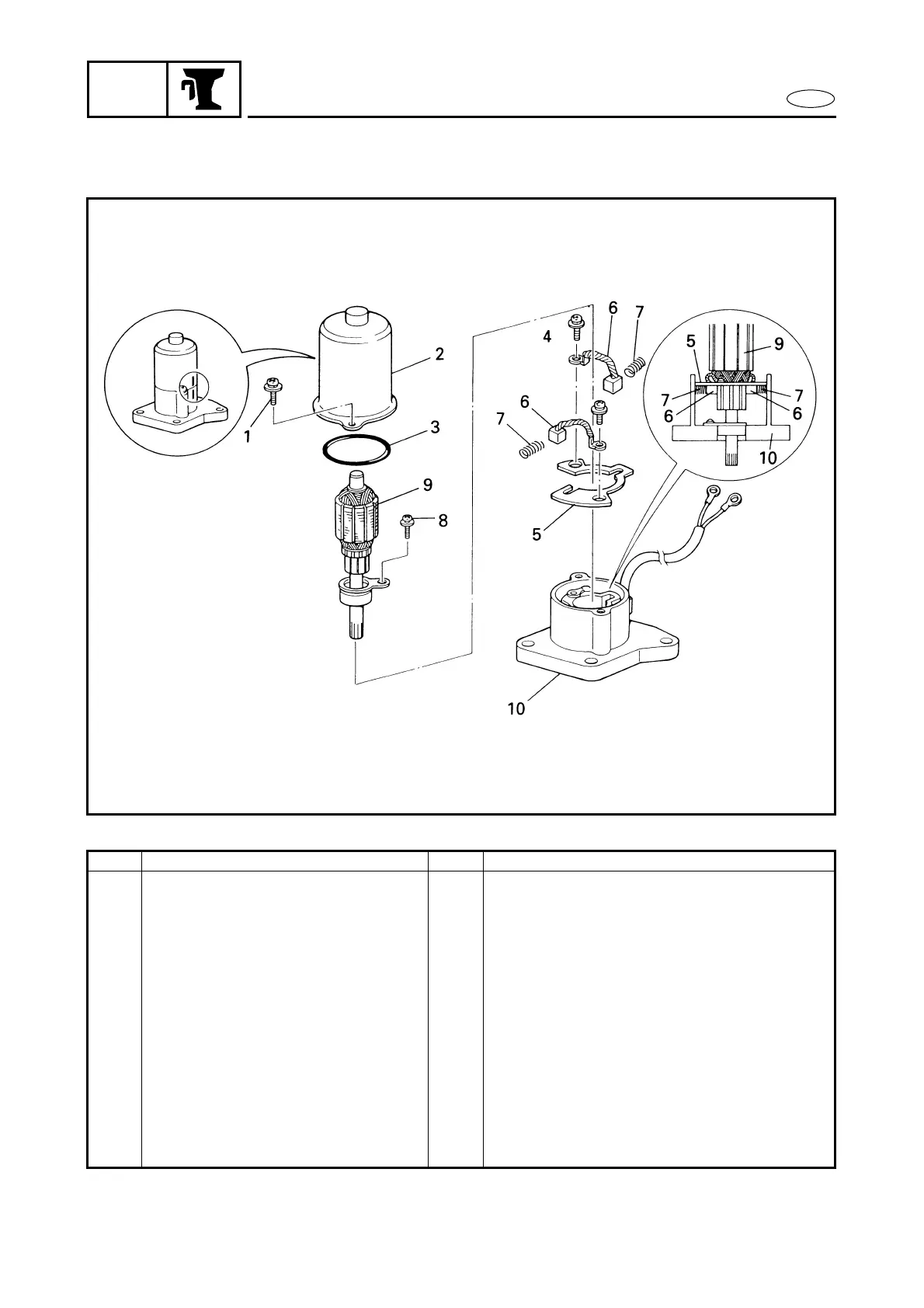

EXPLOSIONZEICHUNG

AUSBAU- UND EINBAUTAELLE

Schritt Verfahren/Teilbezeichnung Menge Wartungspunkte

SERVO-TK-MOTOR ZERLRGRN Den Punkten der Spalte “Schritt” links zum Aus-

bau folgen.

Sevo-TK-Motor

1 Schraube 2

2 Stator 1

3 O-Ring 1 49,5 × 2,0 mm

4 Schraube 2

5 Bürstenhalter 1

6 Bürste 2

7 Bürstenfeder 2

8 Schraube 1

9 Anker 1

10 Servo-TK-Motor Grundplatte 1

Zum Einbauen die Demontageschritte in umge-

kehrter Reihenfolge ausführen.

SERVO-TK-MOTOR
