8-3
–+
ELEC
E

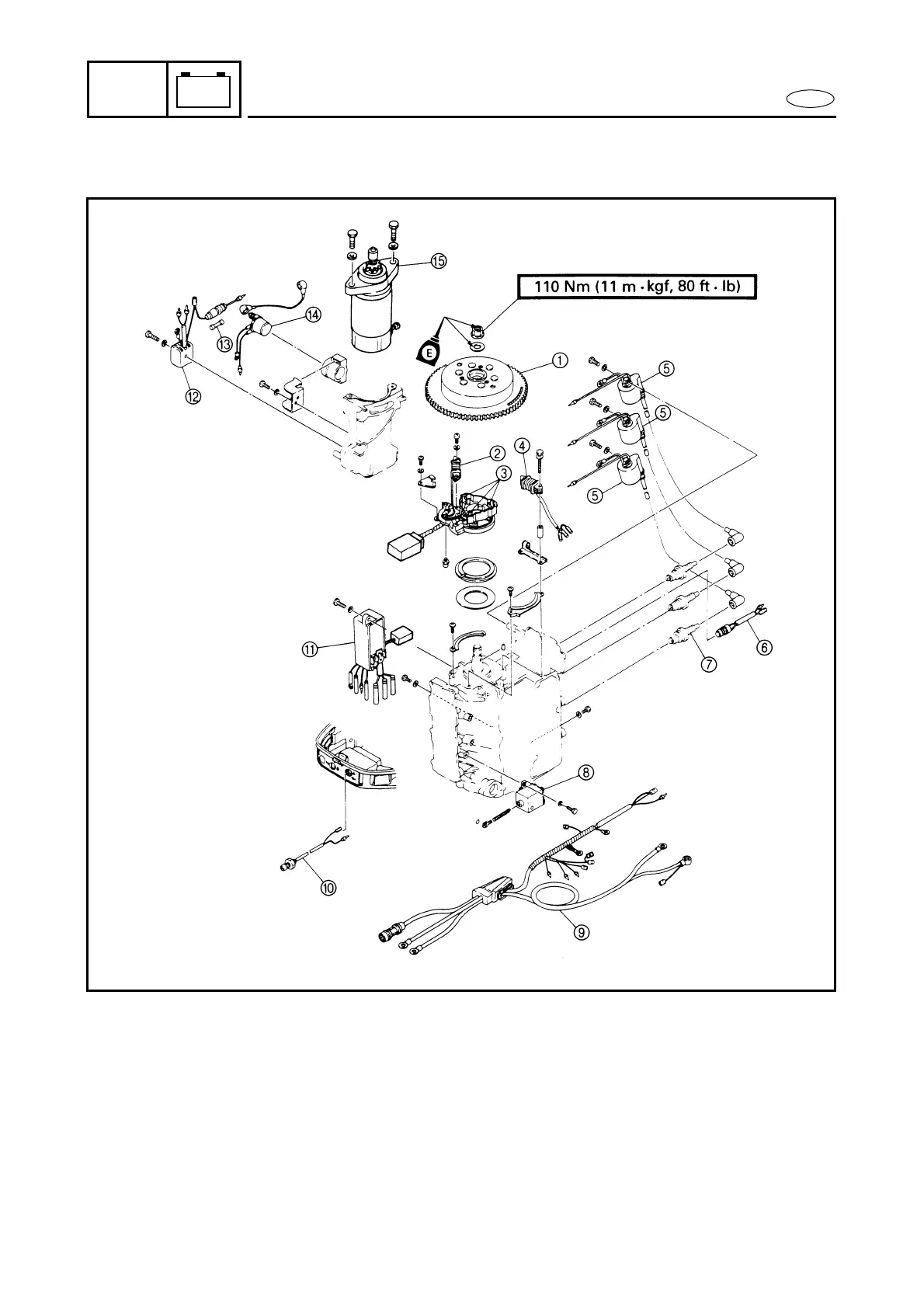

ELECTRICAL COMPONENTS
(25JEO, 30DMO, 30DE, 30DEO)
1 Rotor assembly
2 Charge coil
3 Pulser coils
4 Lighting coil
5 Ignition coils
6 Thermo switch
7 Spark plugs
8 Fuel enrichment valve
9 Wire harness
0 Oil level/engine temp. warning lamp
A CDI unit
B Rectifier
C Fuse (10A)
D Starter relay
E Starter motor
