8-6
E
–+
ELEC

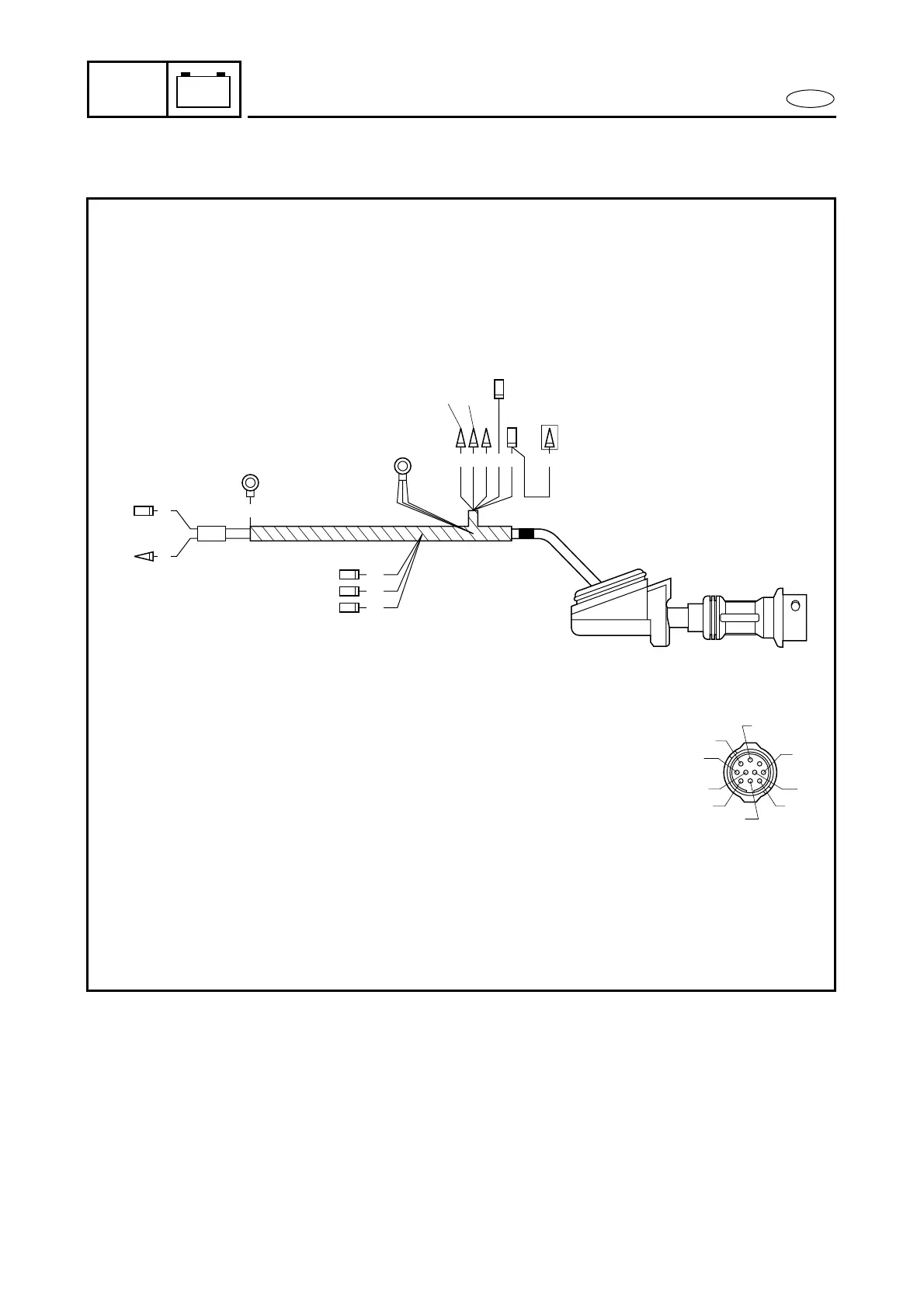

WIRE HARNESS
(25JETO, 30DET, 30DETO)
1
2
2
8
34
5
6
4
7
B
Br
Lg
9
Sb
P
B
G W R L P P
R
G
Lg
W
P
Br
Sb
L
B
Connect to:
1 Thermo switch
2 Ground
3 Lighting coil
4 CDI unit
5 Rectifier
6 Fuel enrichment valve
7 Oil level/engine temp. warning lamp
8 Starter relay
9 PTT relay
B : Black
Br : Brown
G : Green
L : Blue
Lg : Light green
P : Pink
R : Red
Sb : Sky blue
W : White
