Setting the CT Ratio (CT Scaling)

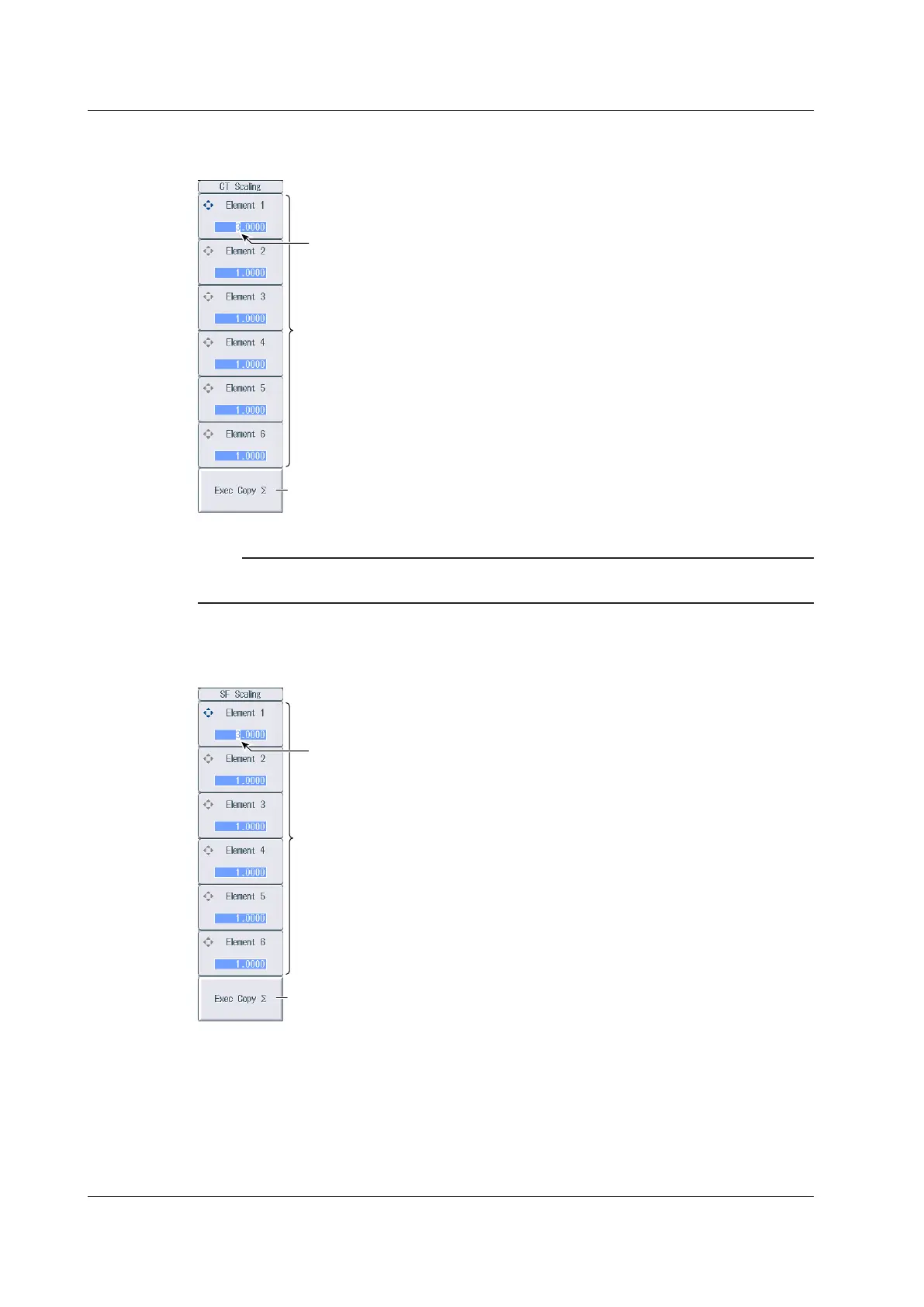

Press the CT Scaling soft key to display the following menu.
Set the CT ratio.
Copies the CT ratio
The CT ratio of the input element that is indicated by the cursor is copied to all the input
elements in that element’s wiring unit.
Cursor (use the ◄► cursor keys to move it)
Note
When using the dedicated CT, you can select a CT ratio preset in the menu for configuring all elements (see
section 1.17).
Setting the Power Coefficient (SF Scaling)
Press the SF Scaling soft key to display the following menu.
Set the power coefficient.
Copies the power coefficient
The power coefficient of the input element that is indicated by the cursor is copied to all the
input elements in that element’s wiring unit.
Cursor (use the ◄► cursor keys to move it)
