1-20

IM WT18

1E-02EN

1.16 Setting Averaging

This section explains the following settings for averaging:

• Turning averaging on and off

• Averaging type

• Attenuation constant

• Average count

► “Averaging (AVG)” in the features guide

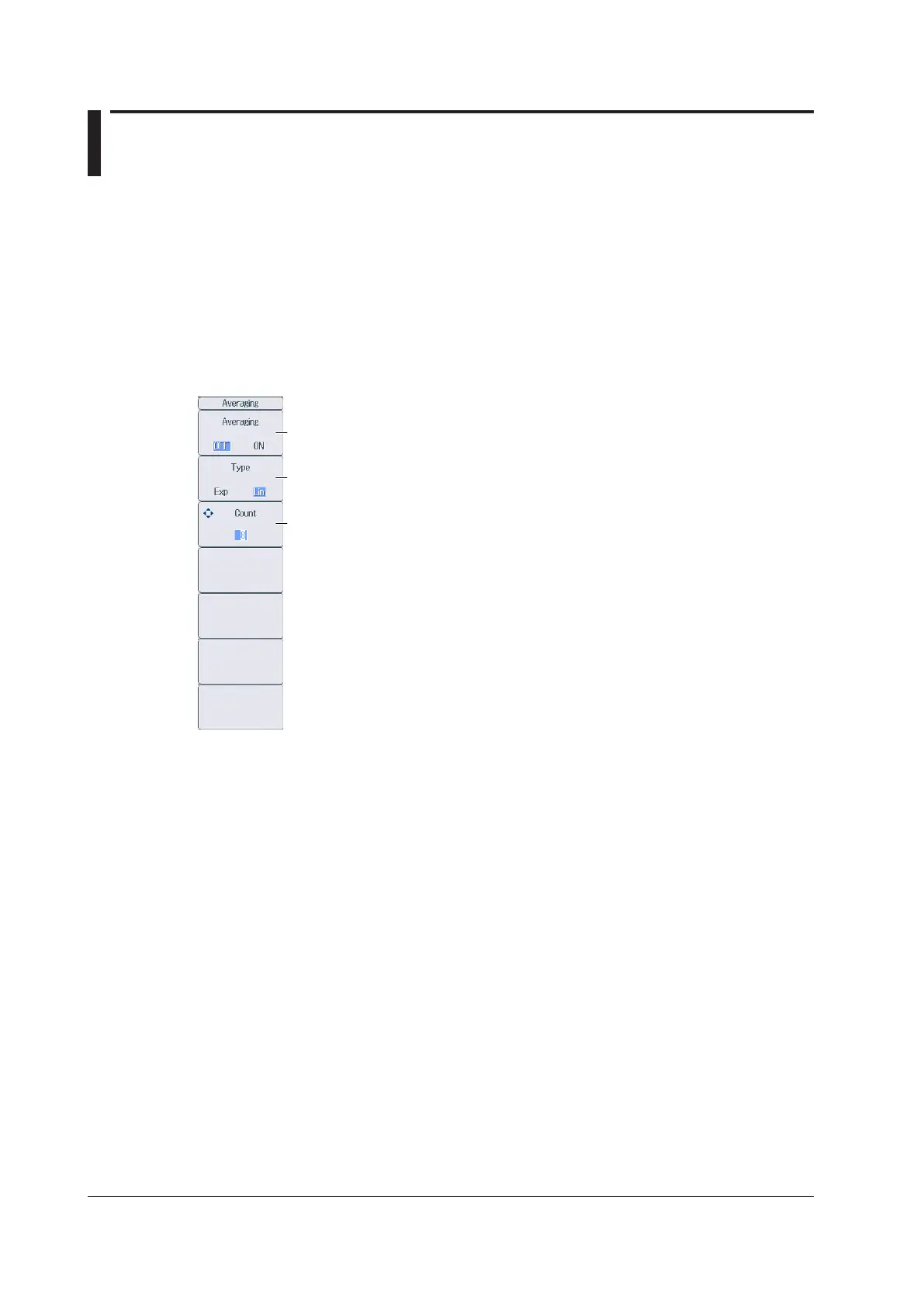

Averaging Menu

Press AVG to display the following menu.

Set the averaging type (Exp, Lin).

Turns averaging on and off

Set the attenuation constant or average count.

• When Type is set to Exp: Set the attenuation constant (2 to 64).

• When Type is set to Lin: Set the average count (8 to 64).
