YOKOGAWA WT1801E User Manual

20-1
IM WT18 O 1E-02EN
Chapter 20 Ethernet Communication
20.1 Connecting this instrument to a Network
This section explains how to connect this instrument to a network.
Ethernet Interface Specifications
There is a 1000BASE-T port located on the rear panel of the instrument.
Item Specifications
Ports 1
Electrical and mechanical
specifications
IEEE802.3
Transmission system Ethernet (1000BASE-T, 100BASE-TX, 10BASE-T)
Communication protocol TCP/IP
Supported services FTP server, DHCP, DNS, remote control (VXI-11), SNTP, FTP client, Modbus/
TCP server, and Web server
Connector type RJ-45 connector

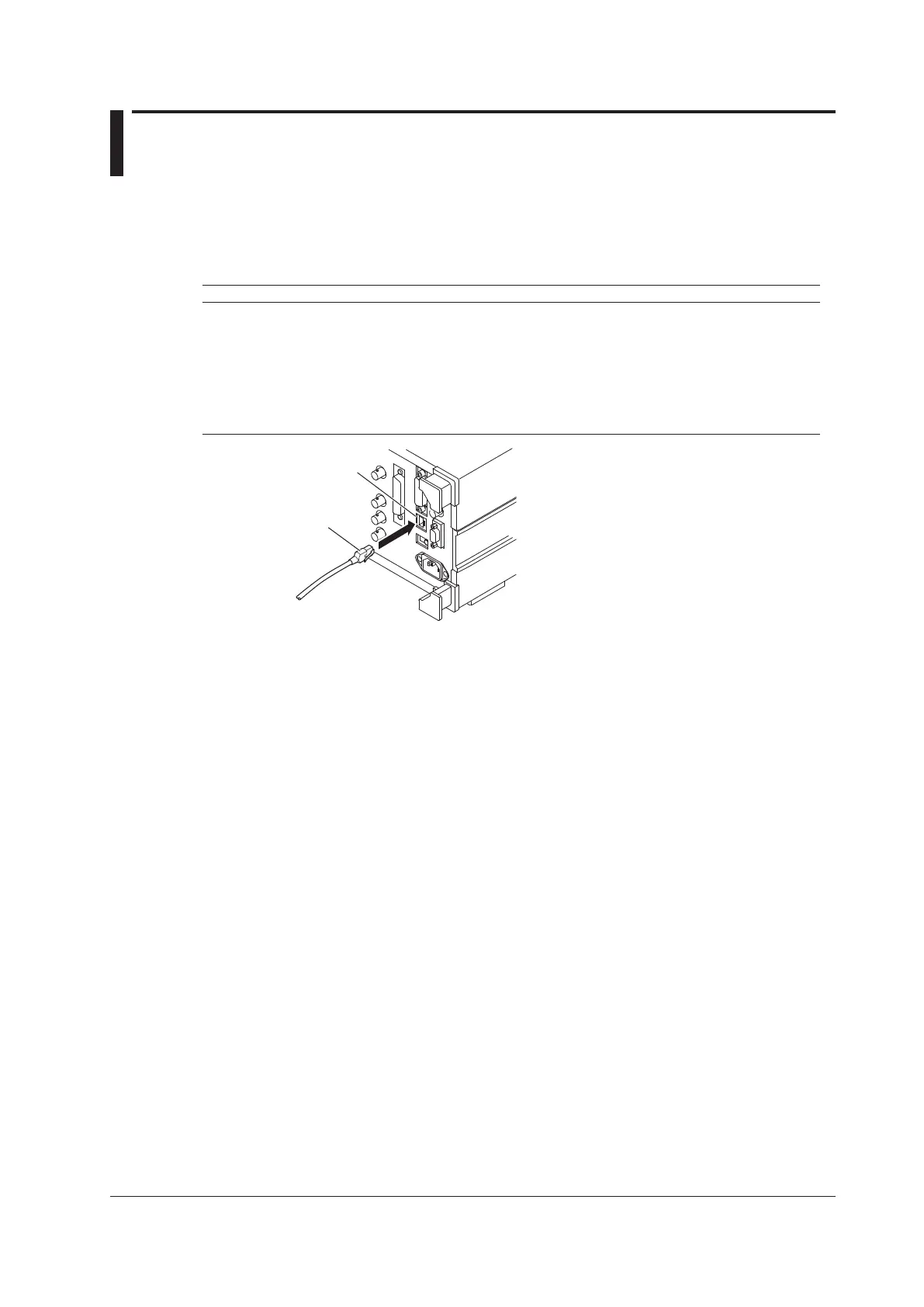

Ethernet port
RJ-45 modular jack
Items Required to Connect this instrument to a Network
Cable
Use one of the following types of network cables that supports the data rate of your network.
• A UTP (Unshielded Twisted-Pair) cable
• An STP (Shielded Twisted-Pair) cable
