9-3
IM WT18
O
1E-02EN
9.2 Turning the Display of Waveforms On and Off
and Setting the Vertical Zoom Factors and
Vertical Positions
This section explains the following waveform display settings:
Turning the display of waveforms on and off
Vertical zoom factor
Vertical position
“Display Items (ITEM)—Waveform” in the features guide
Configuring the Waveform Display

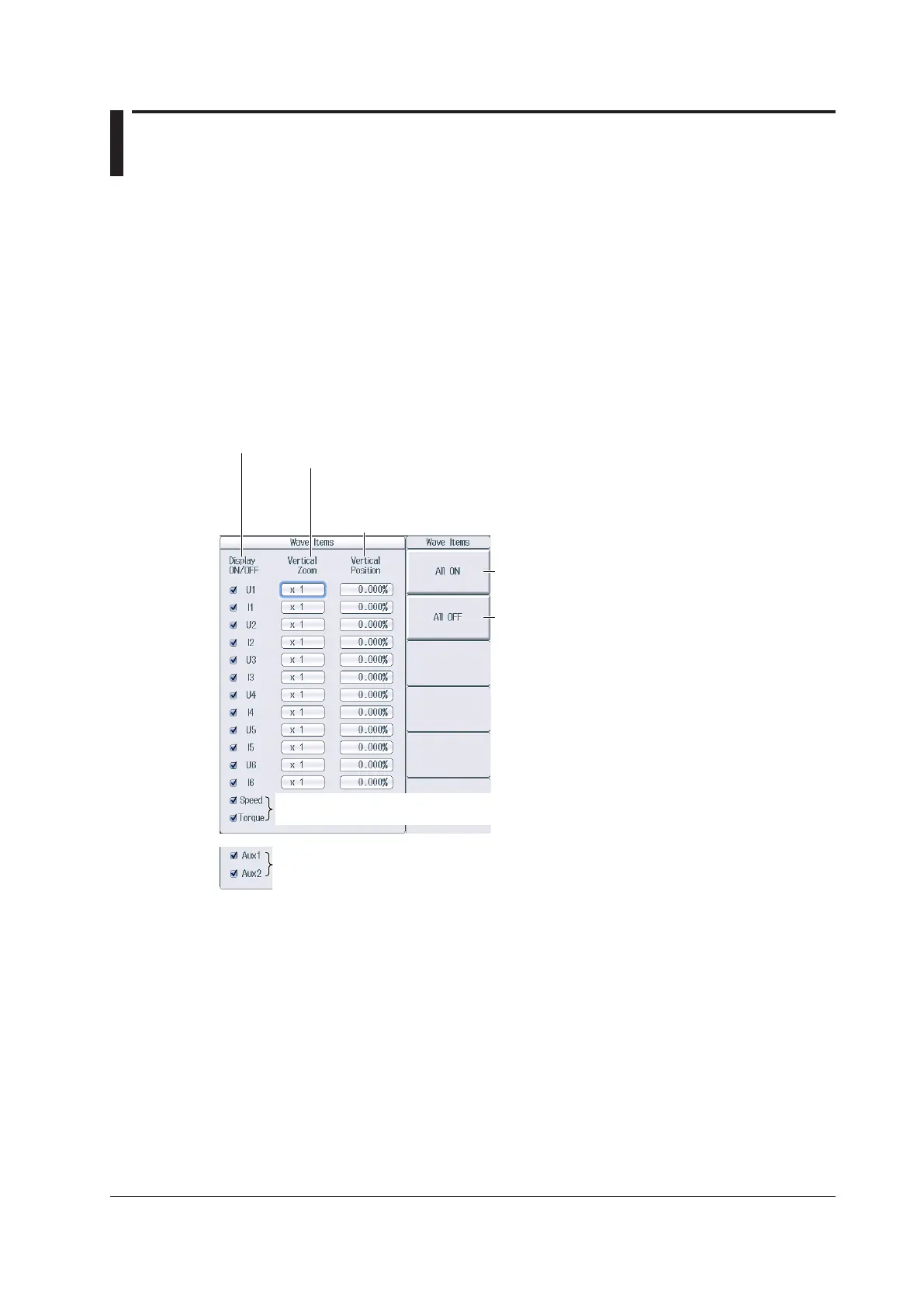

Press WAVE and then ITEM to display the following menu.
If the setup parameter list is being displayed (the INPUT INFO key is illuminated), the Info Form menu may
be displayed. If this happens, press ITEM again.
Set the vertical position (0.000% to ±130.000%).
Set the vertical zoom factor
( × 0.1, × 0.2, × 0.25, × 0.4, × 0.5, × 0.75, × 0.8, × 1, × 1.14, × 1.25, × 1.33, × 1.41,
× 1.5, × 1.6, × 1.77, × 2, × 2.28, × 2.66, × 2.83, × 3.2, × 3.54, × 4, × 5, × 8, × 10,
× 12.5, × 16, × 20, × 25, × 40, × 50, × 100).
Select the waveforms that you want to display.
Turns the display of all waveforms on
Turns the display of all waveforms off
Speed and Torque are displayed on
models with the /MTR option.
Aux1 and Aux2 are displayed on
models with the /AUX option.
