11-2

IM WT18

1E-02EN

11.2 Setting the Measurement Function to Display

and the Vertical Scale

This section explains the following bar graph display settings. This feature is available on models with

the /G5 or /G6 option.

• Bar graph number

• Measurement function

• Element

• Vertical scale

Vertical scale mode, vertical scale type, vertical scale upper limit, and X-axis position

► “Display Items (ITEM)—Bar Graph” in the features guide

Follow the procedure in section 11.1 to select Bar on the Others menu.

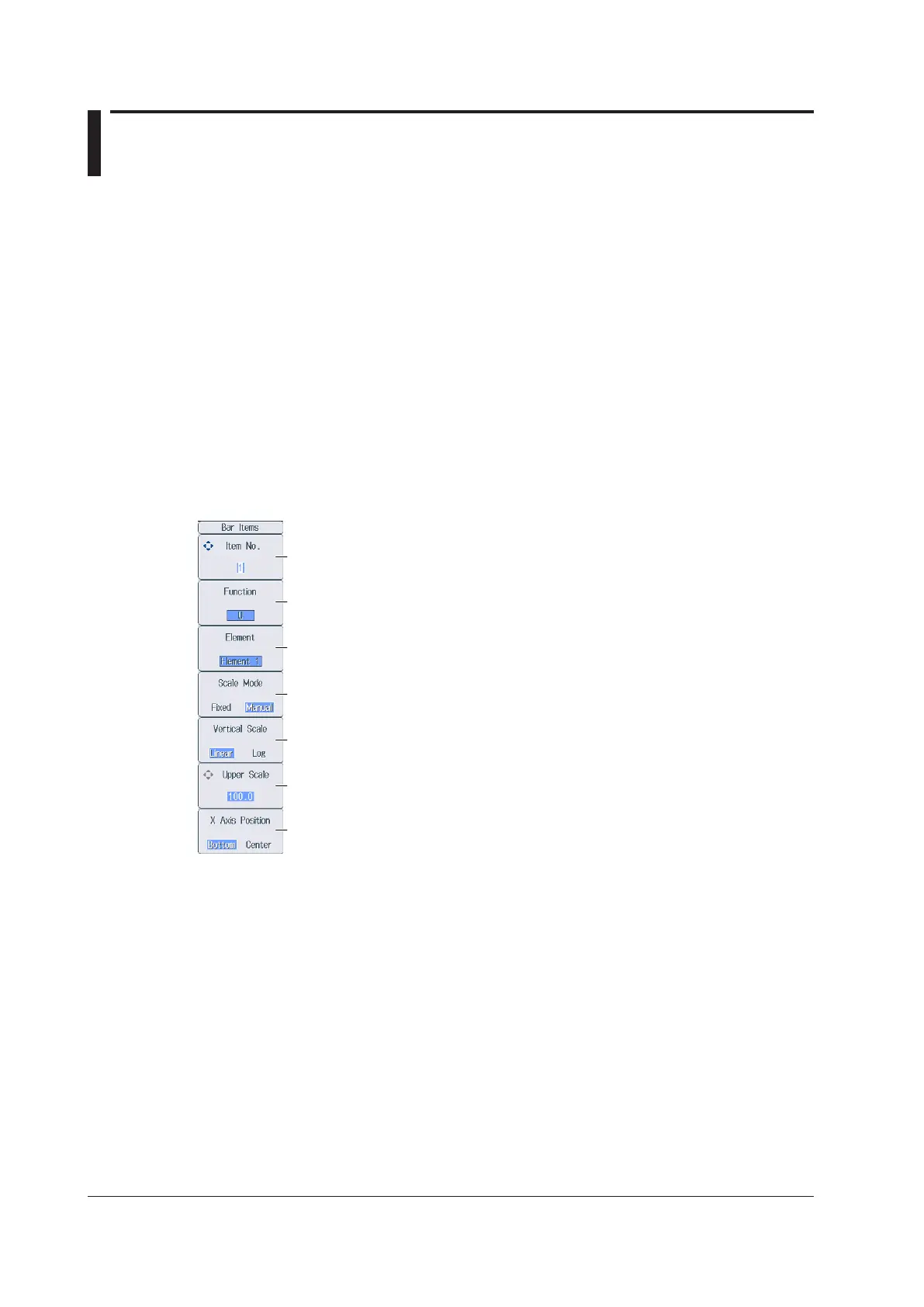

Bar Items Menu

2. Press ITEM to display the following menu.

If the setup parameter list is being displayed (the INPUT INFO key is illuminated), the Info Form menu may

be displayed. If this happens, press ITEM again.

Select the bar graph number that you want to set (1, 2, 3).

Set the measurement function (U, I, P, S, Q, λ, Φ, ΦU, ΦI, Z, Rs, Xs, Rp, Xp).

Set the element (Element 1 to Element6).

Select the vertical scale’s setup method (Fixed, Manual).

Set the vertical scale type (Linear, Log).

This soft key is displayed when you set Scale Mode to Manual.

Set the upper limit (0 to 9.999 T).

This soft key is displayed when you set Scale Mode to Manual.

Set the X-axis position (Bottom, Center).

This soft key is displayed when you set Scale Mode to Manual and Vertical Scale to Linear.

YOKOGAWA WT1801E User Manual
