15-1
IM WT18
O
1E-02EN
15.1 Setting the Number of Data Captures and
Configuring the Capture Control Settings
This section explains the following settings concerning the number of data captures for high speed
data capturing and the capture control settings.
• Number of data captures
• Confirming and optimizing the maximum capturing count
• Capture control settings
Voltage and current measurement modes, turning the HS filter on and off, setting the HS filter cutoff
frequency, triggering, performing synchronized measurement using an external signal
• Selecting whether to save to a file
► “Capture Count (Capture Count)” and “Capture Control Settings (Control Settings)”
in the features guide

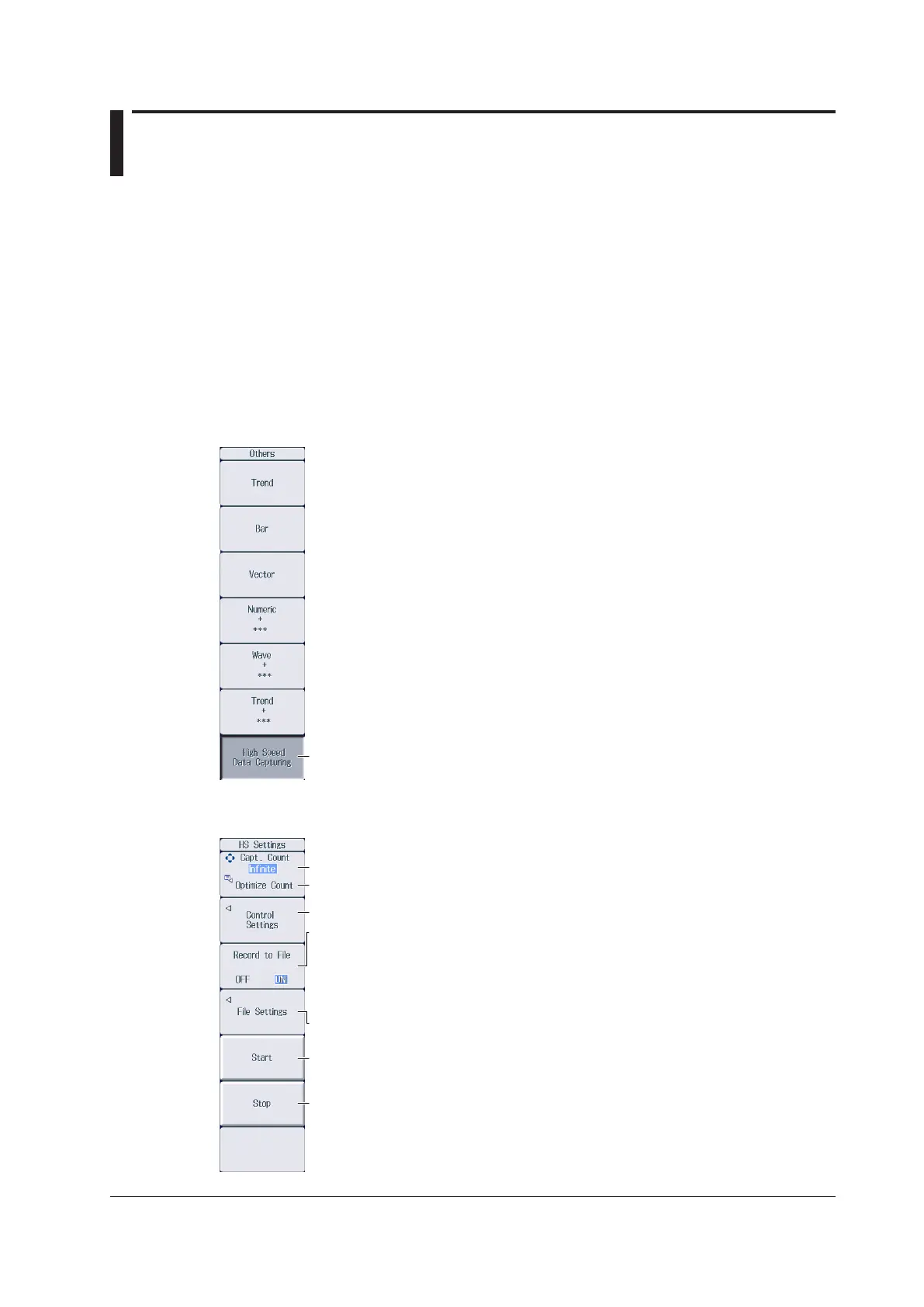

Others Menu
Press OTHERS to display the following menu.
Select High Speed Data Capturing.
HS Settings Menu
Press FORM to display the following menu.
Set the number of data captures (Infinite, 1 to 9999).
Confirm and optimize the maximum capturing count.*
Starts high speed data capturing ►section 15.4
Stops high speed data capturing ►section 15.4
Set the save conditions. ►section 15.2
Select whether to save to a file*
• OFF: When high speed data capturing is performed, you can use communication
commands to output the captured data.
• ON: “File State: Ready” appears in the upper left of the screen. When high speed data
capturing is performed, the captured data is recorded (saved) under the save
conditions set in section 15.2.
Configure capture control settings.
* You cannot configure the settings in “Confirming and Optimizing the Maximum Capturing
Count” when Record to File is set to OFF.
Chapter 15 High Speed Data Capturing
To Next Page
