14-2
IM WT18
O
1E-02EN
14.2 Performing Cursor Measurements on Trends
This section explains the following settings for performing cursor measurements on trends:
• Turning the cursor display on and off
• The trends to perform cursor measurements on
• Cursor position
• Turning linked cursor movement on and off
► “Cursor Measurement” in the features guide
1.
Follow the procedures in chapter 10 to display trends.

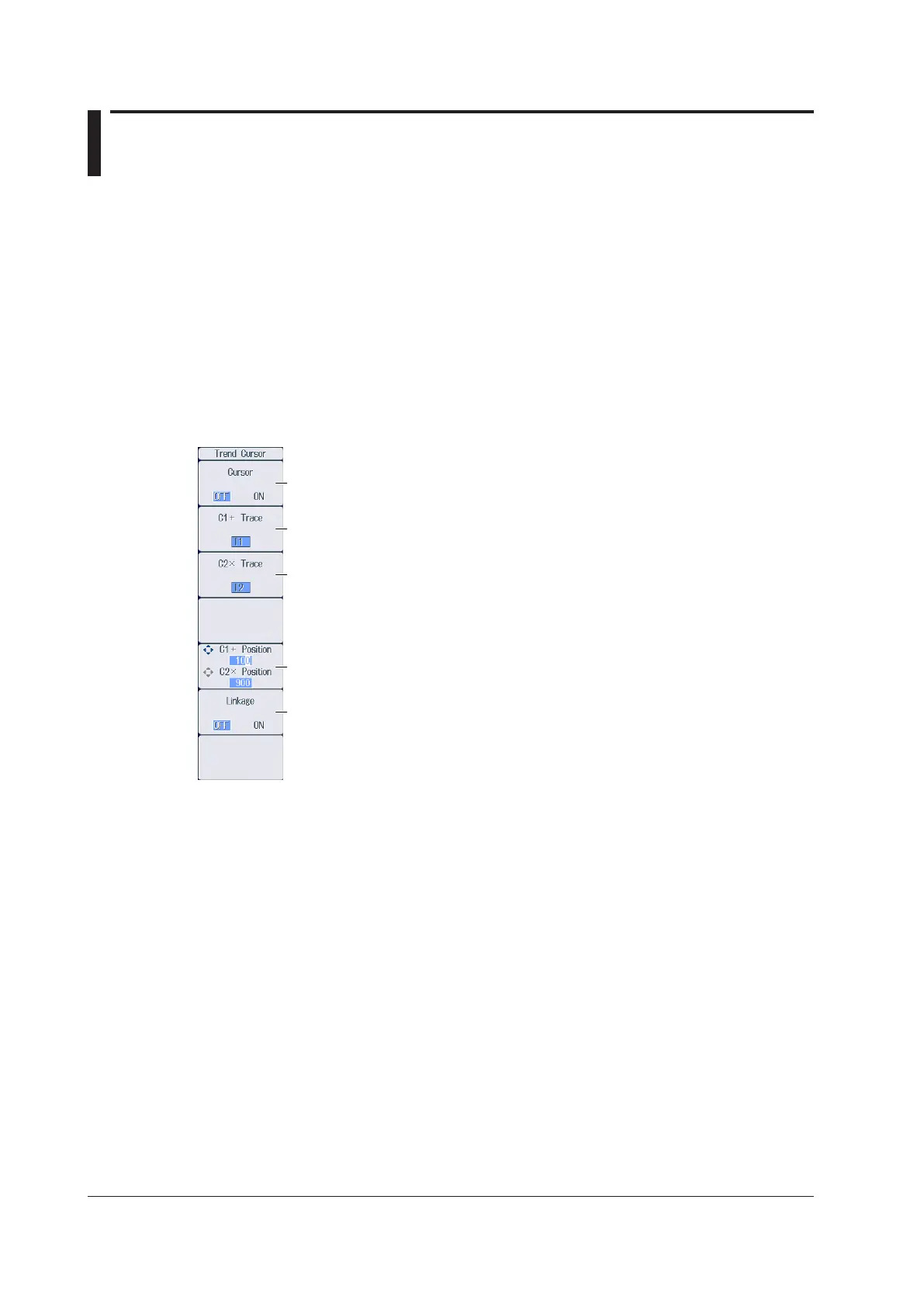

Trend Cursor Menu
2.
Press SHIFT+FORM (CURSOR) to display the following menu.
Turns the cursor display on and off
Set the trend to measure with cursor 1 (+) (T1 to T16).
Set the trend to measure with cursor 2 (×) (T1 to T16).
Set the positions of cursor 1 (+) and cursor 2 (×) (0, which is the left edge of the
screen to 1601, which is the right edge of the screen)
Turns linked cursor movement on and off
To Next Page
