10-1
IM WT18
O
1E-02EN
Chapter 10 Trend Display
10.1 Setting the Display Format
This section explains the following settings for the trend display format:
• Number of divisions of the trend screen
• Time axis
• Restarting trends
• Advanced trend display settings
► “Display Format (FORM)—Trend” in the features guide

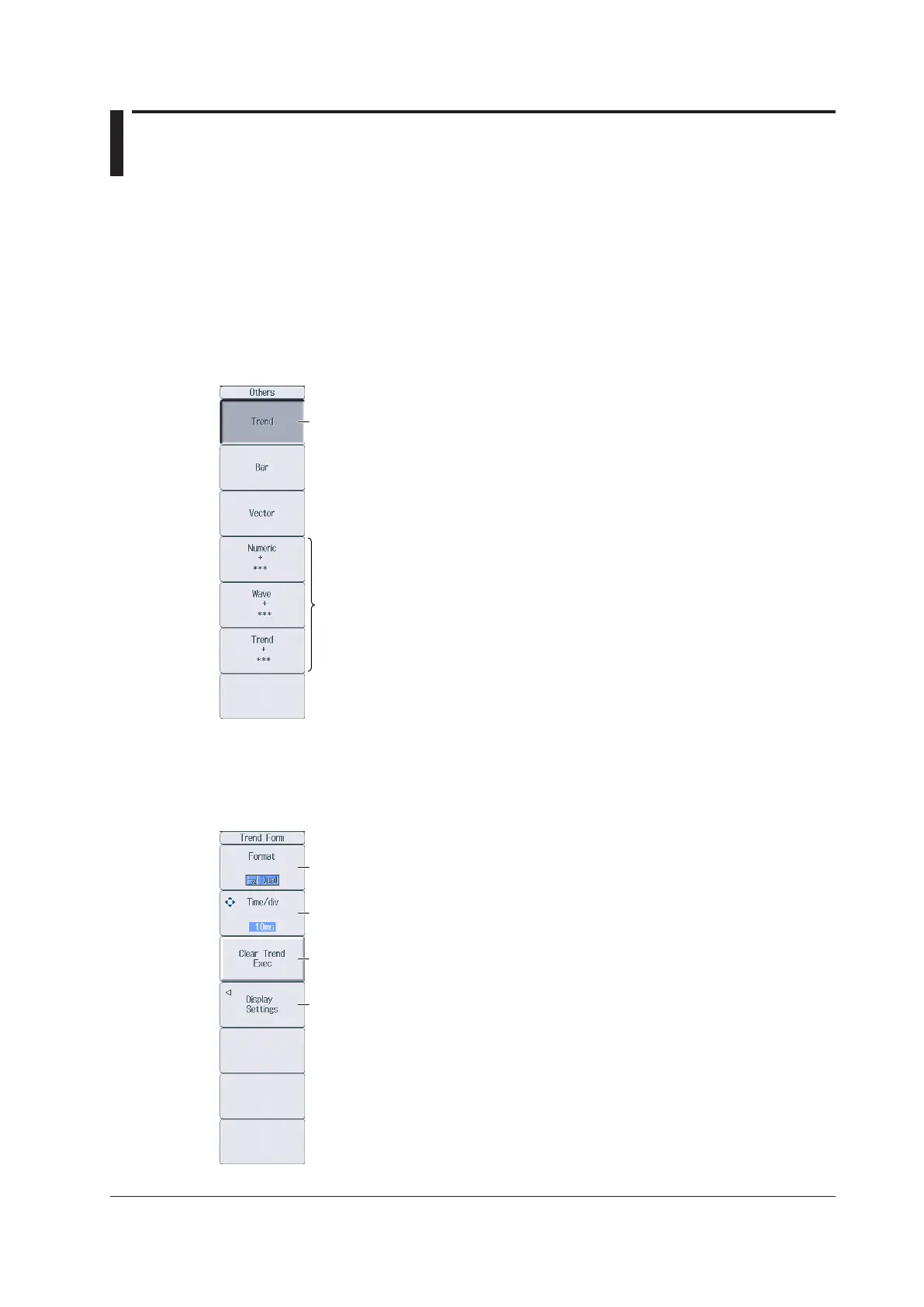

Others Menu
Press OTHERS to display the following menu.
Select Trend.
Even if you select one of these settings, you can still show the trend display. You can split the
screen into top and bottom halves, and show the trend display in one half and another
display in the other half. ► chapter 13
Trend Form Menu
Press FORM to display the following menu.
If the setup parameter list is being displayed (the INPUT INFO key is illuminated), the Info Form menu may
be displayed. If this happens, press FORM again.
Set the number of divisions on the trend screen (Single, Dual, Triad, Quad).
Set the time axis (3s, 6s, 10s, 30s, 1min, 3min, 6min, 10min, 30min, 1hour,
3hour, 6hour, 12hour, 1day).
Restarts the trend
Configure the advanced trend display settings.
To Next Page
