11-1

IM WT18

1E-02EN

Chapter 11 Bar Graph Display (Option)

11.1 Setting the Display Format

This section explains the following settings for the bar graph display format. This feature is available

on models with the /G5 or /G6 option.

• Number of divisions of the bar graph screen

• Bar graph display range (displayed harmonic orders)

► “Display Format (FORM)—Bar Graph” in the features guide

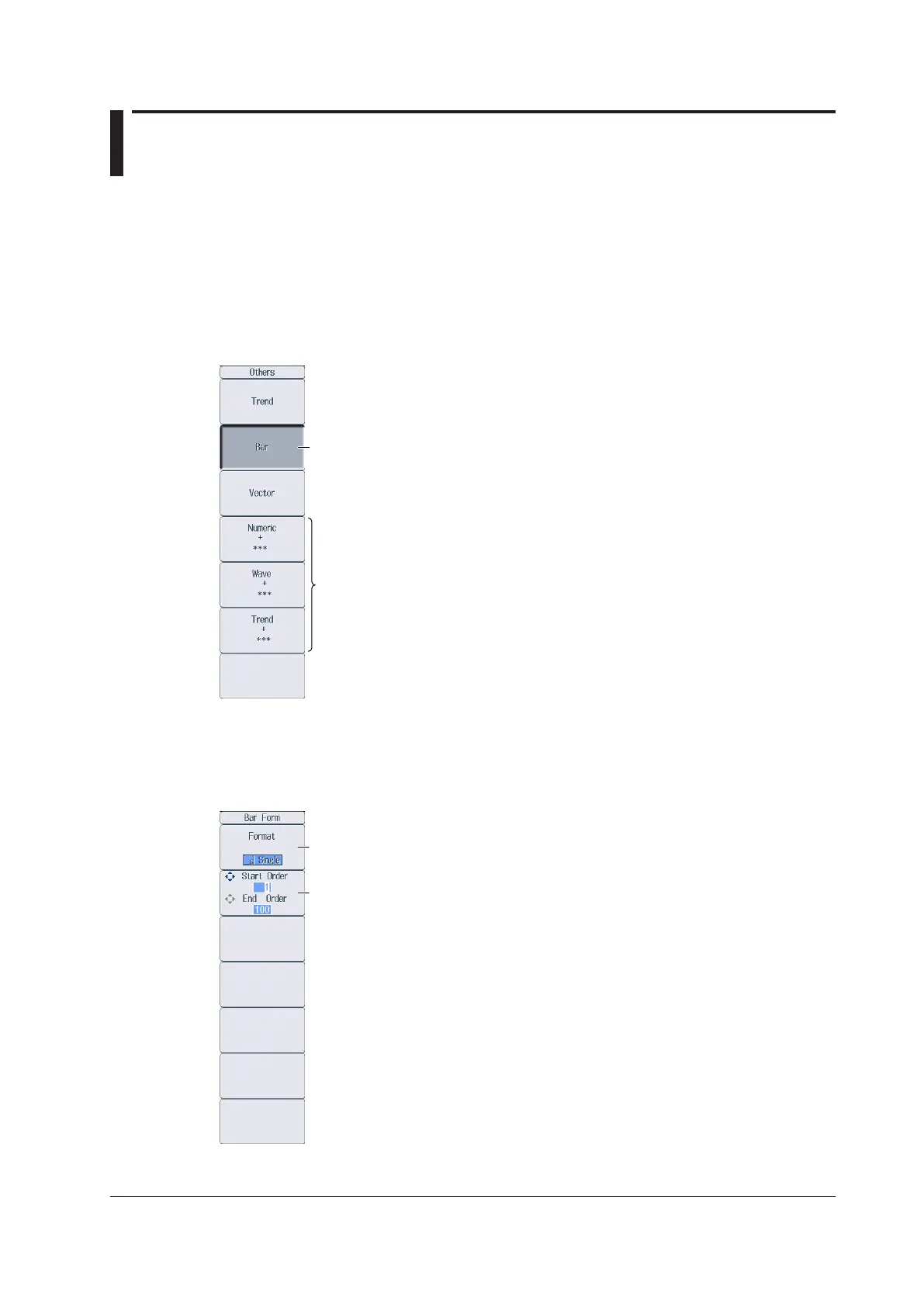

Others Menu

Press OTHERS to display the following menu.

Select Bar.

Even if you select one of these settings, you can still show the bar graph display. You can

split the screen into top and bottom halves, and show the bar graph display in one half and

another display in the other half. ► chapter 13

Bar Form Menu

Press FORM to display the following menu.

If the setup parameter list is being displayed (the INPUT INFO key is illuminated), the Info Form menu may

be displayed. If this happens, press FORM again.

Set the number of divisions on the bar graph screen (Single, Dual, Triad).

Set the bar graph display range.

• The display’ s start harmonic order (0 to 490)

• The display’ s end harmonic order (10 to 500)

You can set the range to any value provided that the end harmonic order is larger than the

start harmonic order by 10 or more.

YOKOGAWA WT1801E User Manual
