1.10 Setting Delta Computation
This section explains the following settings for the delta computation.
• Delta computation type
• Delta computation mode
► “Delta Computation (Δ Measure)” in the features guide
Delta Computation Settings (Δ Measure)

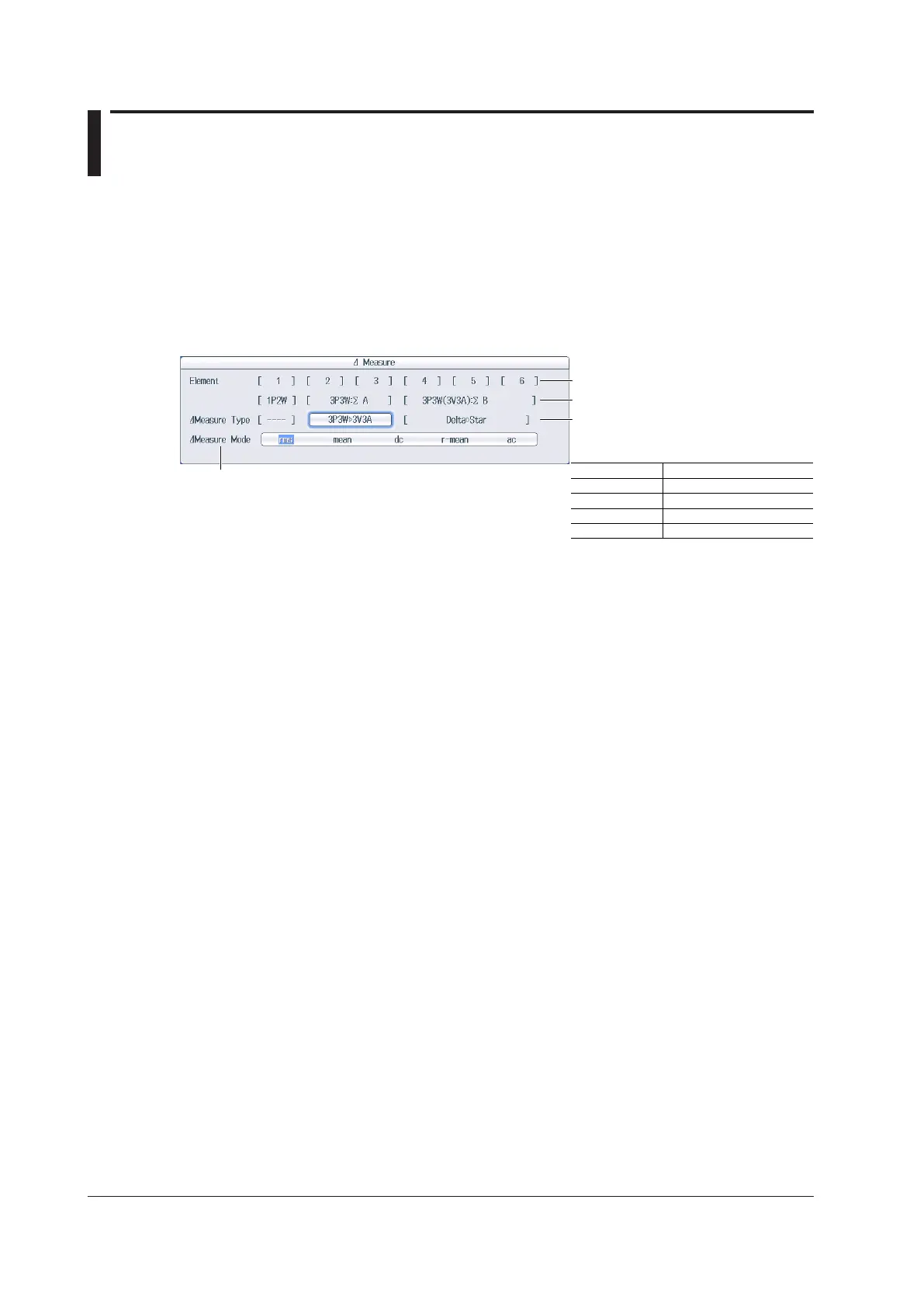

Press WIRINGandthentheΔ Measure soft key to display the following screen.
The set wiring systems
Set the delta computation type.
The available options vary depending on
the set wiring systems.
Installed input elements
Set the delta computation mode (rms, mean, dc, r-mean, ac).
Wiring System Delta Computation Type
1P3W Difference, 3P3W > 3V3A
3P3W Difference, 3P3W > 3V3A
3P4W Star > Delta
3P3W(3V3A) Delta > Star
