6-6
IM WT18
O
1E-02EN
6.4 Changing the Displayed Items on the Matrix
Display
This section explains the following settings for the displayed items on the Matrix display:
• Item number
• Measurement function
• Element and wiring unit
• Harmonic order
• Resetting the displayed items
• Display column
• Turning the display frame on and off
To change the displayed items, you can:
• Set the items on the Matrix Items menu.
• Set items directly by pressing the function select keys and ELEMENT.
► “Matrix Display (Matrix)” in the features guide
1.
Follow the procedure in section 6.1 to set the numeric data display format to the
Matrix
display.
Matrix Items Menu
2.

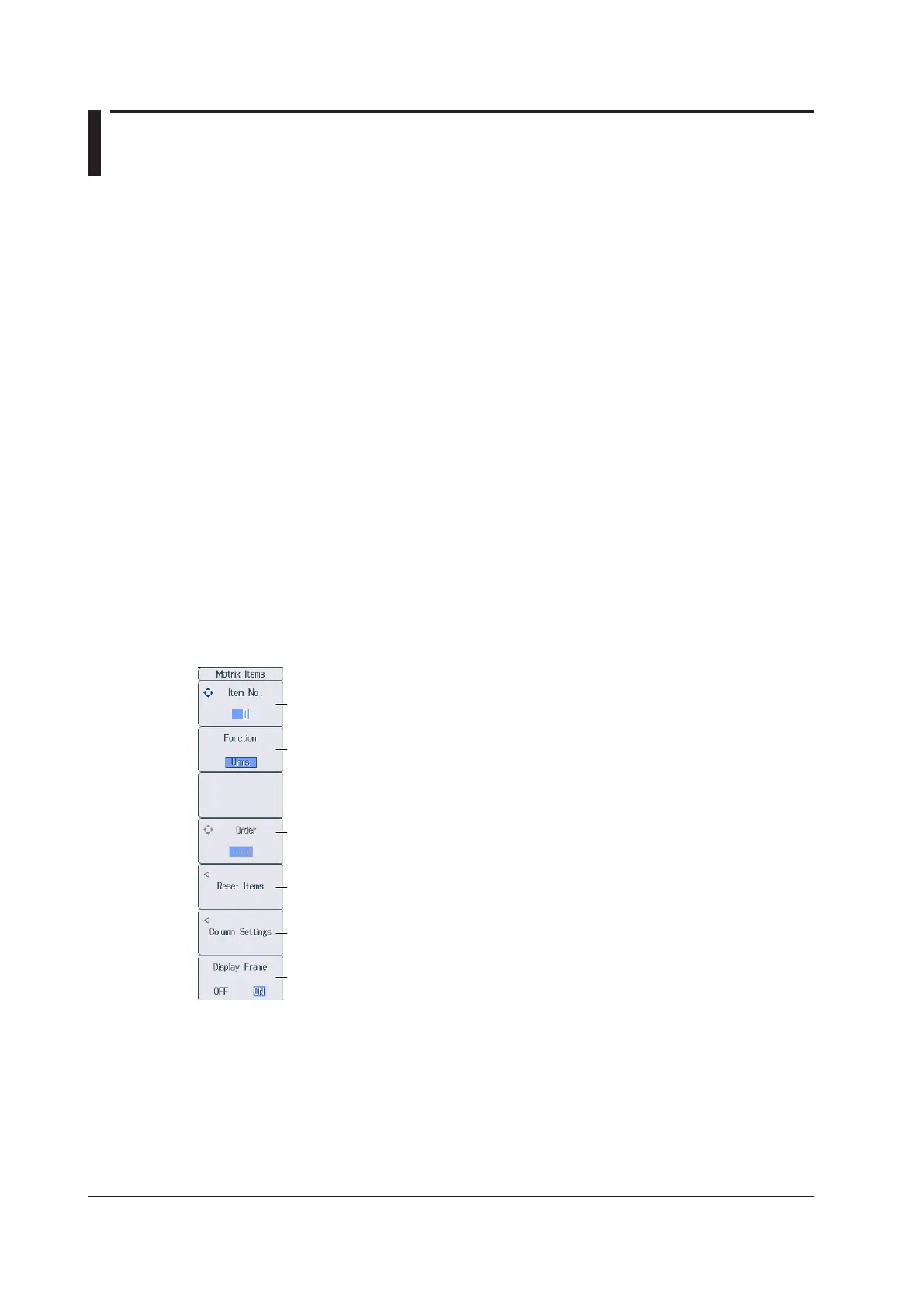

Press ITEM to display the following menu.
If the setup parameter list is being displayed (the INPUT INFO key is illuminated), the Info Items menu may
be displayed. If this happens, press ITEM again.
In step 1, you can also display the Matrix Items menu by pressing NUMERIC, ITEM, and then repeatedly
pressing NUMERIC.
Select the item number that you want to set (1 to 81).
Set the resetting of displayed items.
Configure the columns to display.
Turns the display frame on and off
Set the measurement function (None, other functions—for details on the various
measurement functions, see “Items That This Instrument Can Measure” in the features
guide).
Set the harmonic order (Total, 0 to 500; /G5 or /G6 option).
You can set this setting only when you have selected a measurement function that includes a
harmonic order.
Switching the Page
To set items on pages that aren’t currently displayed, switch to these pages. For details on how to
switch pages, see section 6.2.
To Next Page
