YOKOGAWA WT1801E - Changing the Displayed Items for High Speed Data Capturing

15-6
IM WT18 O 1E-02EN
15.3 Changing the Displayed Items for High Speed
Data Capturing
This section explains the following settings concerning the displayed items for high speed data
capturing.
• Number of columns
• Column number
• Element and wiring unit
• Resetting the displayed items
• Peak over-range information
• Turning the display frame on and off
► “Display Items (ITEM)—High Speed Data Capturing” in the features guide
1.
Follow the procedure in section 15.1 to select High Speed Data Capturing on the Others menu.

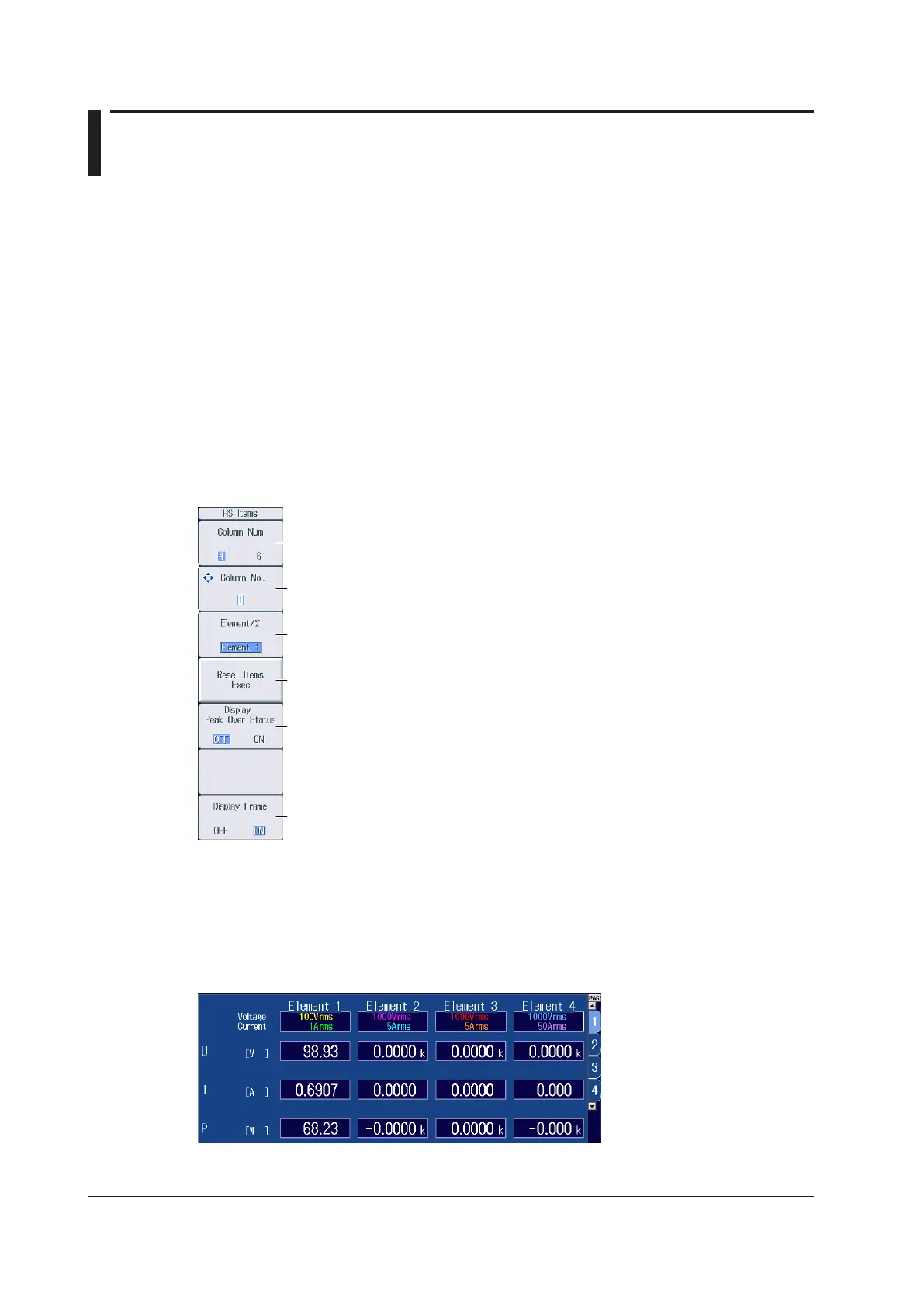

HS Items Menu
2. Press ITEM to display the following menu.
Resets items to the default values
Peak over-range information
Turns the display frame on and off
Set the number of columns (4, 6).
Set the column number (1 to 6).
Set the element or wiring unit (None, Element 1 to Element 6, ΣA to ΣC).
Switching the Page
You can switch between page 1 and 2 (pages 1 to 4 on models with the /MTR or /AUX option). The
items are arranged for high speed data capturing, and the displayed measurement functions are fixed
for every page. For details on how to switch pages, see section 6.2.
Page 1 Example
