1.14 Setting Frequency Filters
This section explains how to set the frequency filter.
► “Frequency Filter (FREQ FILTER)” in the features guide

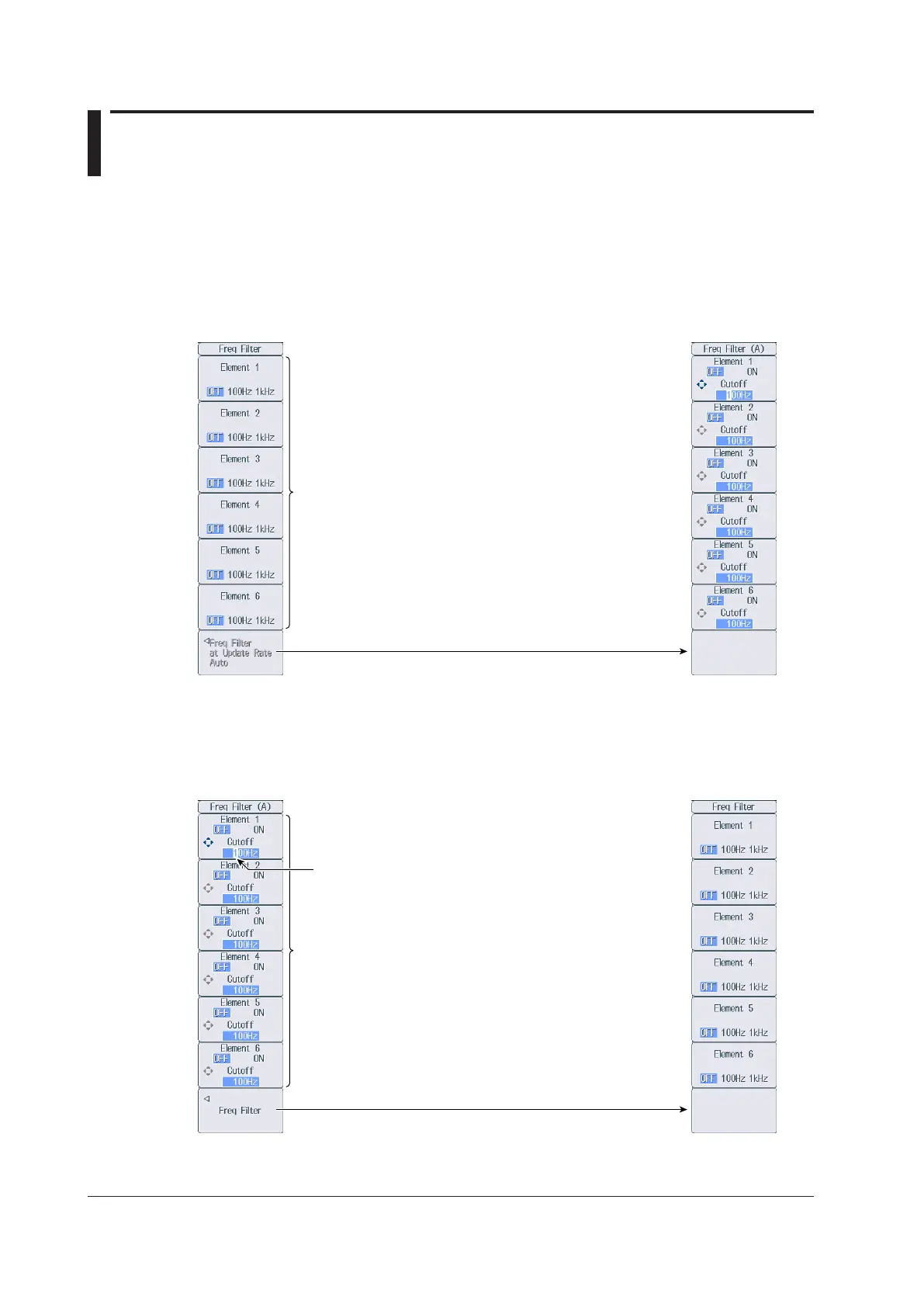

Freq Filter Menu
When the data update interval is not Auto
Press SHIFT+LINE FILTER (FREQ FILTER) to display the following menu.
Set the frequency filter when the data update interval is not Auto.
(OFF, 100Hz, 1kHz).
Displays the frequency filter setup menu* for when the data
update interval is Auto
Freq Filter (A) Menu
When the data update interval is Auto
Press SHIFT+LINE FILTER (FREQ FILTER) and then the Freq Filter at Update Rate Auto soft key to
display the following menu.
Set the frequency filter when the data update interval is Auto.
• Turn the frequency filter on or off.
• Set the cutoff frequency
(100 Hz, 200 Hz, 400 Hz, 800 Hz, 1.6 kHzv, 3.2 kHz,
6.4 kHz, 12.8 kHz, and 25.6 kHz).
Cursor (use the ◄► cursor keys to move it)
Displays the frequency filter setup menu* for when the data
update interval is not Auto
* The menu item is displayed, but the function is invalid.
To Next Page
