Chapter 12 Vector Display (Option)
12.1 Setting the Display Format
This section explains the following settings for the vector display format. This feature is available on
models with the /G5 or /G6 option.
• Number of divisions of the vector screen
• Turning the numeric data display on and off
► “Display Format (FORM)—Vector” in the features guide
Others Menu

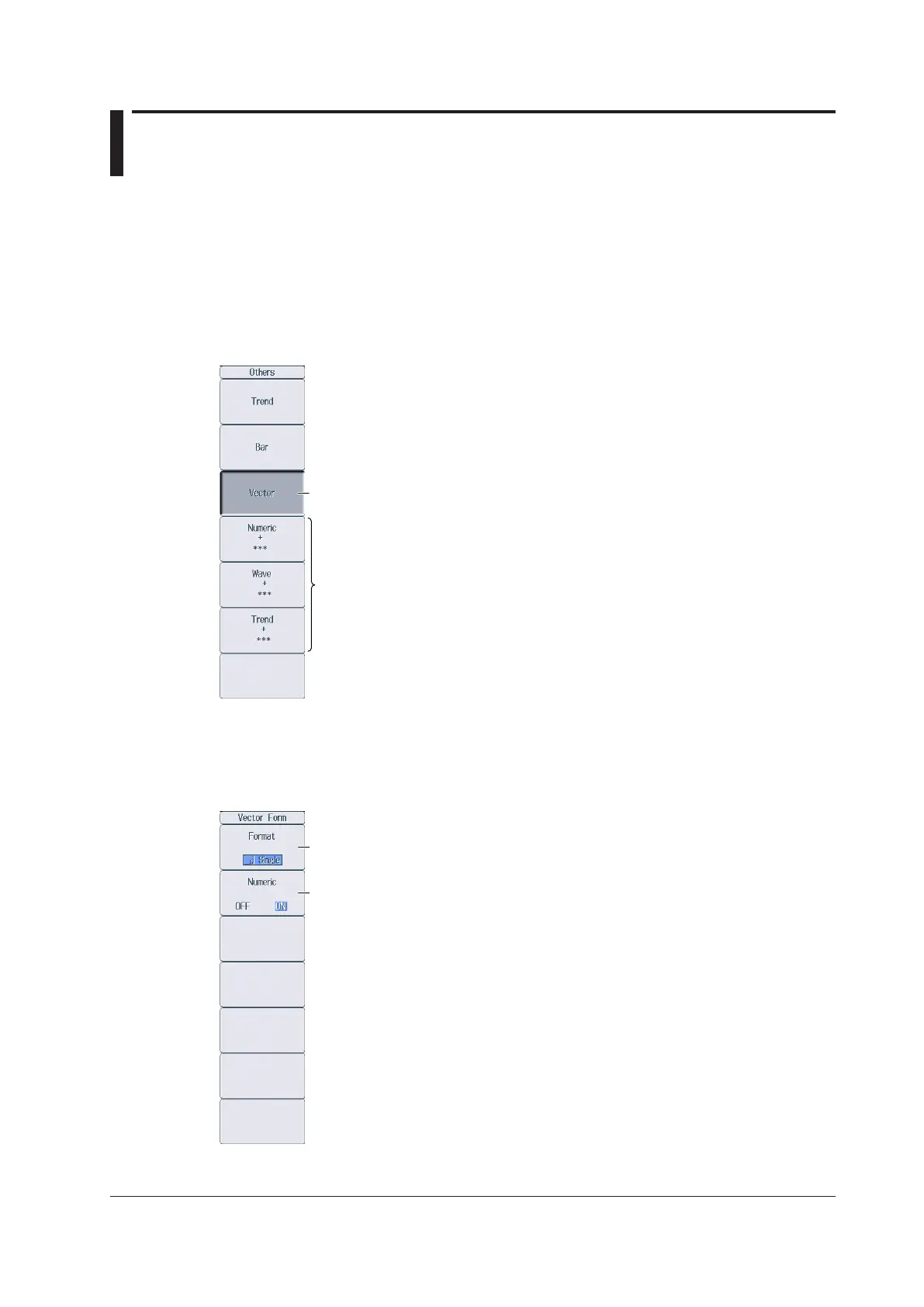

Press OTHERS to display the following menu.
Select Vector.
Even if you select one of these settings, you can still show the vector display. You can split
the screen into top and bottom halves, and show the vector display in one half and another
display in the other half. ► chapter 13
Vector Form Menu
Press FORM to display the following menu.
If the setup parameter list is being displayed (the INPUT INFO key is illuminated), the Info Form menu may
be displayed. If this happens, press FORM again.
Set the number of divisions on the vector screen (Single, Dual).
Turns the numeric data display on and off
To Next Page
