9-2
IM WT18
O
1E-02EN

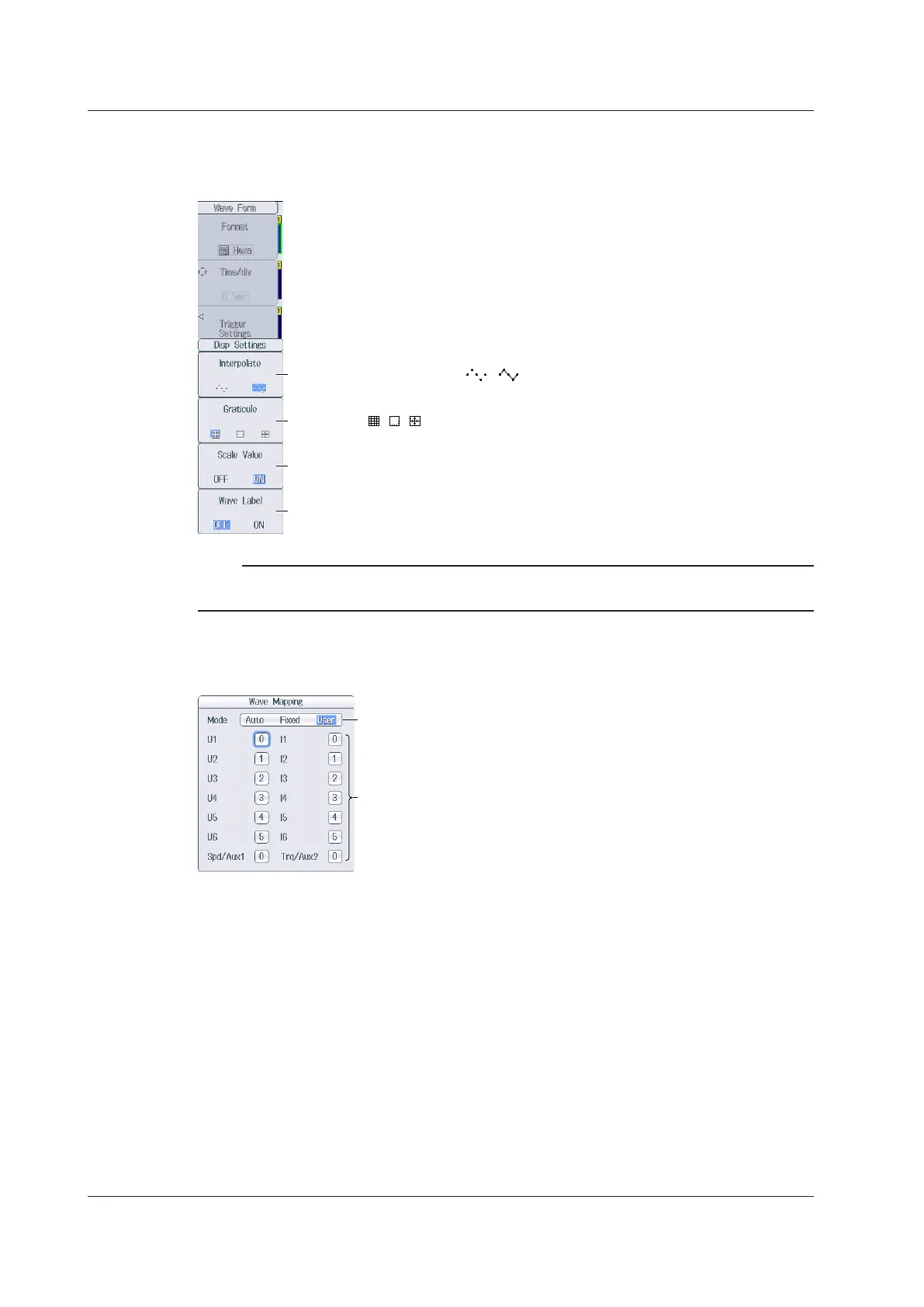

Configuring Advanced Waveform Display Settings (Display
Settings)
Press the Display Settings soft key to display the following menu.
Turns the display of scale values on and off
Set the display interpolation ( , ).
Set the grid ( , , ).
Turns the display of waveform labels on and off
Note
Changes that you make to the waveform display settings on the Display Settings menu are also reflected in
the advanced trend display settings (see section 10.1).
Setting Waveform Mapping (Wave Mapping)
Press the Wave Mapping soft key to display the following screen.
Set the mapping destination (the divided screen number: 0 to 5).
Map each waveform (U1, I1, etc.) to the part of the divided screen that you want it
to appear on.
• These settings are displayed when Mode is set to User.
• Spd/Aux1 and Trq/Aux2 can be set on models with the /MTR or /AUX options.
Select the waveform mapping mode (Auto, Fixed, User).
9.1 Setting the Display Format
To Next Page
