YOKOGAWA WT1801E User Manual

6-11
IM WT18 O 1E-02EN
Function Select Keys and the ELEMENT Key
Follow steps 1 and 2 on page 6-10 to display the List Items menu.
3.
Press ESC to clear the menu.
4.
Use the cursor keys(◄►)toselecttheharmonicorderdataside(therightsideofthescreen).
If you are displaying the dual harmonics list, you can set the left or right column of the harmonic order data,
whichever you have selected.

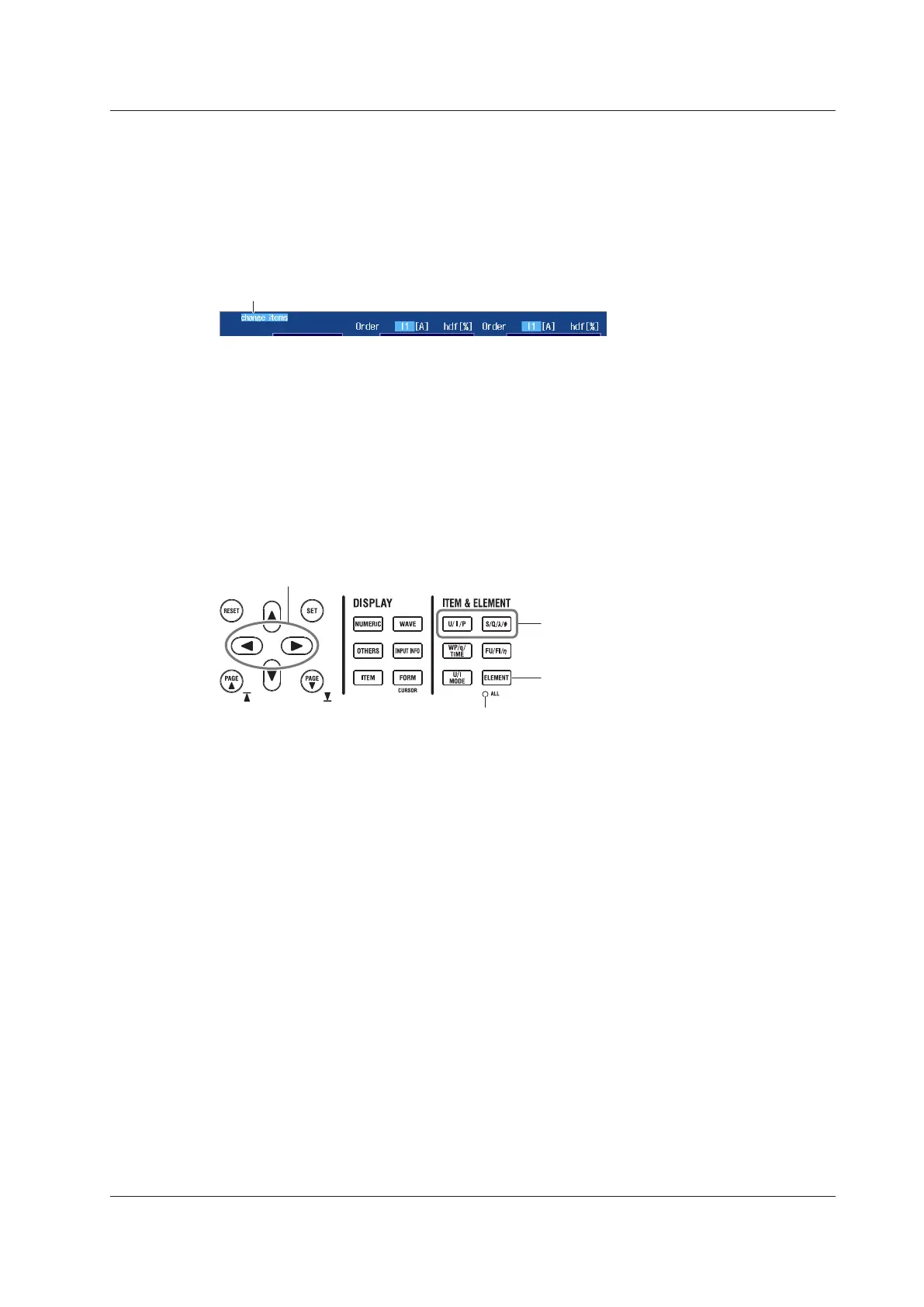

Example of the Single Harmonics List
Displayed in the upper left of the numeric data display screen
5.
Press the function select key that corresponds to the measurement function that you want to
display.
Function select keys: U/I/P key and S/Q/λ/Φ key
(The WP/q/TIME key, FU/FI/η key, and U/I MODE key are disabled.)
6.
Press the ELEMENT key for displaying numeric data to select the element and wiring unit that
you want to display.
• If you are displaying the dual harmonics list, press SHIFT+the ELEMENT (ALL) key for displaying
numeric data to illuminate the indicator below the ELEMENT key and change all elements of the left and
right columns of the harmonic order data to the same element and wiring unit at once.
• Press SHIFT+the ELEMENT (ALL) key for displaying numeric data again to turn the indicator off and
stop setting all elements at once.
ELEMENT key for
displaying numeric data
Function
select keys
Cursor keys (◄►)
Indicator
6.6 Changing the Harmonics List Display (Option)
