Page 4-50 110XiIIIPlus Maintenance Manual 13185L-002 Rev. A 1/24/06
Section 4 Maintenance
Replace the Platen Pulley
4. Refer to RRP No. 1 on page 4-14. Turn the printer Off (O), remove the AC power
cord and data cables.
5. Refer to RRP No. 2 on page 4-16 and remove the electronics cover.
6. Refer to RRP No. 6 on page 4-25 and remove the main drive belt.
Remove and Install the Upper Platen Pulley
1. Refer to Figure 4-29. Loosen the two set screws. Remove the old pulley assembly.

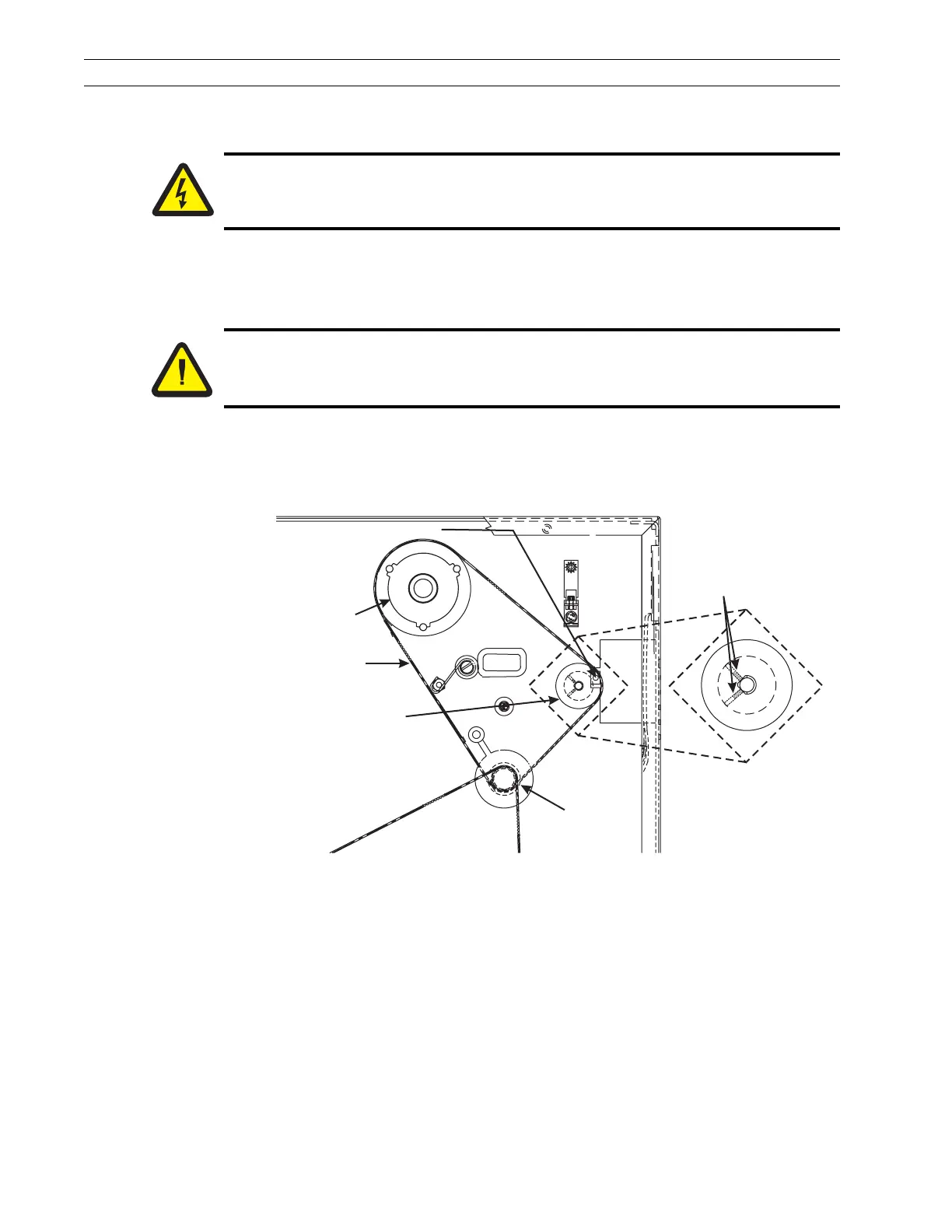

Figure 4-29. Replace the Platen Pulley
2. Install a new platen pulley on shaft aligning the set screws with the flats of the
platen shaft.
3. Tighten the set screws.
4. Reinstall and adjust the tension of main drive belt.
5. Reinstall electronics cover.
6. Reconnect data cables and AC power cord.
7. Turn the printer On (l).
Caution:
Unless indicated otherwise, turn the printer Off (O) and disconnect the printer
from the power source before performing the following maintenance.
Caution:
This installation must be performed by a qualified service technician.
Main Drive Belt
Stepper
Motor
Pulley
Platen Pulley
Assembly
Inside Peel/Tear-Off Bar
Mounting Screw
Ribbon Take-Up
Pulley
Set Screws
To Next Page
