Page 2-6 110XiIIIPlus Maintenance Manual 13185L-002 Rev. A 1/24/06
Section 2 Operations Overview
Front Panel Keys
Refer to Figure 2-4.

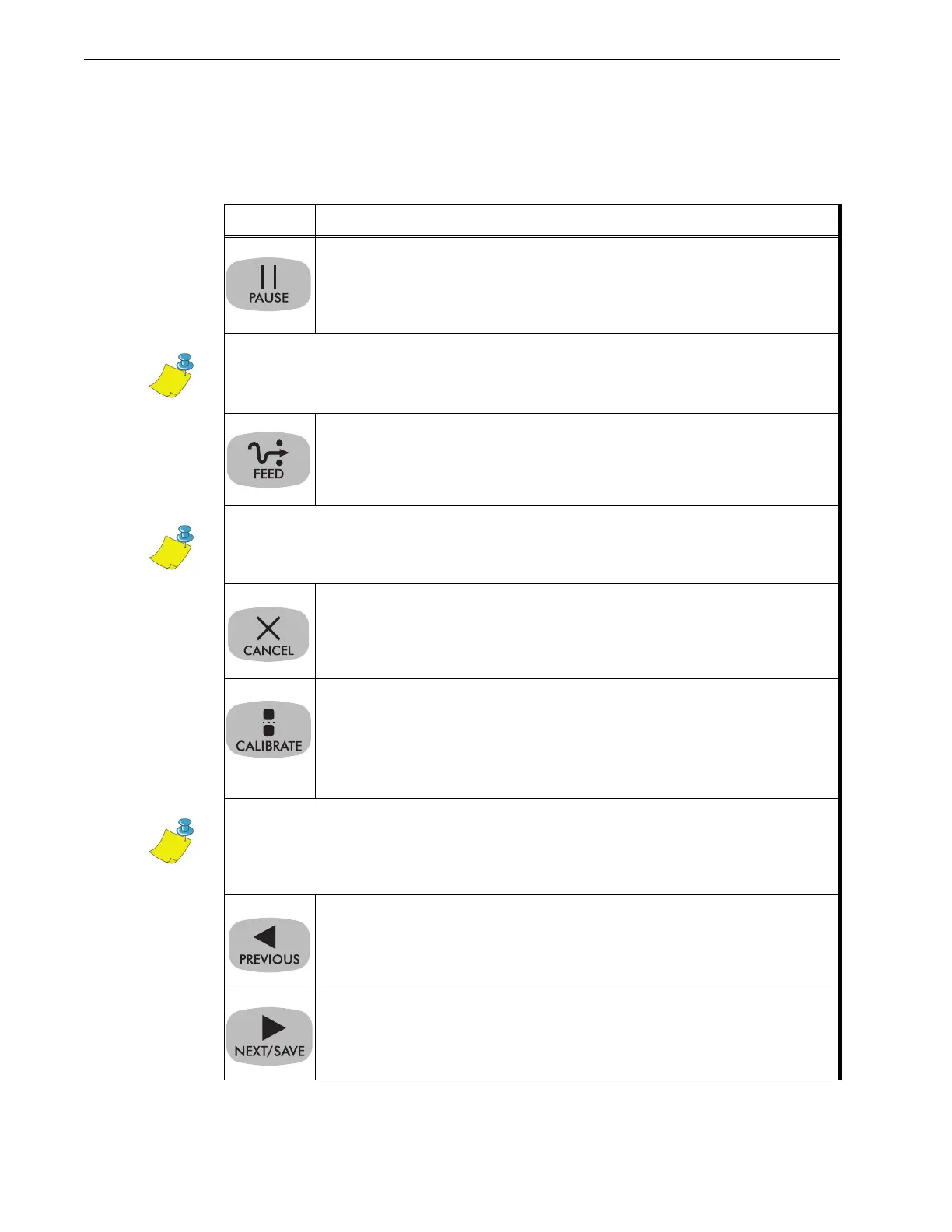

Table 2-1. Front Panel Keys
Key Function
Starts and stops the printing process.
• If the printer is not printing: no printing can occur.
• If the printer is printing: printing stops once the current label is complete.
• Press to remove error messages from the display.
Forces the printer to feed one blank label each time the key is pressed.
• Printer not printing: one blank label immediately feeds.
• Printing: one blank label feeds after the current batch of labels is
complete.
When in Pause Mode, this key cancels print jobs.
• Print job in queue: press once for each print job to be deleted.
• Press and hold for several seconds to cancel all print jobs in the
printer’s memory. The DATA light turns off.
When in Pause Mode, this key calibrates the printer for:
• Media length.
• Media type (continuous or non-continuous).
• Print mode (Direct Thermal or Thermal Transfer).
• Sensor values.
• Scrolls back to previous parameter.
• Press and hold to go backward quickly through parameter sets.
• Scrolls forward to the next parameter. Saves any changes made in the
configuration and calibration sequence.
• Press and hold to advance quickly through parameter sets.
Note • Pause Mode can also be activated via ZPL II (~PP, ^PP).
Note • Equivalent to the Slew to Home Position (~PH, ^PH) ZPL II instruction.
Note • The following keys are used only when configuring the printer. Specific
uses of these keys are explained in the Configuration section of the
Users Guide.
