13185L-002 Rev. A 1/24/06 110XiIIIPlus Maintenance Manual Page 1-11
System Description Section 1
Serial Data Port

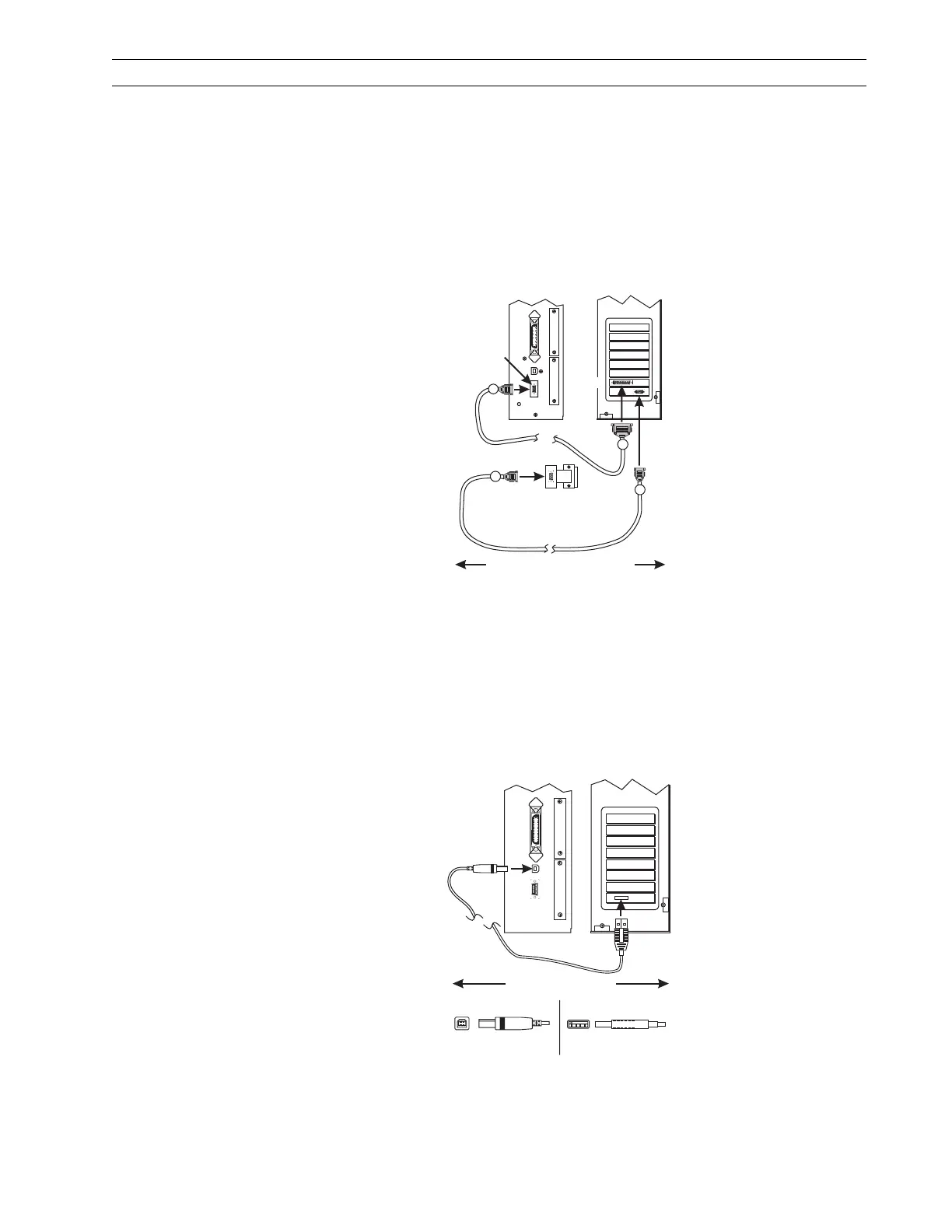

Refer to Figure 1-6.
When communicating via an asynchronous serial data port, the baud rate, number of data,
parity, and handshaking are user-selectable. Parity applies only to data transmitted by the
printer because the parity of received data is ignored. The values selected must be the
same as those used by the host equipment connected to the printer.
Figure 1-6. Serial Data Port
USB 2.0 Port
In addition to serial and parallel data ports, a USB 2.0 port (which is USB 1.1- and
1.0-compatible) is available to connect your printer to the host equipment. The industry
standard USB cable has an A-male connector on one end and a B-male connector on the
other end (see Figure 1-7). Zebra recommends using a USB 2.0-certified compliant cable
that is a maximum of 15 ft. (5 m) in length (Zebra part number 33011).
Figure 1-7. USB Port
25
9
9
9
Null modem adapter
(if using a standard
modem cable)
Male
50 ft. (15 m) maximum
Female
Computer
Printer
Male
Female
A
Male
ComputerPrinter
B
Male
B Male
A Male
15 ft. maximum
