Page 3-6 110XiIIIPlus Maintenance Manual 13185L-002 Rev. A 1/24/06
Section 3 Troubleshooting
Feed and Pause Key Self Test
To reset the printer configuration temporarily to the factory default values, press and hold
FEED and PAUSE while turning the printer On (l). The factory default values are active
until the printer is turned Off (O). If factory default values are saved during configuration,
a media calibration procedure must be performed and some parameters must be
reconfigured. Refer to the Users Guide for more details.
Pause and Cancel Key Self Test
Refer to Figure 3-4. This self test can be used to verify proper printer operation after parts
have been replaced or adjusted. When activated, a maximum of 500 head test labels print.
A serialized number prints on each label. Press PAUSE or turn the printer Off (O) to stop
printing.

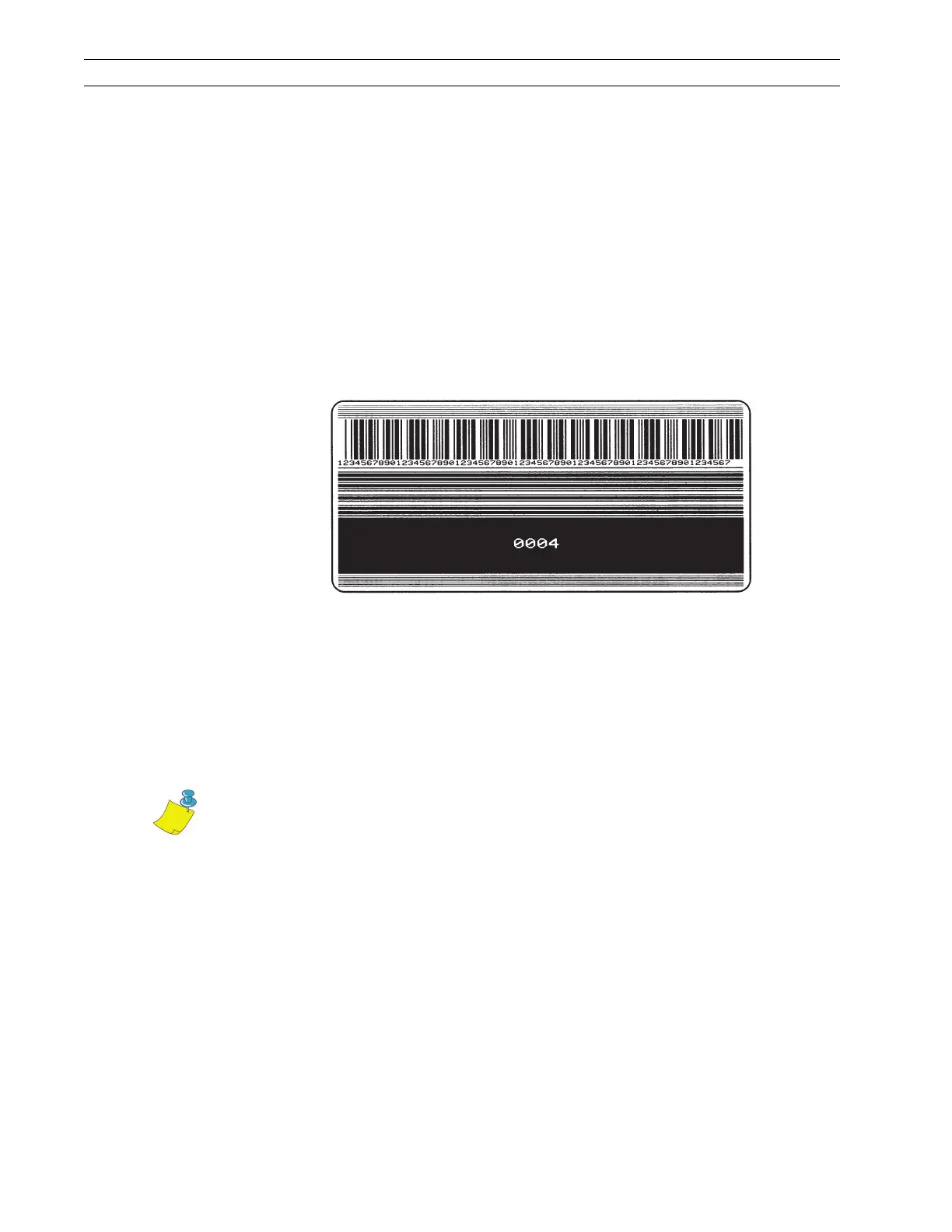

Figure 3-4. Pause and Cancel Key Self Test Label
Feed and Cancel Key Self Test
This self test is normally performed during the manufacturing process or after a major
overhaul of the mechanical assemblies. This test prints seven preprogramming label
formats at speeds of 6 ips and 2 ips. The printer pauses after each format. The sequence of
label formats is shown in Table 3-2. Refer to Figures 3-8 through 3-14 for sample labels.
Note • Disregard the speed for the sample labels.
