Section 2 Operations Overview
Network ID
Use Network ID to assign a unique number to a printer used in an RS-422/RS-485
network. This gives the host the means to address a specific printer. This does not affect
TCP/IP or IPX networks.
Press the left oval key to move to the next digit position, and press the right oval key to
increase the value of the selected digit.
Press NEXT/SAVE to display COMMUNICATIONS.
Communications Mode
The Communication Diagnostics Mode is a tool to check the interconnection between the
printer and the host. When DIAGNOSTICS is selected, all data sent from the host to the
printer is printed as an ASCII hex printout. The printer prints all ASCII characters
received, including ASCII control codes (for example, CR Carriage Return). Figure 2-19
shows a sample printout.

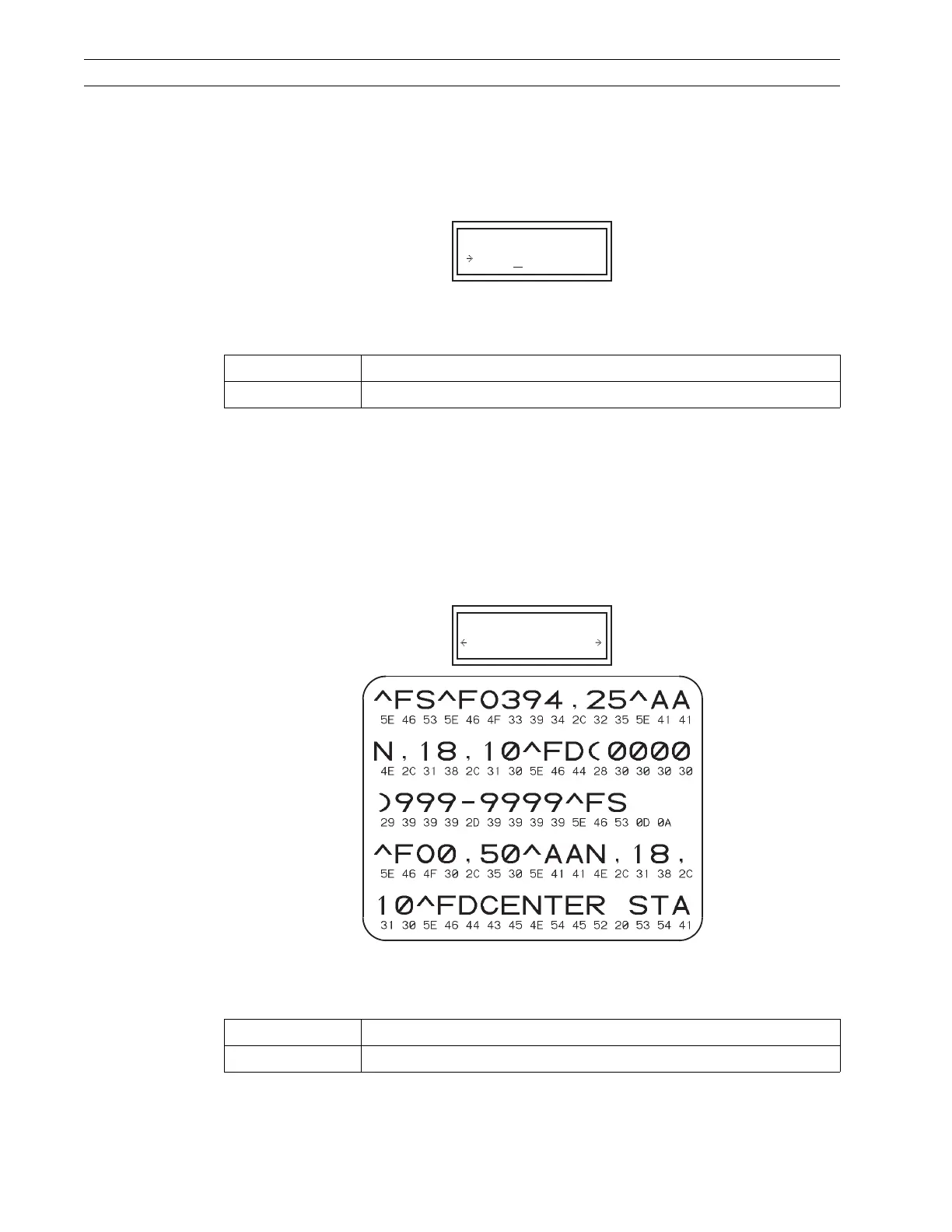

Figure 2-19. Diagnostics Sample Label
Press the right or left oval key to display other selections.
Default: 000
Selections: 000–999
Default: Normal Mode
Selections: Normal Mode, Diagnostics
NETWORK ID
00 +0
COMMUNICATIONS
NORMAL MODE
