Page 2-8 110XiIIIPlus Maintenance Manual 13185L-002 Rev. A 1/24/06
Section 2 Operations Overview
Front Panel Lights
Refer to Figure 2-5.
Note • If two operating conditions occur simultaneously (for example, one that
causes a light to be on constantly and one that causes the same light to flash),
the light flashes.

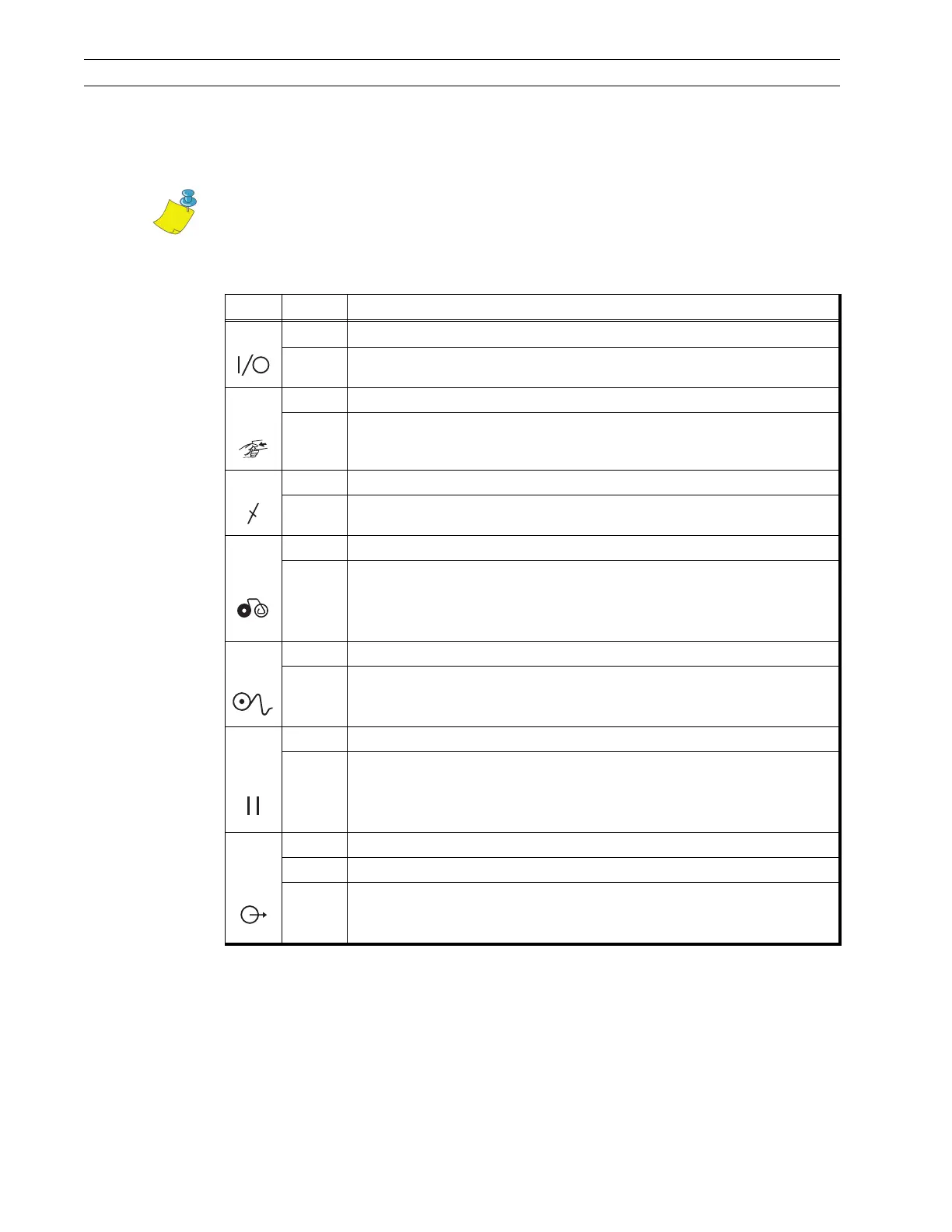

Table 2-2. Front Panel Lights
Light Status Indication
Power
Off
The printer is Off (O) or power is not applied.
On
The printer is On (l).
Take
Label
Off Normal operation.
Flashing
(Peel-Off Mode only.) The label is available. Printing is paused until the
label is removed.
Error
Off Normal operation — no printer errors.
Flashing A printer error exists. Check the display screen for more information.
Check
Ribbon
Off Normal operation — ribbon (if used) is properly loaded.
On
Printing is paused, the front panel displays a warning message, and the
Pause light is On.
If the printer is in Direct Thermal Mode: Ribbon is loaded.
If the printer is in Thermal Transfer Mode: No ribbon is loaded.
Paper
Out
Off Normal operation — media is properly loaded.
On
No media is under the media sensor. Printing is paused, the display
shows an error message, and the Pause light is On.
Pause
Off Normal operation.
On
The printer has stopped all printing operations. PAUSE was pressed, a
pause command was included in the label format, the online verifier
detected an error, or a printer error was detected. Refer to the display
screen for more information.
Data
Off Normal operation. No data is being received or processed.
On Data processing or printing is taking place. No data is being received.
Flashing
The printer is receiving data from or sending status information to the
host computer. Flashing slows when the printer cannot accept more
data, but returns to normal once data is again being received.
