Page 2-18 110XiIIIPlus Maintenance Manual 13185L-002 Rev. A 1/24/06
Section 2 Operations Overview
Position Media Sensors
Transmissive Sensor
The web or gap sensor, better known as the transmissive sensor, detects the gap or hole/
notch between labels.
The transmissive sensor consists of two parts: a light source (the lower media sensor) and
a light sensor (the upper media sensor). The media passes between the two.
The upper media sensor must be positioned:
• Directly over the hole or notch, or
• Anywhere along the width of the media if there is a gap between labels.

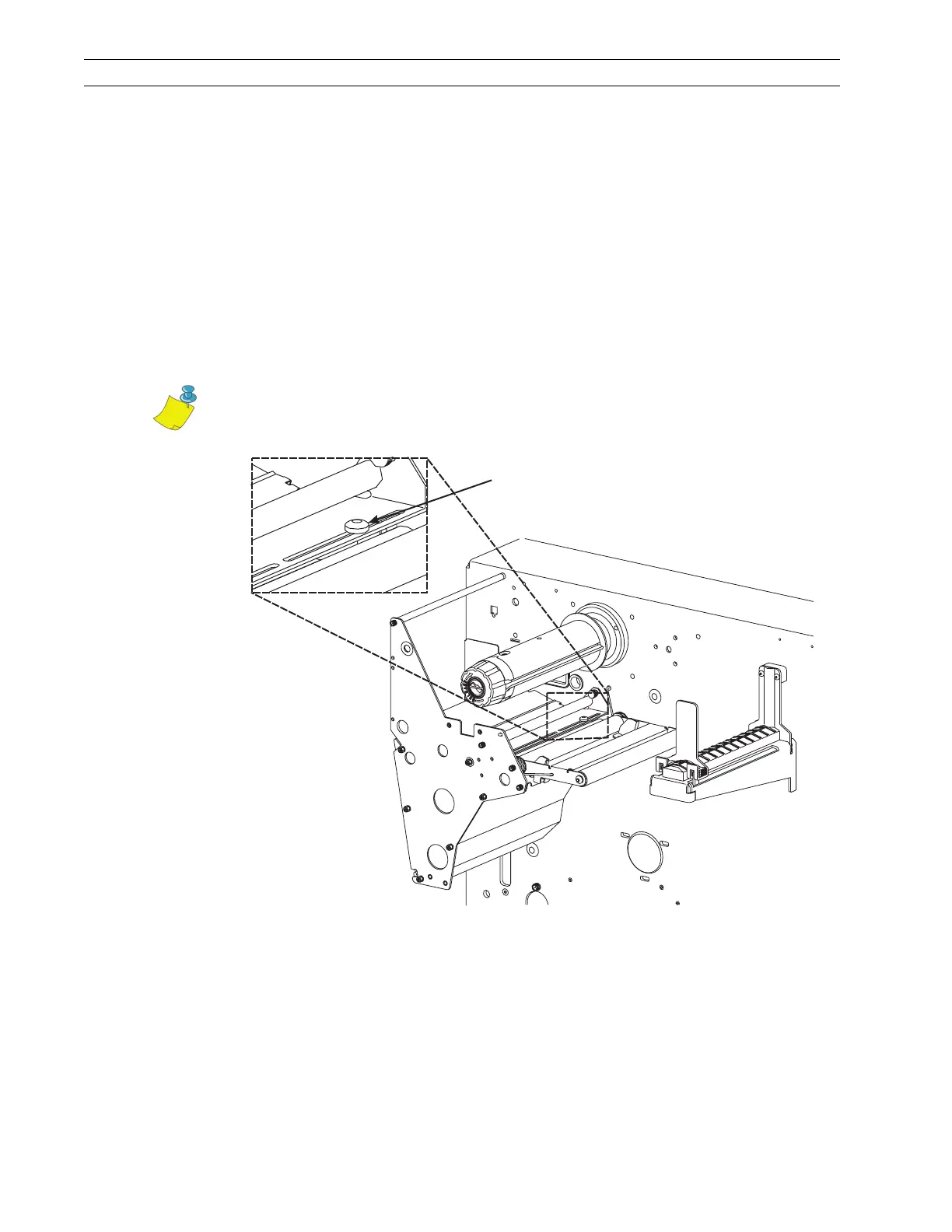

Figure 2-15. Upper Media Sensor
Note • If you are using continuous media, position the upper media sensor over
the media to detect an out-of-paper condition.
Upper Media Sensor
Adjustment
To Next Page
