13185L-002 Rev. A 1/24/06 110XiIIIPlus Maintenance Manual Page 5-21
Maintenance and Assembly Drawings Section 5
Table 5-9. Ribbon Take-Up Spindle

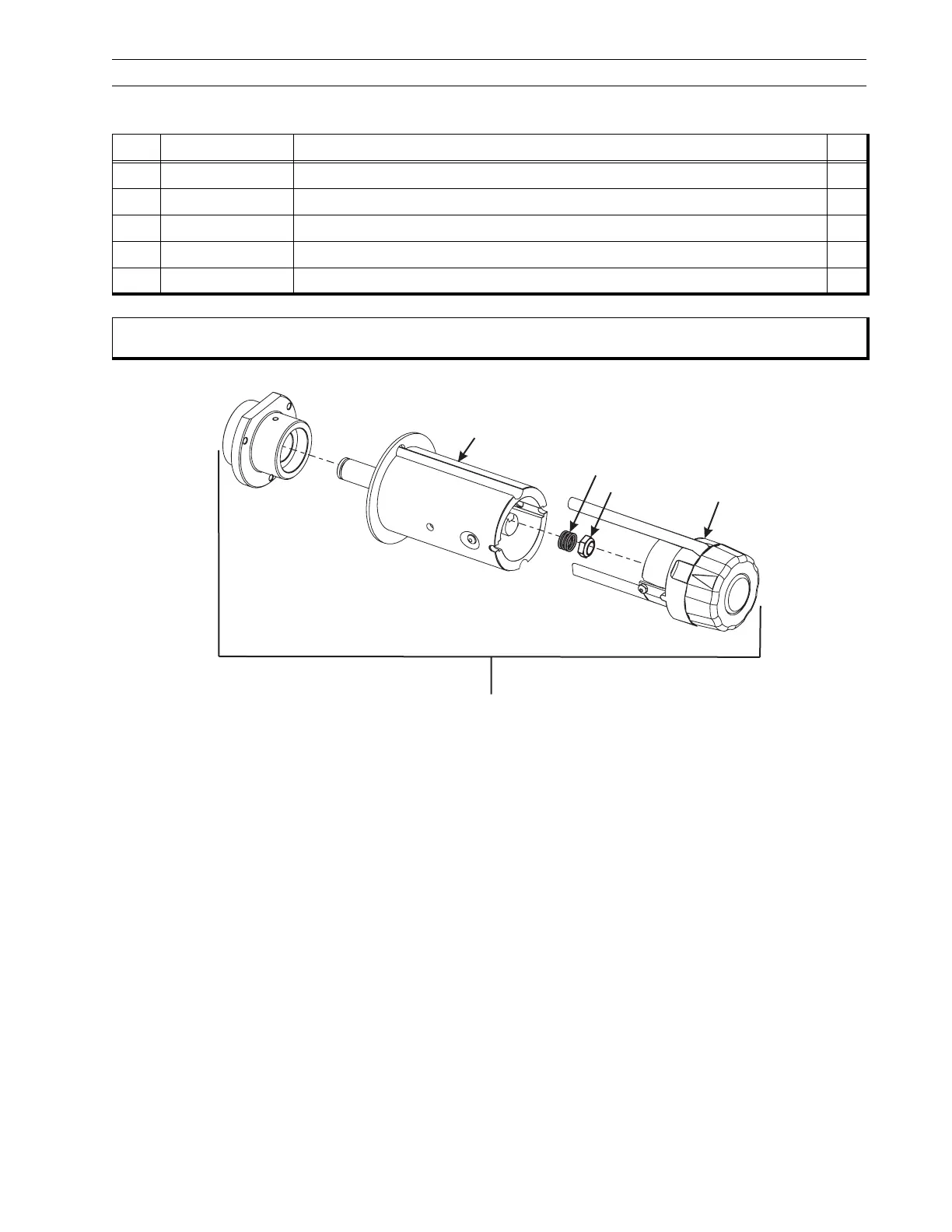

Figure 5-9. Ribbon Take-Up Spindle Assembly
Item Part Number Description Qty
1 46350 Enhanced RTU Upgrade Kit 1
2 48251M Spindle and Clutch Assembly Kit 1
3 47276 Compression Spring 1
4 46397-500 Thin Hex Nut Locking 1
5 48251-2M End Cap and Release Bar Maintenance Kit 1
Bold=Part available for purchase
Italic=
Part not available for purchase, listed and shown for reference only
1
2
3
4
5
