Operating the motorized microscope via the touchscreen of the TFT display
134 430000-7544-001 01/2016
Stage lowering
The stage lowering function is activated or
deactivated using the On and Off buttons.
The lowering depth can be set in 1 mm steps using
the ◄► buttons in a range of values between 1
mm and 20 mm. To run the configuration
procedure, press the Save button. To abort the
procedure, press the Cancel button.
Software limit (Focus delimiter)
The motorized stands of the second generation
Axio Imager 2 are equipped with a software focus
limiter which can be set by users. They can be
globally switched On or Off here.
Once the software limit function is active, the
focus delimiter can also be set and altered using
the Work / Load buttons on the stand.
− To set the focus limit:
Keep the upper button depressed for more than
3 seconds. (A beep will sound as
acknowledgment.)
− To shift the focus limit:
Keep the upper button depressed for more than
3 seconds (a beep will sound as
acknowledgment) while moving the focus to
the new position. When the button is released,
the current focus position will be saved and
acknowledged by a message appearing on the
TFT.
− To delete the focus limit:
Press the Off button on the TFT.

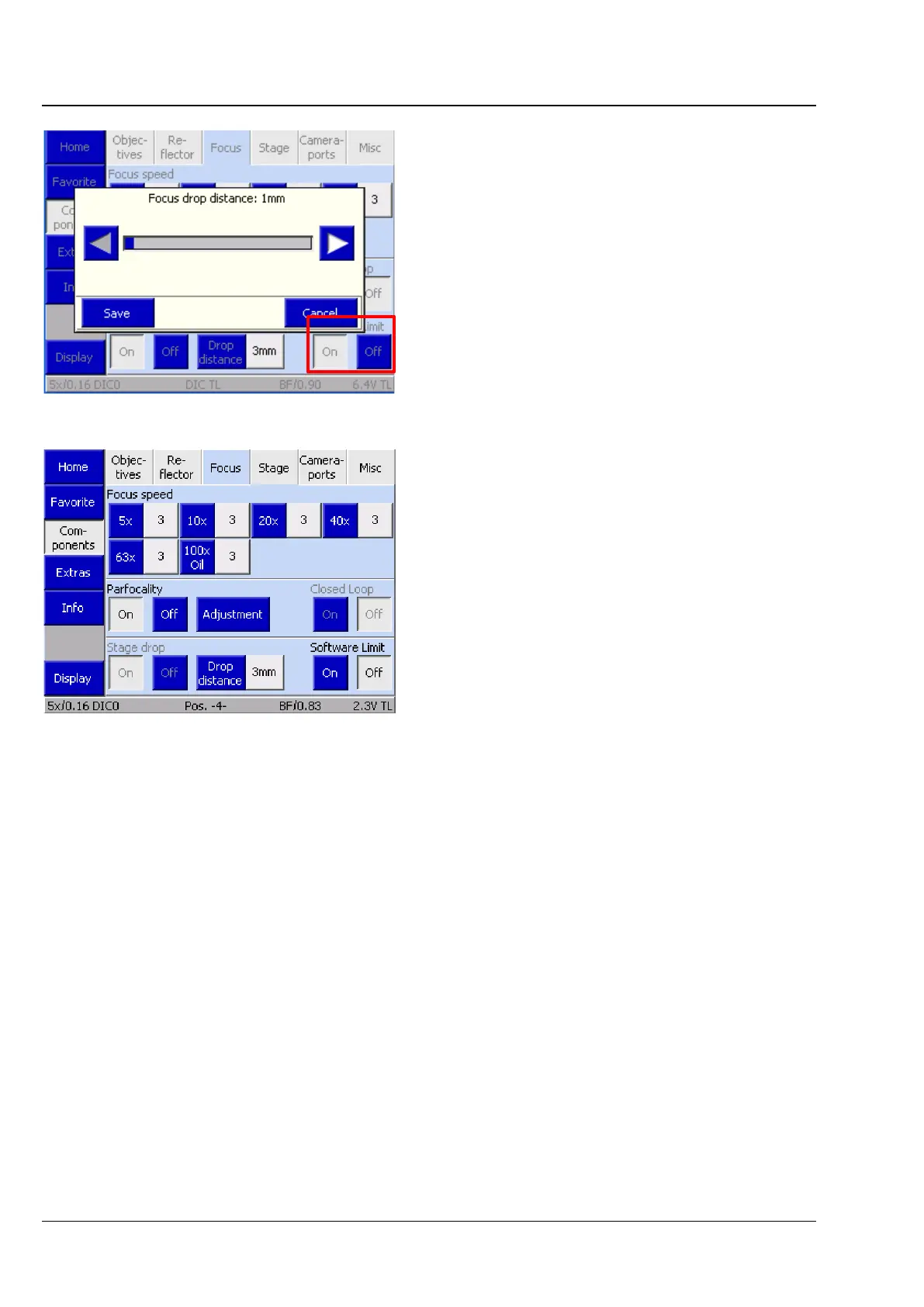

Fig. 141 Stage lowering
Fig. 142 Focus delimiter
