ZEISS OPERATION Axio Imager 2
Operating the motorized microscope via the touchscreen of the TFT display
138 430000-7544-001 01/2016
(6) Miscellaneous tab
This tab is used to configure other optional
components of transmitted-light and reflected-
light illumination.
− Illumination TL
− Illumination RL
− Motorized DIC turret
− Manual condenser
− Field of view of eyepieces
− Tube lens turret
− Reflected-light configuration
Illumination TL
The light source to be employed for transmitted
light must be specified here. An optional switching
mirror for two illuminators may also be used. The
appropriate check box must be ticked for this.

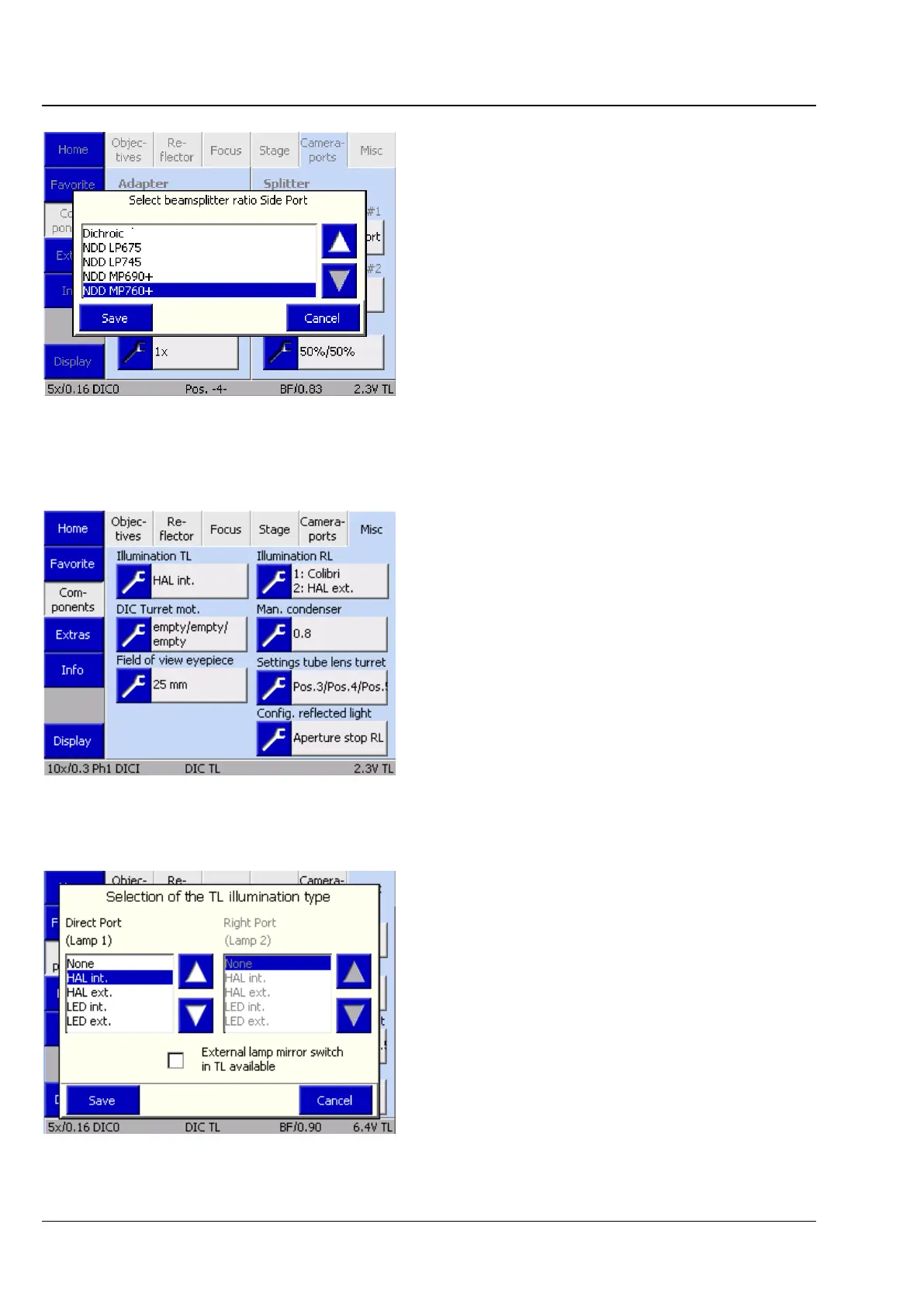

Fig. 151 Select splitting ratio - Splitter
decflection plane - cont.
Fig. 152 Microscope -> Config ->
Components -> Misc(ellaneous)
