Operating the motorized microscope via the touchscreen of the TFT display
01/2016 430000-7544-001 137
Splitter
Up to three buttons are displayed here depending
on the equipment of the camera path deflection
and the tube used. The status of the ports is
detected by the system during initialization (and on
opening the Settings - Components page).
• To select a splitting ratio, press the gray button.
This will bring up the Select Splitting Ratio
list.
• Press the buttons for the desired splitting ratio;
multiple selections are possible.
• Press the Save button to store the selected
splitting ratio. Press the Cancel button to close
the window without any selection.
The button is now labeled with the splitting ratio.
Proceed in the same way for the other ports.
The configured splitting ratios will then
be offered for selection on the Light
Path tab of the Microscope -
Operation page.
Possible ratios:
− 100 % tube
− 100 % side port
− 50 % / 50 %
− Dichroic
− NDD LP675
− NDD LP745
− *NDD_MP690P*
− *NDD_MP760P*

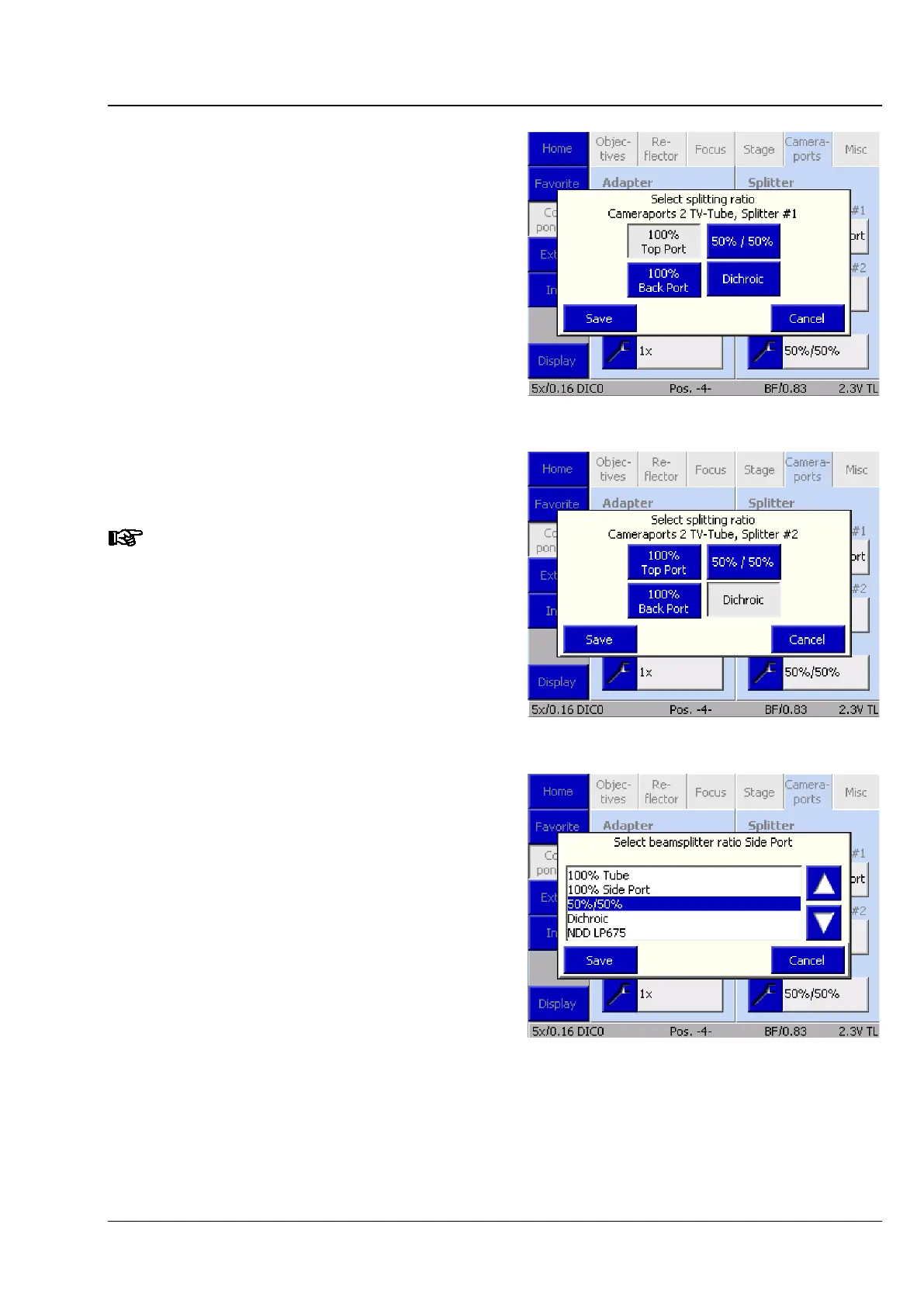

Fig. 148 Selecting splitting ratio - Splitter 1
Fig. 149 Selecting splitting ratio - Splitter 2
Fig. 150 Selecting splitting ratio - Side Port
